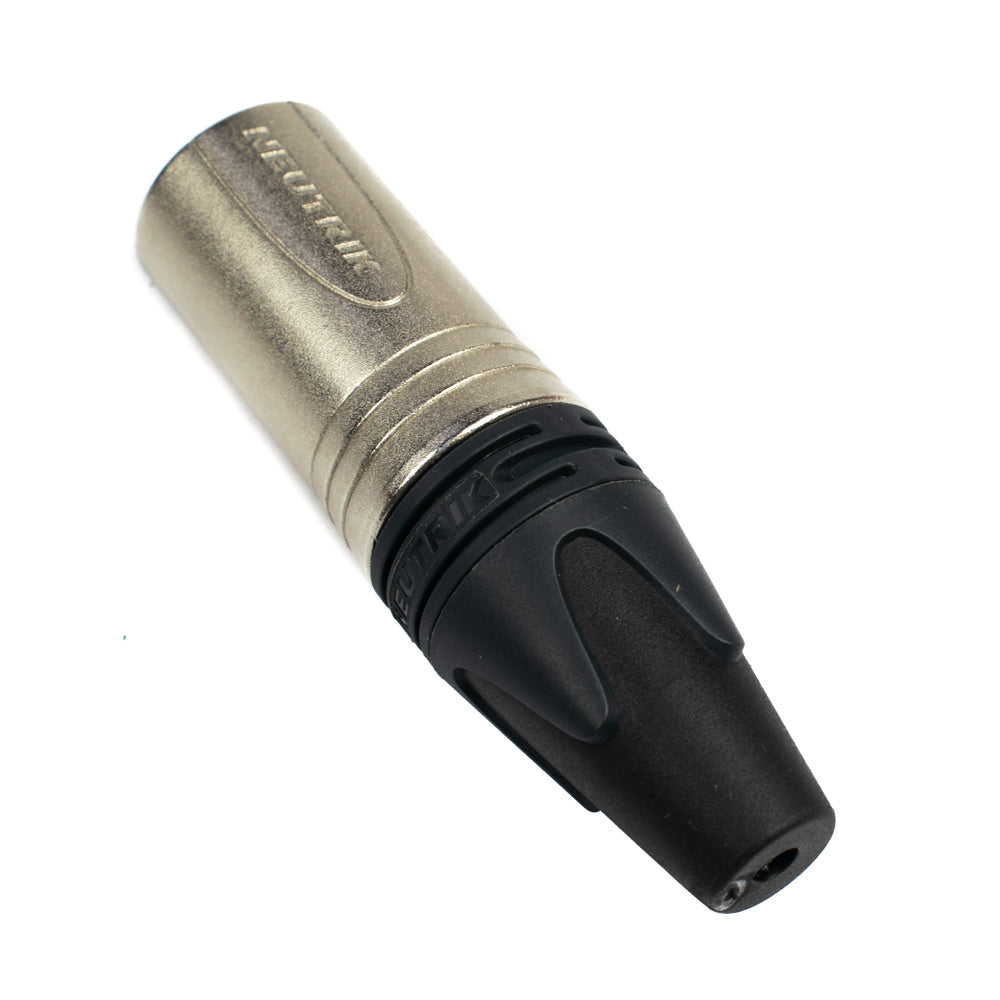

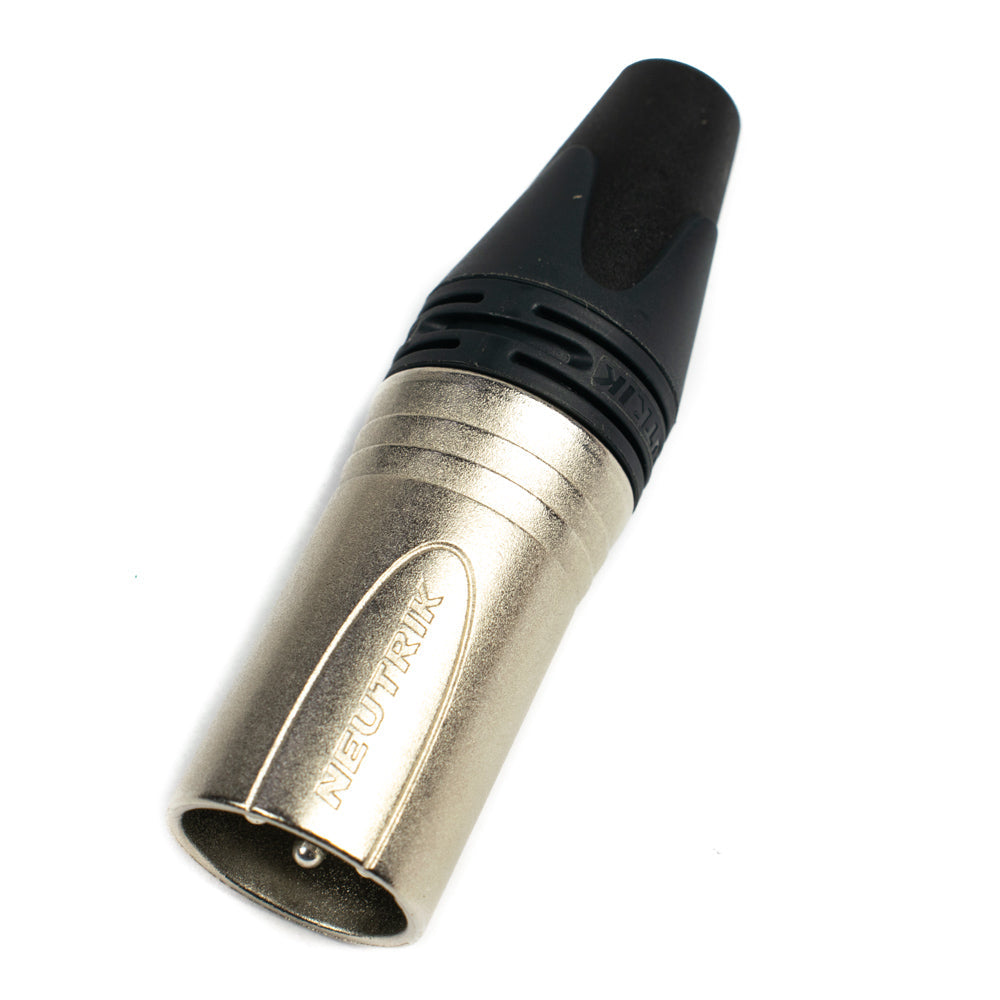

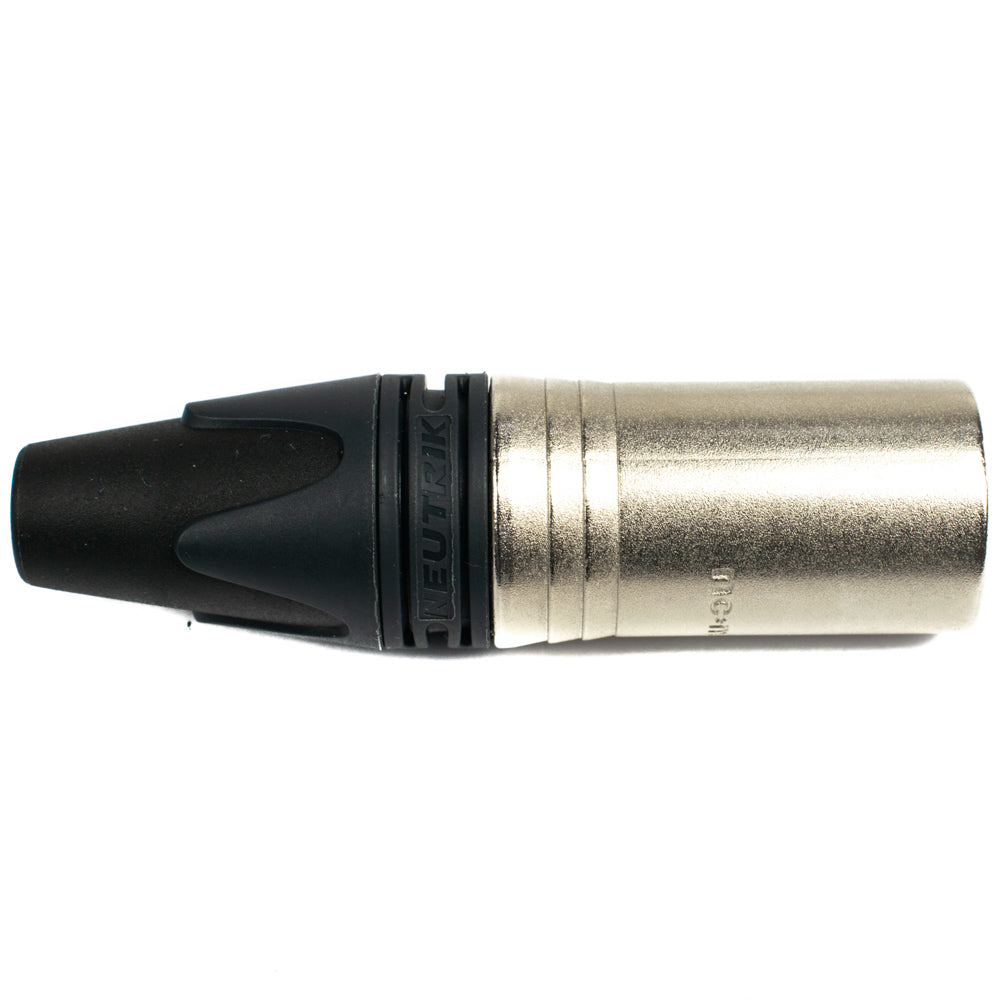

Neutrik NC3MXX 3 Pole Male XLR Cable Connector
Neutrik NC3MXX 3 Pole Male XLR Cable Connector
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
3 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long-lasting and dependable
- The internal thread on the shell is well protected against any damage
Specifications
| Model | NC3MXX |
| Connection Type | XLR |
| Capacitance Between Contacts | ≤4pF |
| Contact Resistance | ≤3mΩ |
| Dielectric Strength | 1.5kV DC |
| Insulation Resistance | >10GΩ |
| Rated Current per Contact | 16A |
| Rated Voltage | <50V DC |
| Size | 70x20.4mm |
| Cable Outer Diameter | 3.5-8.0mm |
| Insertion Force | ≤20N |
| Withdrawal Force | ≤20N |
| Lifetime | >1000 Mating Cycles |
| Wire Size | 2.5 Sq.mm (14 AWG) |
| Locking Device | Latch Lock |
| Boot Material | Polyurethan |
| Operating Temperature | -30°C to 80°C |
| Country of Origin | China |
