NEO GPS Module with EEPROM

NEO GPS Module with EEPROM

First Come First Serve Offer (T&C Apply )

832.02
1,150.00 832.02
Sale Sold out
Shipping calculated at checkout.
Model

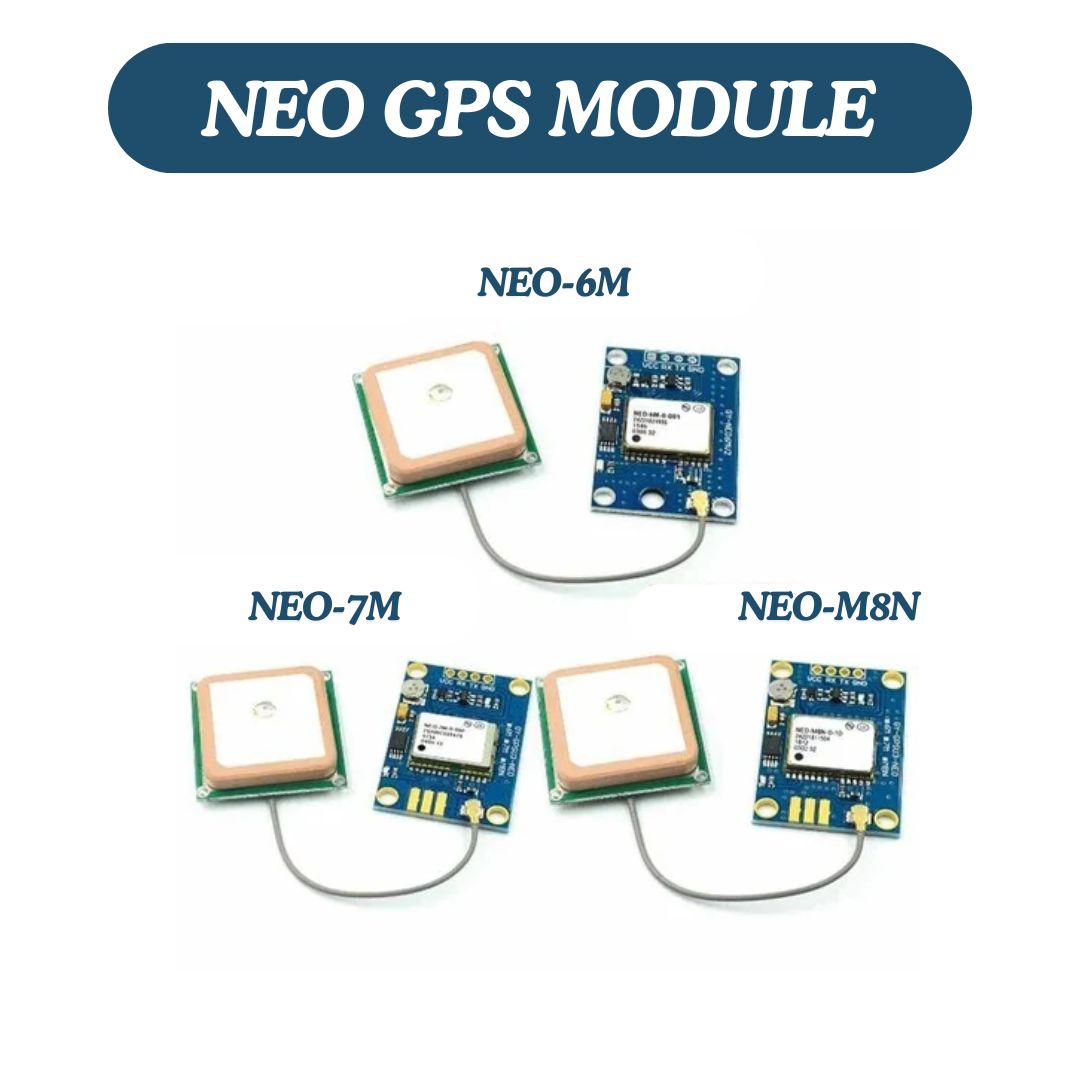

GPS Modules | Part of u-Blox's Family of GPS Receivers | NEO-M8N | NEO-7M | NEO-6M

  • NEO-M6: This module provides standard GPS functionality and is known for its reliable performance. It's suited for applications that need basic GPS positioning.

  • NEO-M7: This module offers improved performance over the M6, with better sensitivity and faster time-to-first-fix. It supports both GPS and GLONASS satellites, which can enhance accuracy and reliability.

  • NEO-M8: This module represents a significant upgrade, featuring support for multiple GNSS systems (GPS, GLONASS, Galileo, and BeiDou), which can provide even better positioning accuracy and reliability. It also includes advanced features like high-precision timekeeping and improved power efficiency.

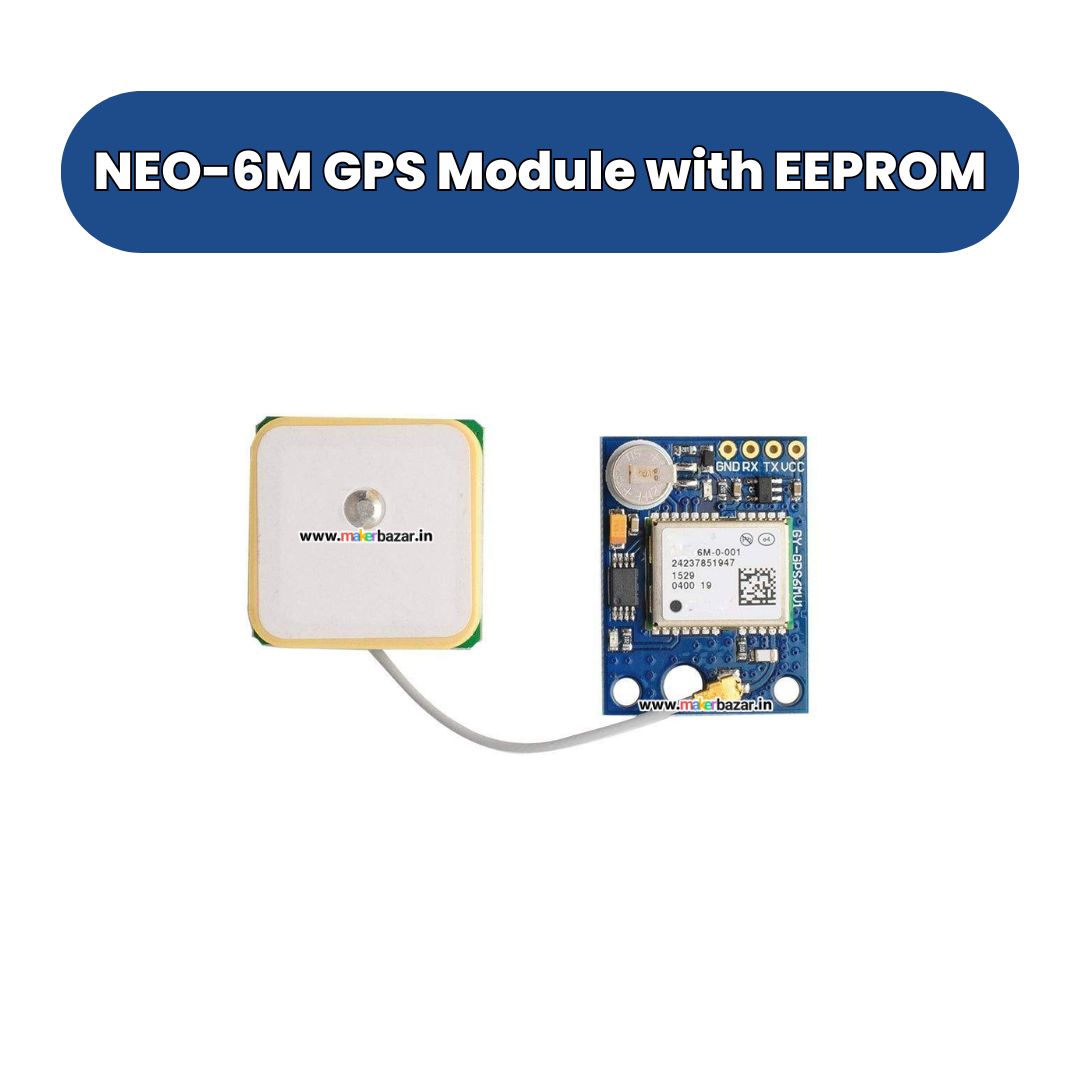

NEO-6M GPS Module with EEPROM

  • Technology: Based on the u-blox NEO-6M chipset, providing reliable GPS positioning.
  • Antenna: Comes with an external GPS antenna and a UFL connector for flexible mounting.
  • Battery: Includes a rechargeable Li-ion battery for backup, allowing for hot starts and quick GPS lock.
  • Performance:
    • Position Update Rate: 5 Hz
    • Cold Start Time: 38 seconds
    • Hot Start Time: 1 second
  • Sensitivity: High sensitivity suitable for indoor use and mobile applications.
  • Output: Provides a high-precision binary output.
  • SBAS Support: Compatible with WAAS, EGNOS, MSAS, and GAGAN for improved accuracy.
  • Connections:
    • Vcc: Input Voltage Supply (3.3V)
    • Gnd: Ground
    • RX/TX: Serial TTL pins for communication
    • UFL Connector: For connecting the GPS antenna.

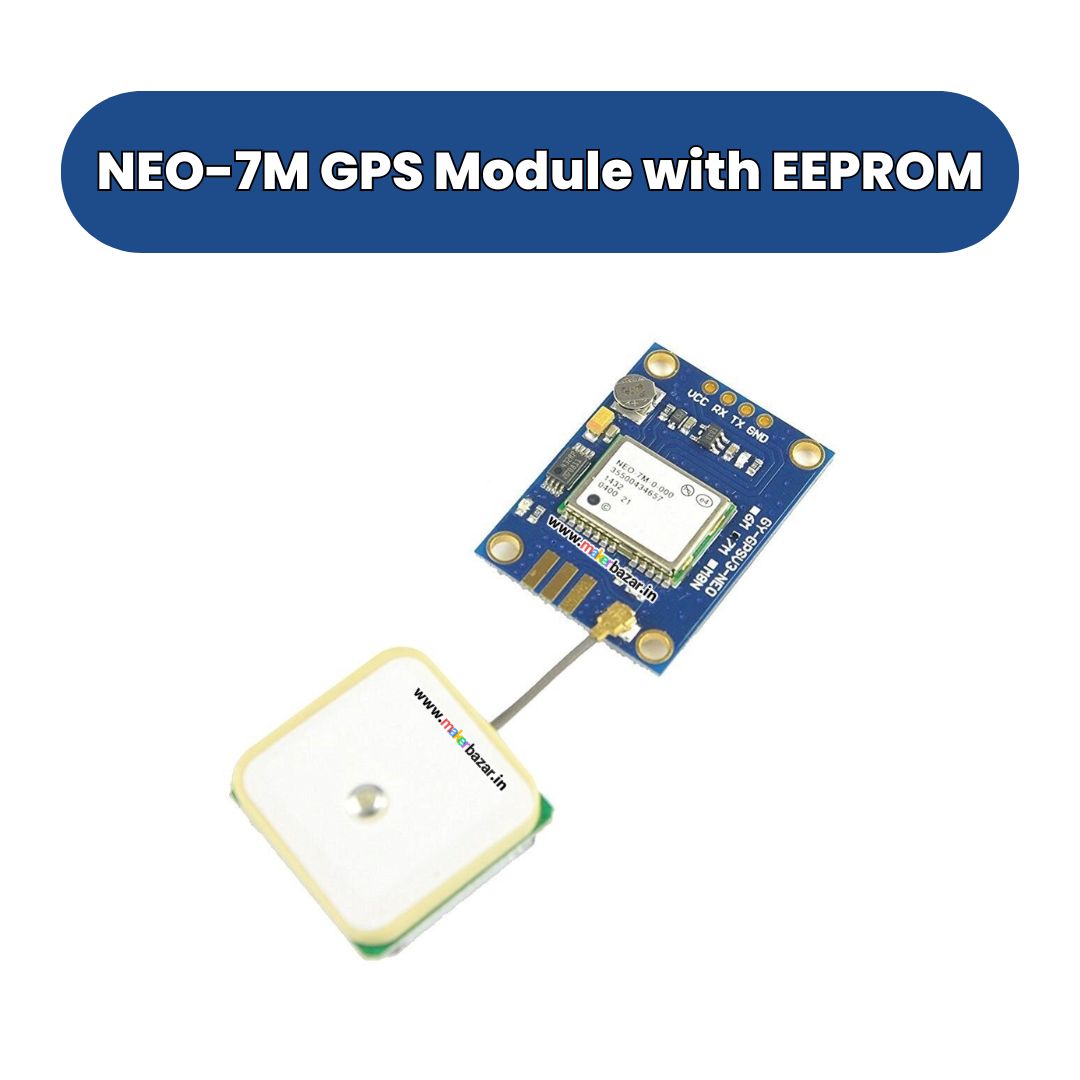

NEO-7M GPS Module with EEPROM

  • Sensitivity: Excellent sensitivity with -160 dBm.
  • Receiver Type: Standalone GPS receiver with 50 channels.
  • Anti-Jamming: Includes anti-jamming technology for better performance in challenging environments.
  • Interface: UART interface at the output pins; SPI, I2C, and USB can be used by soldering pins to the chip core.
  • Time-To-First-Fix:
    • Cold Start: 32 seconds
    • Warm Start: 23 seconds
    • Hot Start: Less than 1 second
  • Update Rate: Maximum navigation update rate of 5 Hz.
  • Default Baud Rate: 9600 bps.
  • EEPROM: Includes EEPROM with battery backup for saving configuration settings.
  • Power Supply: 3.6V.
  • Current: Maximum DC current at any output is 10mA.
  • Operational Limits:
    • Gravity: Up to 4g.
    • Altitude: Up to 50,000 meters.
    • Velocity: Up to 500 m/s.
  • Temperature Range: Operating temperature range from -40°C to 85°C.

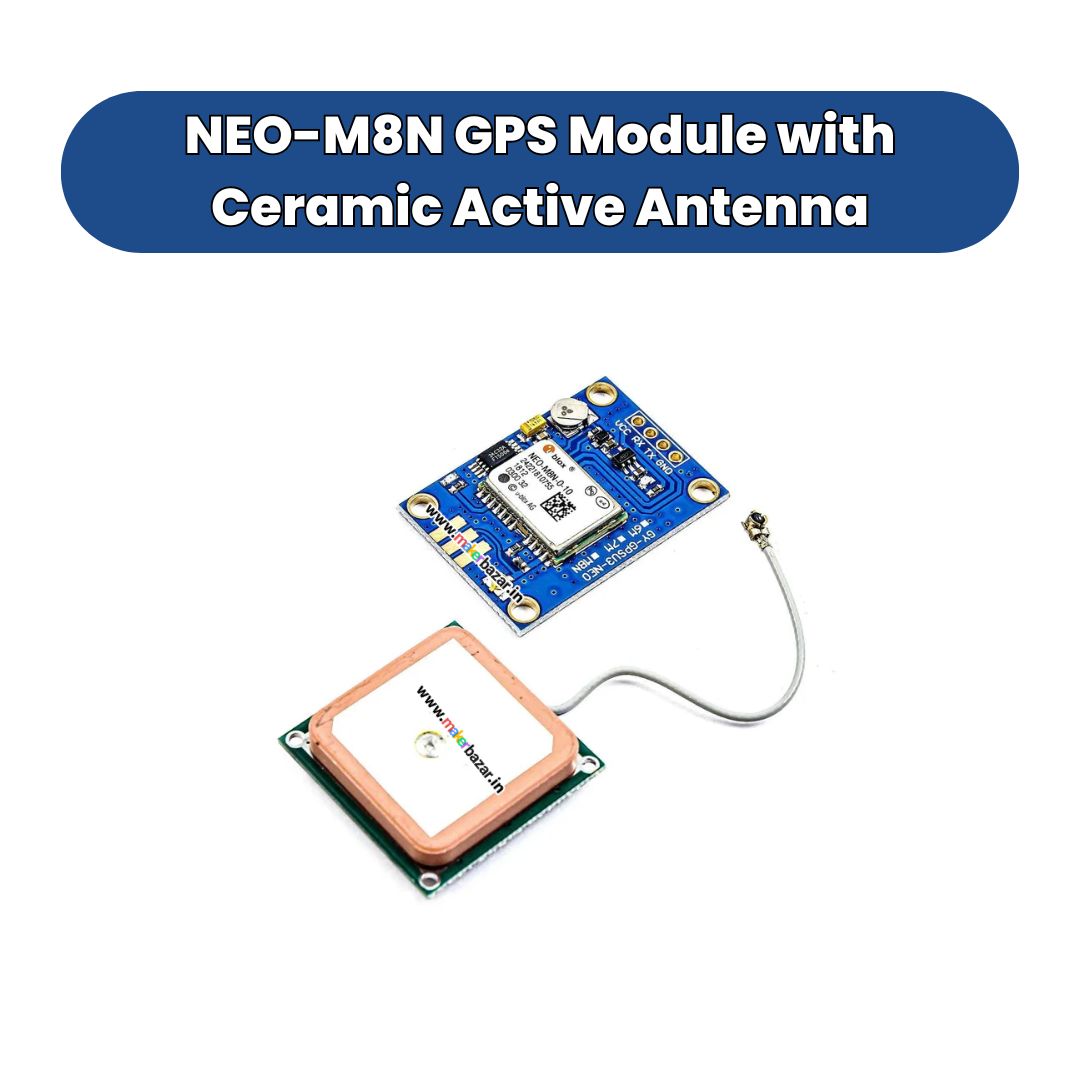

NEO-M8N NEO-M8L GPS Module with Ceramic Active Antenna

  • Antenna: Equipped with a ceramic active antenna for strong signal reception.
  • LED Indicator: Includes an LED signal indicator for easy status monitoring.
  • Baud Rate: Default is 9600.
  • Flash Memory: 64KB for future firmware updates.
  • Backup Battery: Provides data backup when power is lost.
  • Compatibility: Works with various flight control modules and is suitable for both industrial and automotive applications.
  • Assistance Systems:
    • AssistNow GNSS Online and Offline (up to 35 days) for better accuracy and quick acquisition.
    • AssistNow Autonomous (up to 6 days).
  • Compliance: OMA SUPL & 3GPP compliant.
  • Oscillator: TCXO for accurate timekeeping.
  • Anti-jamming: Features active CW detection and removal to minimize interference.
  • Additional Filters: Onboard SAW bandpass filter to enhance signal clarity.
  • Memory: Flash memory for firmware and configuration storage.
  • Supported Antennas: Compatible with both active and passive antennas.
  • Data-logger: Capable of logging position, velocity, and time data.
  • Odometer: Measures traveled distance.
