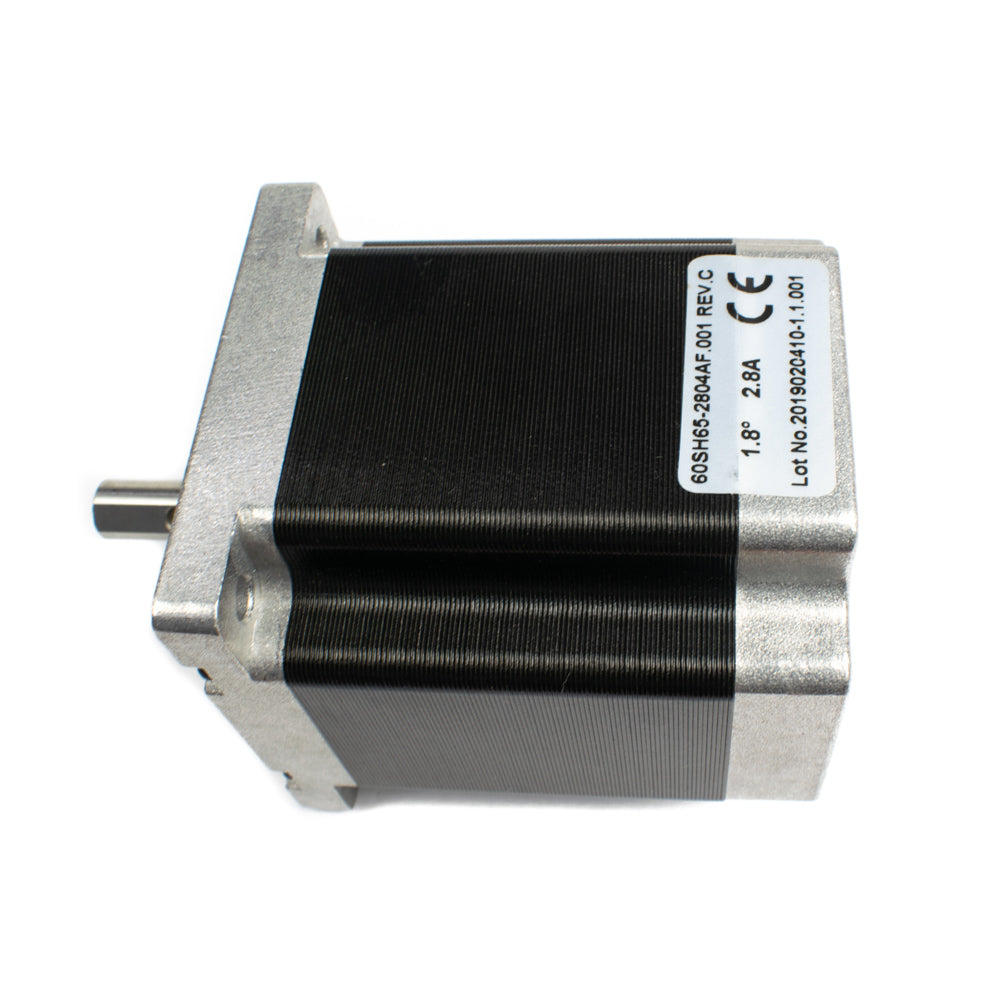

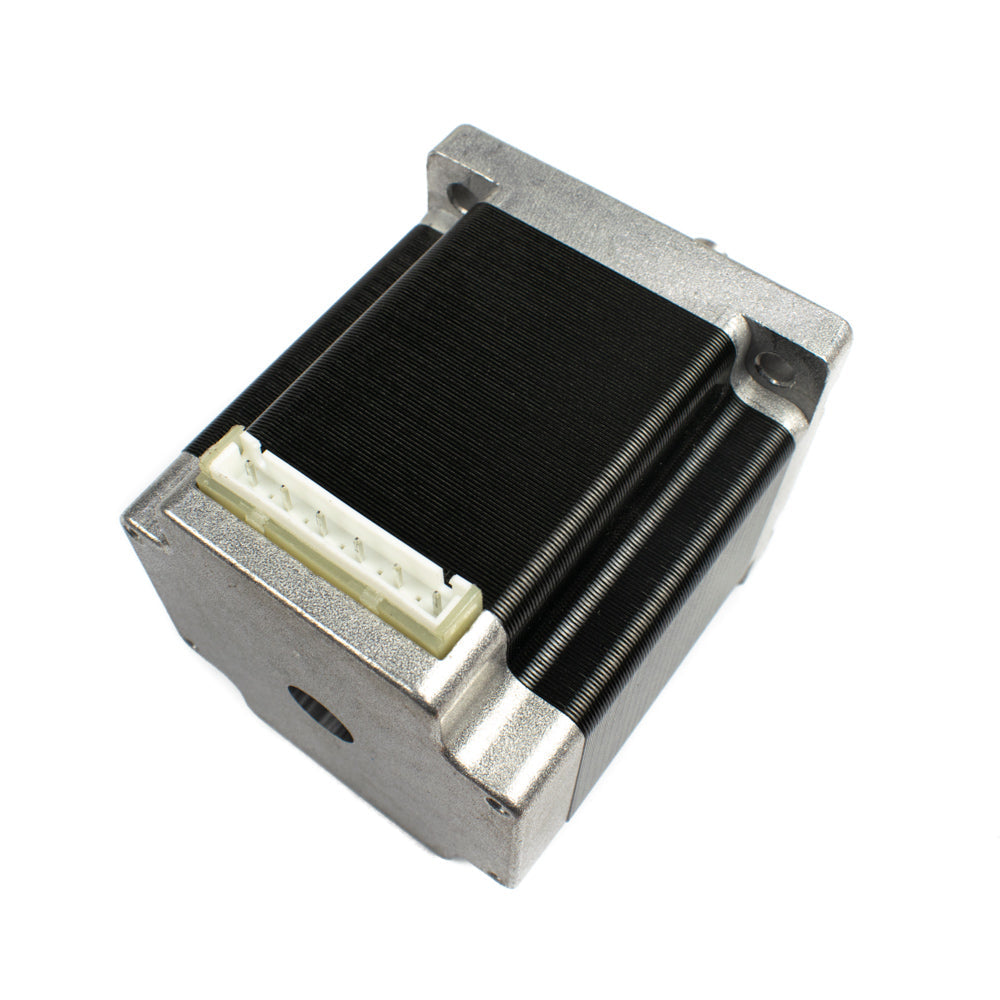

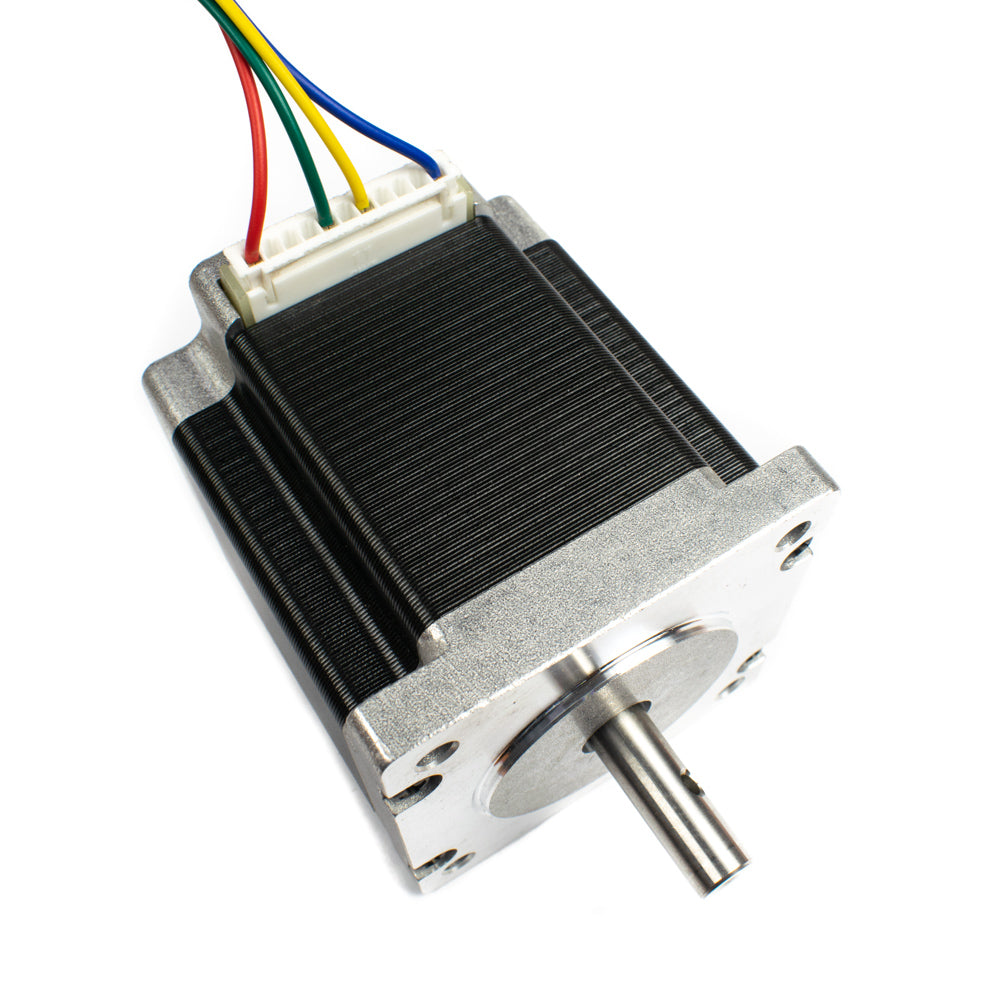

NEMA24 21 kg-cm Bipolar Stepper Motor

NEMA24 21 kg-cm Bipolar Stepper Motor

First Come First Serve Offer (T&C Apply )

2,538.20
0.00 2,538.20
Sale Sold out
Shipping calculated at checkout.

Stepper motors are used in motion systems high precision positioning is required. Stepper motors can deliver direct and precise motions in a small volume due to their high power even at low speeds, stall torque, and ability to divide steps into micro-steps. Permanent magnet and hybrid technologies are used to provide a full range of solutions. The absence of mechanical commutation gives these motors a longer life which is usually given by the sleeves according to the load applied on the shaft.

Specifications
 Model 60HS65-2804AF
Type Bipolar
Rated Voltage 3.36V
Step Angle 1.8°
Rated Current per Phase 2.8A
Resistance per Phase 1.2 Ω ±10%
 Inductance per Phase 4.2 mH ±20%
Holding Torque 2.1Nm
Rotor Inertia 570gcm²
Weight  1.030kg
No. of lead 4
Operating Voltage 24-42VDC
Length 65mm
Step Angle Accuracy ±3 Arc Minute
Protection Class DIN 40050-IP65
Country of Origin China
