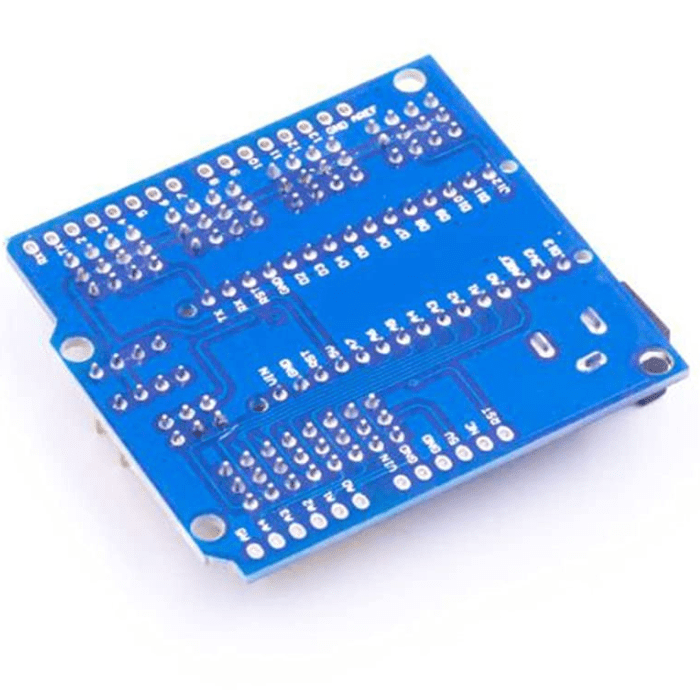

Nano Expansion Shield
Introducing the Nano 328P Expansion Adapter Breakout Board IO Shield – your ultimate companion for seamless connections with the Arduino Nano microcontroller. Designed to simplify and enhance your Arduino projects, this breakout board acts as a bridge between the Arduino Nano and various other devices, making your experimentation and prototyping process a breeze.
The expansion adapter breakout board shares the same footprint as the Arduino Duemilanove, ensuring compatibility and easy integration. With multiple power input options, you have the flexibility to power your projects using various sources. Each pinout includes 5V and GND pins, providing convenient connections to sensors and servos.
What sets this breakout board apart is its comprehensive pin configuration. Featuring 14 I/O pins in servo type, each equipped with GND, power, and signal connections, you have the freedom to interface with a wide range of peripherals. Additionally, there are 8 analog pins with power output and GND, along with 6 PWM pins, allowing precise control of various components. The board also includes 1 Servo power input, 5 I2C expansion pins, 1 AREF output, and 1 3.3V output, making it a versatile choice for all your Arduino projects.
The Nano 328P breakout board comes fully assembled, so you can start experimenting right away. Its compact size and convenient pinout design ensure easy wiring and hassle-free experiments. Whether you're a hobbyist, student, or professional, this shield is an essential tool for unleashing your creativity with Arduino projects.
It's fully compatible with both Arduino Nano v2.x and v3.x, ensuring seamless integration with existing setups. Whether you're a seasoned Arduino enthusiast or just starting, this expansion shield is your go-to companion.
Get ready to take your Arduino projects to the next level with the Nano 328P Expansion Adapter Breakout Board IO Shield. Explore endless possibilities and create innovative solutions with this feature-packed shield. Get yours now and experience the power of Arduino at your fingertips.
Package Includes:
- 1 x Nano 328P Expansion Adapter Breakout Board IO Shield
Specifications:
| Input Voltage(V) | 3.3 ~ 5 |
| Number of Analog Pins | 8 |
| Number of PWM Pins | 6 |
| Length (mm) | 58 |
| Width (mm) | 54 |
| Height (mm) | 12 |
| Weight (gm) | 15 |
