MY1016 250WZ2 400RPM + Motor Controller + Twist Throttle, DIY Electric Bicycle Kit
MY1016 250WZ2 400RPM + Motor Controller + Twist Throttle, DIY Electric Bicycle Kit
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

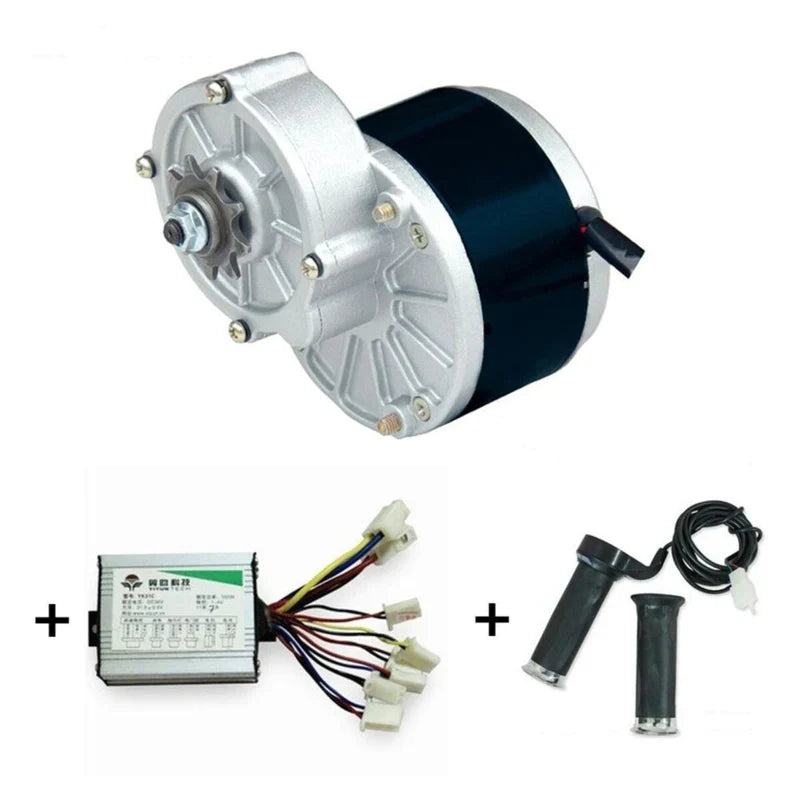

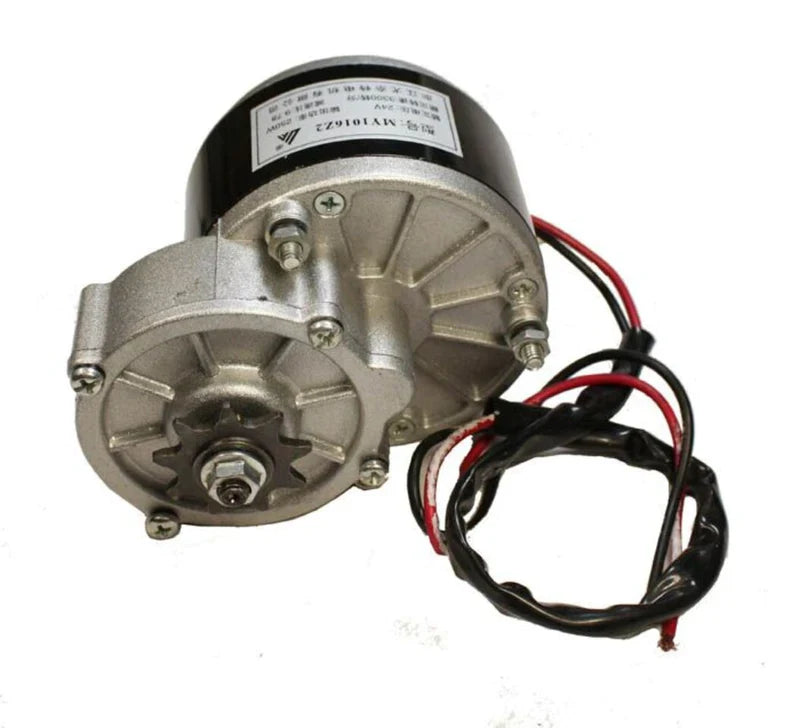

The MY1016 250WZ2 motor, motor controller, and twist throttle are commonly used components in DIY electric bicycle kits. The MY1016 250WZ2 motor is a brushed DC motor with a power rating of 250 watts, suitable for converting a regular bicycle into an electric one. The motor controller is used to control the speed and direction of the motor, while the twist throttle allows the rider to control the motor's acceleration by twisting the grip. This kit provides the essential components needed to electrify a bicycle and enjoy electric-assisted cycling.
Specifications:
- MY1016Z
- 24 Volt DC Operation
- Permanent Magnet DC Motor
- Rated Load RPM: 400
- No Load Current: <2.2 Amps
- Rated Wattage: 250W (0.33 Horsepower)
- Torque (NM): 22
- Rated Current: 13.4 Amps
- Efficiency: 78%
- Reduction Ratio: 9.78:1
- Direct Drive (No Free Spooling)
- Suitable for Forward and Reverse Operations
Base Mount Model
- 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain
- This motor is capable of rotation in either clockwise or counter clockwise by reversing the motor's power wires.
- For Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in
Packing list:
- 1pcs MY1016Z2 250W 24V brush motor
- 1pcs motor controller
- 1pcs throttle and dummy
