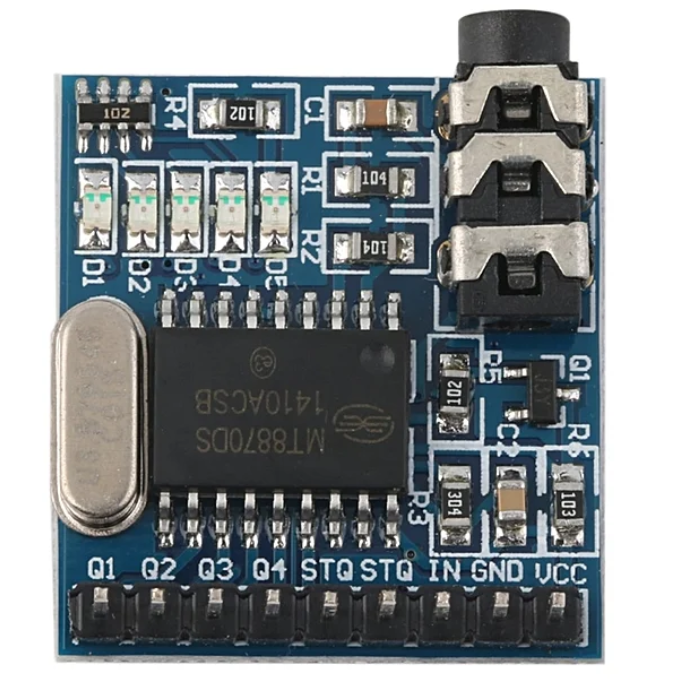

MT8870 DTMF Voice Decoding Module
The DTMF Decoder Module is the ultimate solution for projects requiring dual-tone multi-frequency decoding. Ideal for modem interfaces, mobile radios, and other DTMF applications, this module offers versatile compatibility and user-friendly design.
With onboard LEDs, low power consumption, and adjustable guard time, it ensures quality performance and easy integration into UNO/MEGA2560/DUE boards. The central office quality and internal gain-setting amplifier guarantee optimal signal reception, making it a reliable choice for diverse projects. Convenient input interfaces, multi-channel outputs, and complete functionality make this module a must-have for enthusiasts and professionals alike.
Purchase now and experience seamless DTMF decoding!
Features:
- Onboard voice input interface
- Low power consumption
- Internal gain setting amplifier
- Onboard LED, it is very convenient to check the output state.
- Adjustable guard time
- Central office quality
- Onboard 3.5mm input interface
- 5 Channel interface
- On-board MT8870 frequency decoder chip
- Power-down mode
- Inhibit mode
- Onboard audio input interface
- Onboard LED lights for output state indicationComplete DTMF Receiver.
- Does not require external circuits or wiring, it can be inserted directly into the UNO/MEGA2560/DUE board to use.
- 12-Digital outputs decode mobile and fixed telephone keys (0-9, * #). Also, another 4 Digital outputs (ABCD) can use “DTMF Dial” for Software control.
MT8870 DTMF Decoder Circuit Diagram:
Applications:
- Modems, mobile radios, call routing.
- Mobile-controlled robots.
- Home Automation.
- Menu navigation via phone keypad.
- Industrial Automation.
- Education.
- Prototyping
MT8870 DTMF Decoder Module - Arduino Test with PWM Audio Synth Tones
Package Includes:
- 1 x MT8870 DTMF Voice Decoding Module
Specifications:
| Main Chip |
MT8870DS |
|---|---|
| Working voltage |
5V |
| Power Consumption |
500mW (MAX) |
| Type |
MT 8870 DTMF Tone Decoding Module |
| Operating Temperature |
-40-+85 °C |
| Board Colour |
Blue |
| Dimension (LxWxH)mm |
27 x 25 x 10 |
| Weight |
5g |
