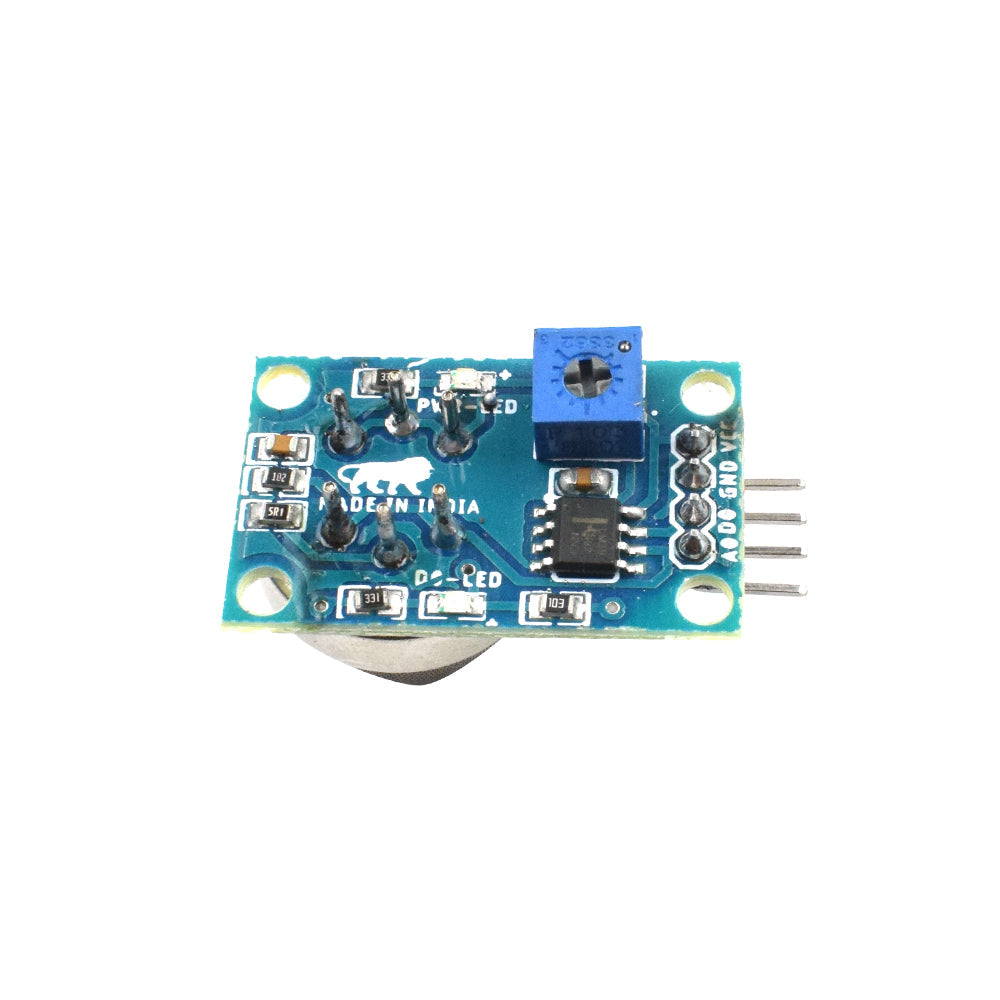

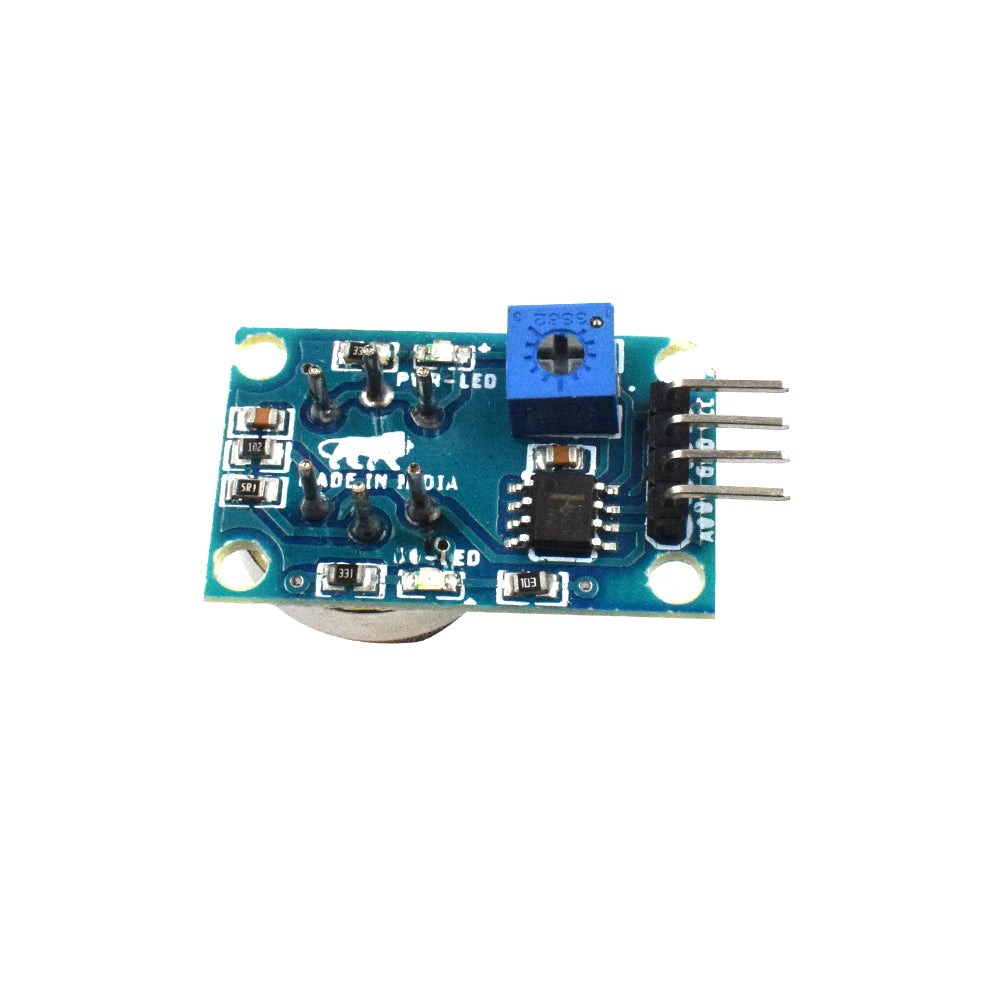

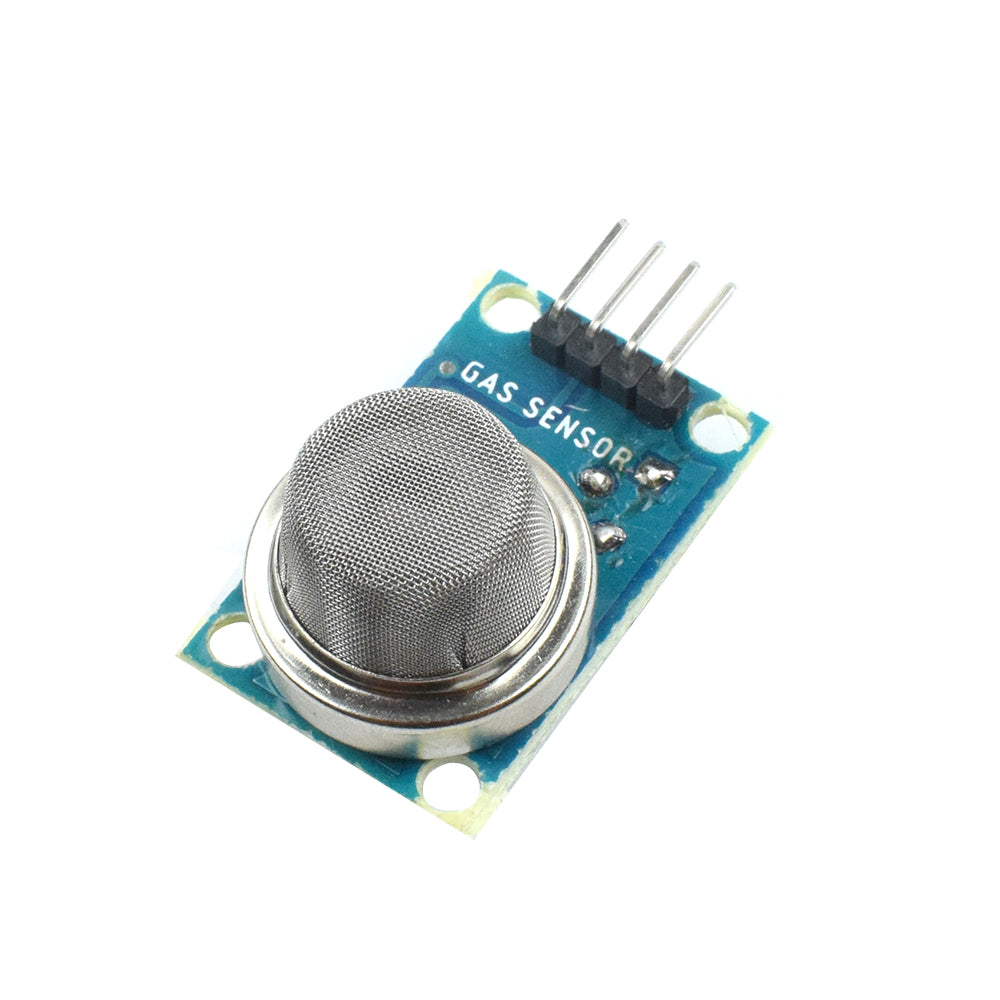

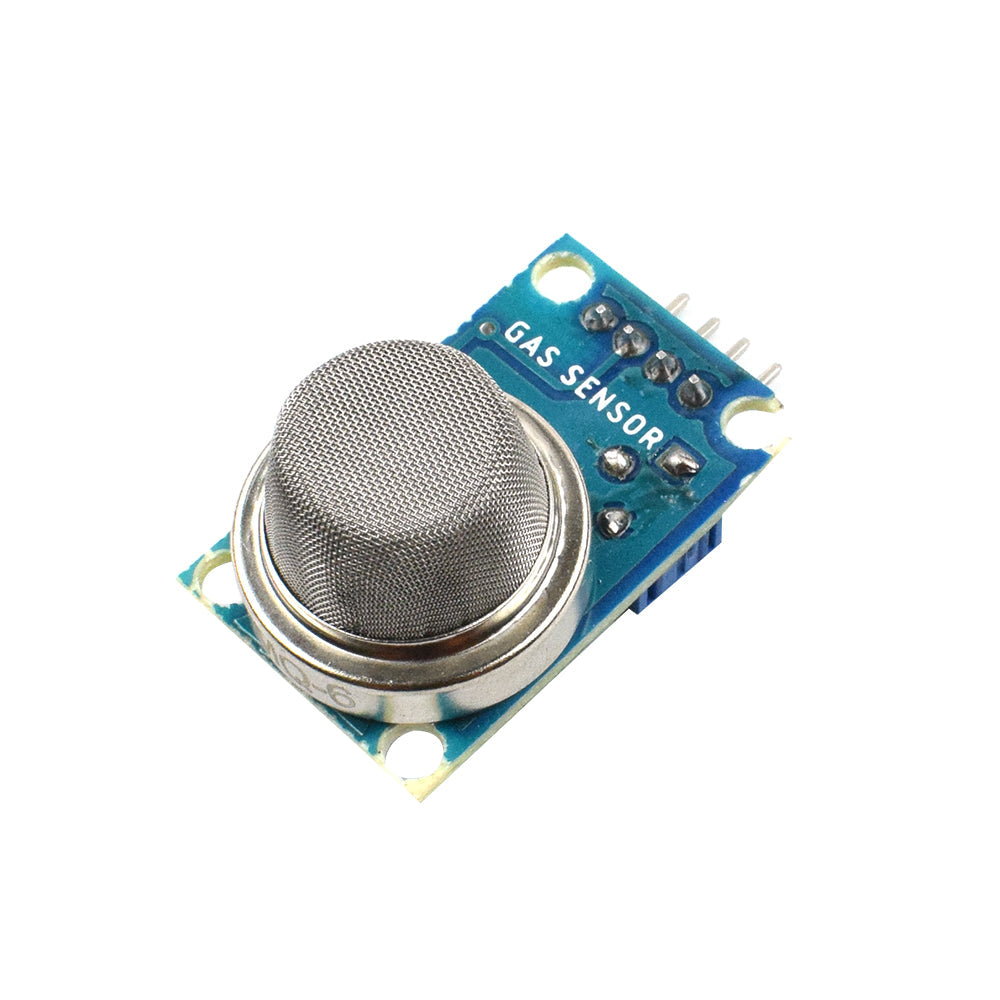

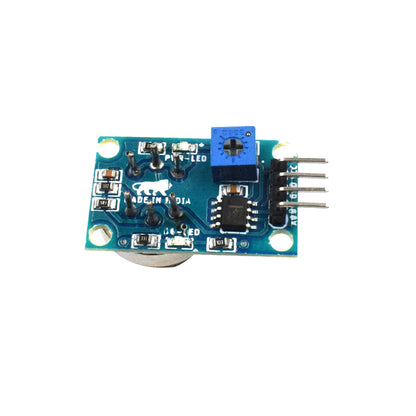

MQ-6 Gas Sensor Module
MQ-6 Gas Sensor Module
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
MQ6 Gas sensor is a Metal Oxide Semiconductor (MOS) type Gas Sensor mostly used to detect the LPG and Butane gas concentration in the air either at home or in industry. This sensor has a detecting element made primarily of ceramic with an aluminum-oxide base and a tin dioxide coating that is encased in a stainless steel mesh. Its sensing range is very suitable for gas leak detection in homes and places like hotels, restaurants where cooking is done using LPG cylinders. This is a very easy to use low cost semiconductor Gas sensor Module with analog and digital output. This module makes it simple to connect a MQ6 LPG gas sensor to an Arduino, Raspberry Pi, or other microcontroller. Its made in India Origin.
Features:
- Very high sensitivity to LPG , iso-butane and propane
- Operating Voltage is +5V DC
- Small sensivity to smoke and alcohol
- Analog output Voltage is 0 to 5V
- Digital output Voltage is 0 to 5V (TTL Logic)
- With potentiometers, the digital pin's sensitivity can be adjusted.
- Quick response
- Simple drive circuit
- It has 4 pins and 4 holes for mounting
Specifications:
| Module | MQ-6 |
| Output type | Both Analog and Digital |
| IC Chip | LM393 |
| Operating Voltage | 3V to 5V |
| Detecting range | 200-10000 ppm |
| Dimensions | 32*19*23 mm |
| Make | India |
| Country of Origin | China |
