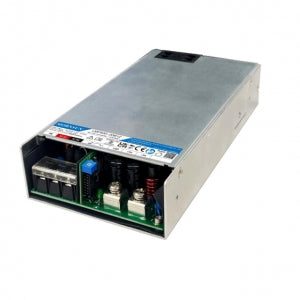

Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply

Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

13,967.00
19,080.00 13,967.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply

The LMF600-20B24 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277VAC or 110-390VDC, a single output voltage of 24VDC, and a maximum output current of 25A. The power supply also has a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce the amount of harmonics that are generated.

The LMF600-20B24 is designed for use in a variety of applications, including industrial, medical, and security systems. It is also suitable for use in telecommunications and networking equipment. The power supply is housed in a rugged metal enclosure that protects it from the elements and provides a high level of safety.

Features:

  • Universal AC input voltage of 80-277VAC or 110-390VDC
  • Single output voltage of 24VDC
  • Maximum output current of 25A
  • Power factor correction (PFC) function
  • Rugged metal enclosure
  • High level of safety

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply

Specifications:

Power 600W
Input voltage 80-277VAC or 110-390VDC
Output voltage 24VDC
Output current 25A
Power factor 0.99
Efficiency 95%
Dimensions 220 x 120 x 85mm
Weight 4.5kg
