Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply

Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

5,422.00
7,408.00 5,422.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply

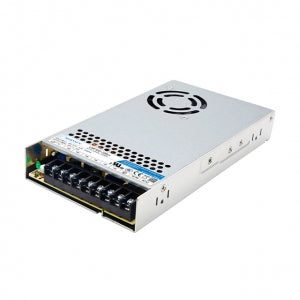

The LMF320-23B12 is an enclosed AC/DC power supply from Mornsun. It has a power output of 320W and an output voltage of 12V. The input voltage range is 85 to 305VAC, and the output current is 26.7A. The efficiency is 85.5%, and the isolation voltage is 4000VAC. The power supply is also protected against overvoltage, overcurrent, and short circuit.

Features

    • Enclosed design for protection from dust and moisture
    • Wide input voltage range for compatibility with a variety of power sources
    • High output current for powering a wide range of devices
    • High efficiency for low power consumption
    • Overvoltage, overcurrent, and short circuit protection for safety

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Also check Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply. The power supply has a universal input voltage and can accept AC or DC input. It also has a built-in active PFC function and high I/O isolation. The output voltage can be adjusted.

    Package Includes:

    1 x  Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply

    Specifications:

    Power output 320W
    Output voltage 12V
    Input voltage range 85 to 305VAC
    Output current 26.7A
    Efficiency 85.5%
    Isolation voltage 4000VAC
    Dimensions 290 x 150 x 100mm
    Weight 4.5kg
