Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply

Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

25,583.00
34,950.00 25,583.00
Sale Sold out
Shipping calculated at checkout.

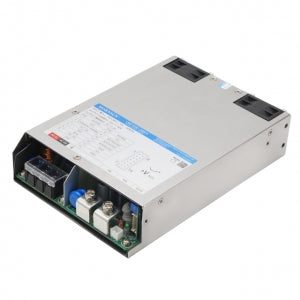

Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply

The LMF1000-20B54 is a universal input, enclosed AC-DC switching power supply from Mornsun. It features a wide input voltage range of 90-264VAC or 120-370VDC, a single output of 54VDC, and a maximum output current of 18.7A. The power supply is also equipped with a number of features to improve its performance and reliability, including a high efficiency of up to 94%, a low no-load power consumption of less than 1W, and a double or reinforced insulation system. The LMF1000-20B54 is compliant with a variety of safety and performance standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN60601, and GB4943. It is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features:

  • Universal input voltage range of 90-264VAC or 120-370VDC
  • Single output of 54VDC
  • Maximum output current of 18.7A
  • High efficiency of up to 94%
  • Low no-load power consumption of less than 1W
  • Double or reinforced insulation system
  • Compliant with a variety of safety and performance standards

check out : Mornsun LMF1000-20B15 AC/DC1000W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LMF1000-20B54 AC/DC1000W Enclosed Switching Power Supply

Specifications

Power 1019W
Input voltage 90-264VAC or 120-370VDC
Output voltage 54VDC
Output current 18.7A
Efficiency 94%
No-load power consumption <1W
Insulation Double or reinforced
Dimensions 220 x 100 x 120mm
Weight 3.5kg
