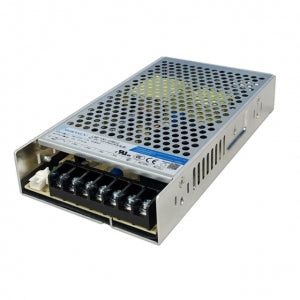

Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply

Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

3,671.00
5,015.00 3,671.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply

The LMF100-23B48 is a universal AC/DC power supply with a wide input voltage range of 85-305V AC or 120-430VDC. It can be used with AC or DC input, making it a versatile option for a variety of applications. The LMF100-23B48 has a built-in active PFC function, which helps to improve power factor and reduce energy consumption. It also has a high I/O isolation test voltage of up to 4000VAC, which provides protection against electrical hazards. The LMF100-23B48 is also energy efficient, with up to 87% efficiency. It has a number of safety features, including output short circuit, over-current, over-voltage, and over-temperature protection. It also has a remote ON-OFF control feature. The LMF100-23B48 is safety certified to IEC/EN60335, IEC/EN61558, CISPR32/EN55032 CLASS B, IEC/EN/UL62368, and GB4943.

Features:

  • Universal input voltage range of 85-305V AC or 120-430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Up to 87% efficiency
  • Output short circuit, over-current, over-voltage, over-temperature protection (built-in constant current limiting circuit)
  • Remote ON-OFF control
  • Safety certified to IEC/EN60335, IEC/EN61558, CISPR32/EN55032 CLASS B, IEC/EN/UL62368, and GB4943

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply

Specifications

Output voltage 23V DC
Output current 48A
Power 100.8W
Dimensions 220 x 120 x 60mm
Weight 4.2kg
