Mornsun LM75-20B48 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-20B48 AC/DC 75W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

1,596.00
2,180.00 1,596.00
Sale Sold out
Shipping calculated at checkout.

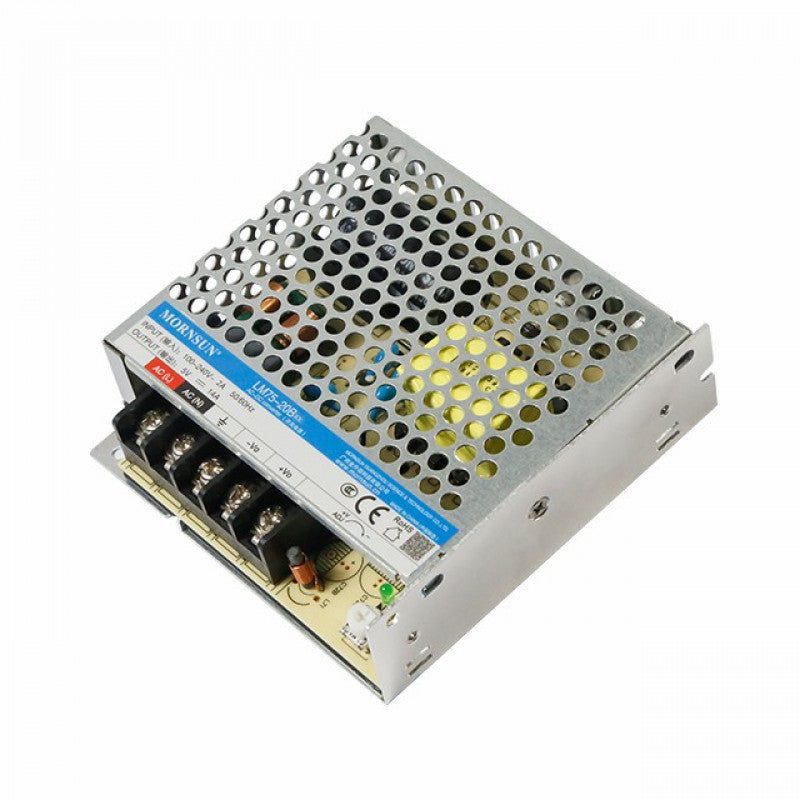

Mornsun LM75-20B48 AC/DC 75W Enclosed Switching Power Supply

The LM75-20B48 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, DC input voltage acceptance, cost-effectiveness, low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features:

    • Universal AC input: The LM75-20B48 can be powered by AC input voltages ranging from 85 to 264 VAC.
    • DC input voltage acceptance: The LM75-20B48 can also be powered by DC input voltages ranging from 120 to 373 VDC.
    • Cost-effective: The LM75-20B48 is a cost-effective solution for a wide range of applications.
    • Low no-load power consumption: The LM75-20B48 has a low no-load power consumption, which helps to save energy.
    • High efficiency: The LM75-20B48 is a high-efficiency power supply, which helps to reduce energy costs.
    • High reliability: The LM75-20B48 is a reliable power supply that is designed to withstand harsh environments.
    • Double or reinforced insulation: The LM75-20B48 features double or reinforced insulation for safety.
    • Excellent EMC performance: The LM75-20B48 offers excellent EMC performance, which helps to reduce interference with other electronic devices.
    • Meets international standards: The LM75-20B48 meets international standards, such as IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943.
    • Widely used: The LM75-20B48 is widely used in a variety of applications, such as industrial, LED, street light control, electricity, security, telecommunications, and smart home.

    check out : Mornsun LM75-20B36 AC/DC 75W Enclosed Switching Power Supply

    If you are looking for a reliable, cost-effective, and high-performance AC-DC switching power supply, the LM75-20B48 is a great option. It is a versatile power supply that can be used in a wide range of applications.

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Package Includes:

    1 x  Mornsun LM75-20B48 AC/DC 75W Enclosed Switching Power Supply

    Specifications

    Type Enclosed Type Single Output
    Output Power 76.8W
    Series LM75-20B
    Part Number LM75-20B48
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 48V
    Output Current 1.6A
