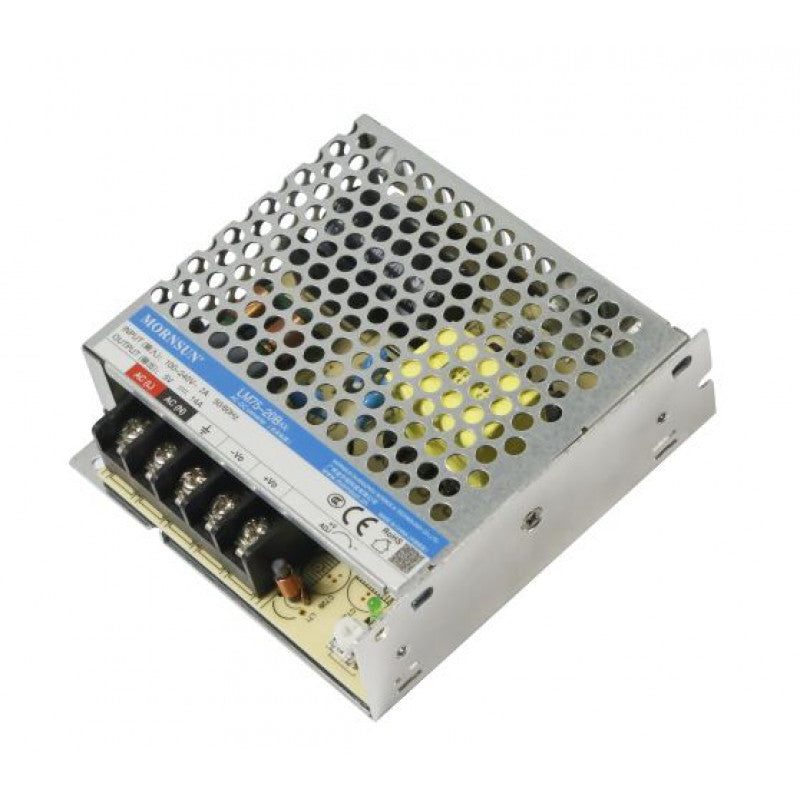

Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply
LM75-20B15 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, which means it can be used with any voltage between 85 and 264 VAC. It also accepts DC input voltage, making it versatile and adaptable to a wide range of applications.
The LM75-20B15 is cost-effective, with a low no load power consumption of 0.5W. It is also highly efficient, with a conversion efficiency of up to 95%. This means that it can save you money on your energy bills.
The LM75-20B15 is also highly reliable, with a long life expectancy of up to 50,000 hours. It is also double or reinforced insulated, which makes it safe to use in a variety of environments.
The LM75-20B15 offers excellent EMC performance and meets a number of international safety standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. This makes it a safe and reliable choice for a variety of applications.
The LM75-20B15 is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. It is a versatile and reliable power supply that can be used in a wide range of applications.
Features:
- Universal AC input
- DC input voltage acceptance
- Cost-effective
- Low no load power consumption
- High efficiency
- High reliability
- Double or reinforced insulation
- Excellent EMC performance
- Meets international safety standards
- Widely used in a variety of industries
If you are looking for a versatile, reliable, and efficient AC-DC switching power supply, the LM75-20B15 is a great option. It is a cost-effective choice that can be used in a wide range of applications.
check out : Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM75-23B36 AC/DC 75W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 75W |
| Series | LM75-20B |
| Part Number | LM75-20B15 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 15V |
| Output Current | 5A |
