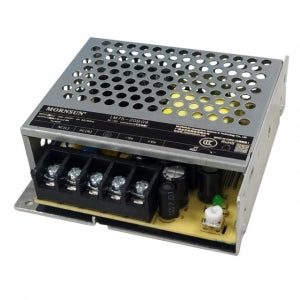

Mornsun LM75-20B09 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-20B09 AC/DC 75W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

1,876.00
2,563.00 1,876.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM75-20B09 AC/DC 75W Enclosed Switching Power Supply

The LM75-20B09 is a 72W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input range of 85 to 264VAC, making it suitable for use in a variety of global markets. The LM75-20B09 also has a DC input voltage range of 12 to 36VDC, which allows it to be used with a variety of battery packs.

The LM75-20B09 has a number of features that make it a good choice for a variety of applications, including:

  • High efficiency: The LM75-20B09 has an efficiency of up to 90%, which helps to reduce power consumption and heat dissipation.
  • Low noise: The LM75-20B09 has a low noise output, which makes it suitable for use in noise-sensitive applications.
  • Reliable operation: The LM75-20B09 is designed for reliable operation in a variety of environments. It is protected against overvoltage, overcurrent, and short circuit conditions.

The LM75-20B09 is available in a variety of output voltages, including 5V, 9V, 12V, 15V, and 24V. It is also available in a variety of output currents, ranging from 1A to 3.2A.

The LM75-20B09 is a versatile and reliable AC-DC switching power supply that is suitable for a variety of applications. It is a good choice for use in industrial, commercial, and consumer applications.

check out : Mornsun LM75-22B24 AC/DC 75W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-20B48 AC/DC 75W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM75-20B09 AC/DC 75W Enclosed Switching Power Supply

Specifications:

Specification Value
Output power 72W
Input voltage range 85 to 264VAC
DC input voltage range 12 to 36VDC
Output voltage range 5V, 9V, 12V, 15V, and 24V
Output current range 1A to 3.2A
Efficiency up to 90%
Noise low
Reliability designed for reliable operation in a variety of environments
Protection overvoltage, overcurrent, and short circuit protection
Dimensions 170 x 100 x 45mm
Weight 1.2kg
