Mornsun LM75-10C052412-15 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-10C052412-15 AC/DC 75W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

2,463.00
3,365.00 2,463.00
Sale Sold out
Shipping calculated at checkout.

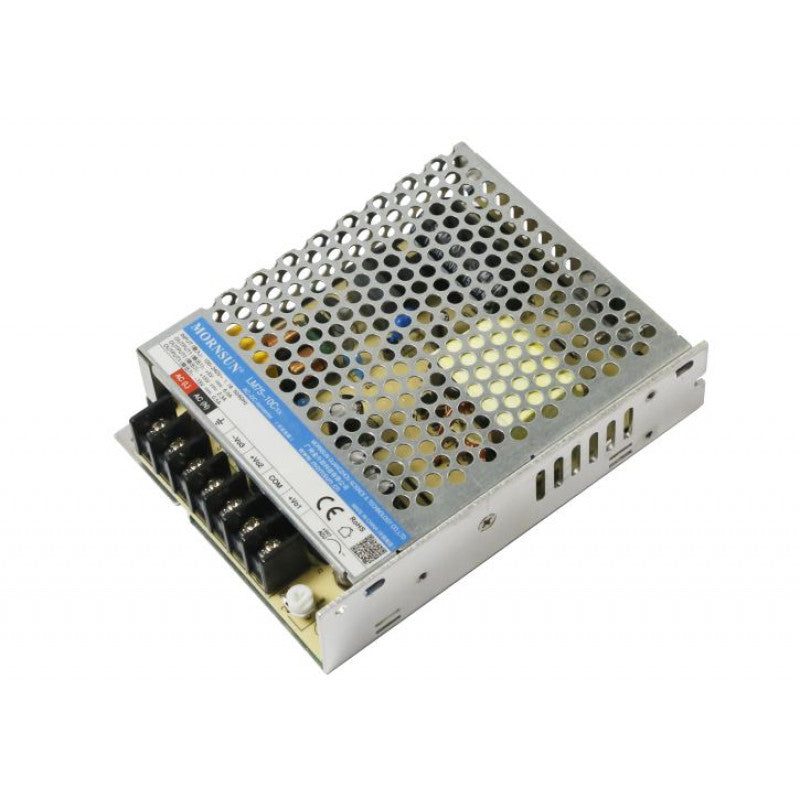

Mornsun LM75-10C052412-15 AC/DC 75W Enclosed Switching Power Supply

The LM75-10C052412-15 is a power converter with three output versions that can independently supply three different loads in a system. It can be used in harsh environments with a temperature range of -30 to 70 degrees Celsius, and does not require a fan for cooling. The converter meets the requirements of IEC61000, CISPR32/EN55032, class B, and IEC/EN/UL62368, EN60335, GB4943 safety standards. It also features a variety of protection features and offers a high-performance to low-cost ratio. This makes it a good choice for a variety of industries, such as industrial control equipment, instrumentation, and smart home and building equipment.

Features

    • Three output versions
    • Independent load supply
    • Wide temperature range
    • No fan required
    • Meets safety standards
    • Variety of protection features
    • High-performance to low-cost ratio

    check out : Mornsun LM75-10C051515-23 AC/DC 75W Enclosed Switching Power Supply

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    check out : Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply

    Package Includes:

    1 x  Mornsun LM75-10C052412-15 AC/DC 75W Enclosed Switching Power Supply

    Specifications:

    Type Enclosed Type Triple Output
    Output Power 73W
    Series LM75-10C
    Part Number LM75-10C052412-15
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 5V, 24V, 12V
    Output Current 5A, 1.5A, 1A
