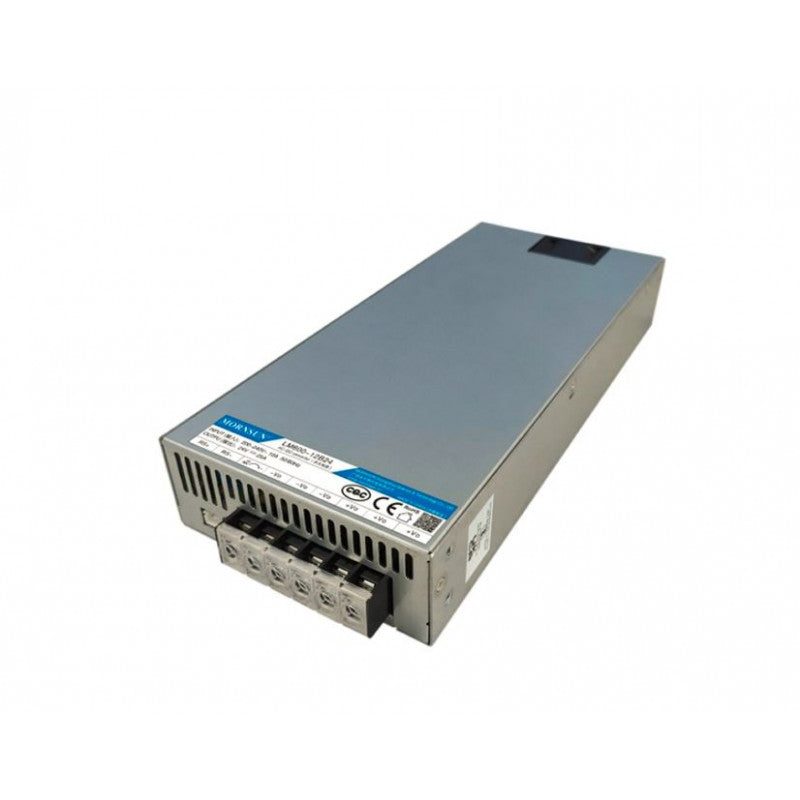

Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

First Come First Serve Offer (T&C Apply )

Regular price 6,747.00
Regular price 9,218.00 Sale price 6,747.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

The LM600-12B36 series is a line of enclosed AC-DC switching power supplies from Mornsun. These converters feature AC input and DC input voltage acceptance, are cost-effective, have low no load power consumption, are highly efficient, reliable, and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards. The LM600-12B36 series is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

    • Universal input voltage of 176-264VAC
    • Single output voltage of 36V at 16.6A
    • Cost-effective
    • Low no load power consumption
    • High efficiency
    • High reliability
    • Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards
    • Widely used in a variety of applications

    If you are looking for an enclosed AC-DC switching power supply that is cost-effective, has low no load power consumption, is highly efficient, reliable, and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards, the LM600-12B36 series is a great option. It is widely used in a variety of applications, so you can be sure that it will be able to meet your needs.

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Package Includes:

    1 x Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

    Specifications:

    Type Enclosed Type Single Output
    Output Power 597.6W
    Series LM600-12B
    Part Number LM600-12B36
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 36V
    Output Current
    16.6A
