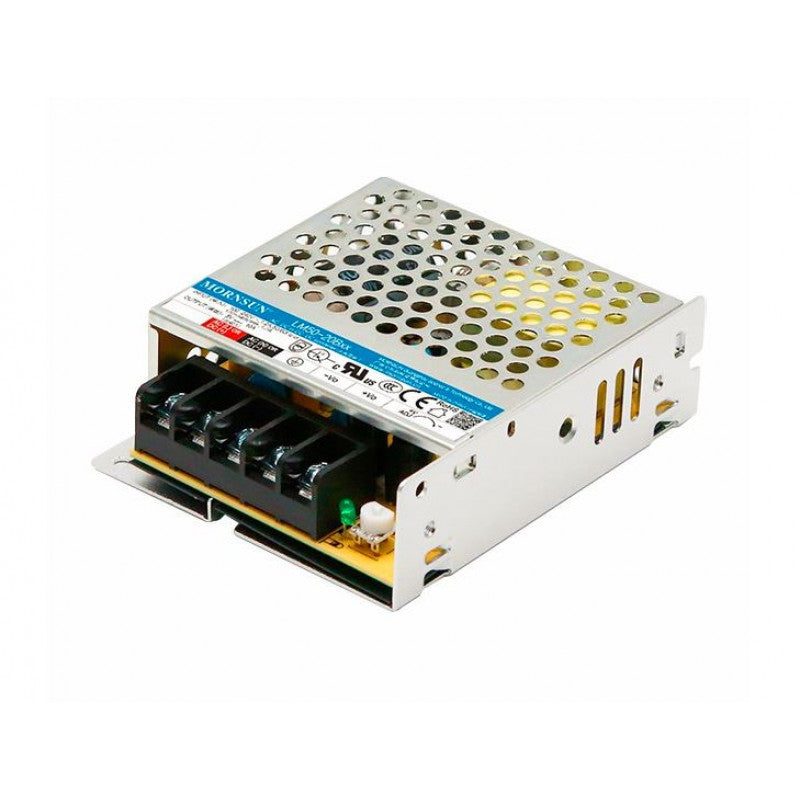

Mornsun LM50-20B36 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-20B36 AC/DC 50W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

1,334.00
1,823.00 1,334.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM50-20B36 AC/DC 50W Enclosed Switching Power Supply

The LM50-20B36 series is a line of enclosed AC-DC switching power supplies from Mornsun. They feature a universal AC input, DC input voltage acceptance, cost-effectiveness, low no-load power consumption, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558 standards. They are widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

    • Universal AC input: The LM50-20B36 series can be powered by AC input voltages ranging from 85 to 264 volts. This makes it a versatile option for use in a variety of locations around the world.
    • DC input voltage acceptance: The LM50-20B36 series can also be powered by DC input voltages ranging from 12 to 30 volts. This gives users additional flexibility in how they power the device.
    • Cost-effectiveness: The LM50-20B36 series is a cost-effective option for users who need a reliable and versatile power supply.
    • Low no-load power consumption: The LM50-20B36 series has a low no-load power consumption, which helps to conserve energy and reduce costs.
    • High efficiency: The LM50-20B36 series is a highly efficient power supply, which means that it converts more of the input power into output power. This can save users money on their energy bills.
    • High reliability: The LM50-20B36 series is a highly reliable power supply that is designed to withstand demanding conditions.
    • Double or reinforced insulation: The LM50-20B36 series features double or reinforced insulation, which helps to protect users from electrical shock.
    • Excellent EMC performance: The LM50-20B36 series has excellent EMC performance, which helps to reduce interference with other electronic devices.
    • Meets a variety of standards: The LM50-20B36 series meets a variety of standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. This ensures that it is a safe and reliable product.
    • Widely used in a variety of industries: The LM50-20B36 series is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. This makes it a versatile and reliable option for a variety of applications.

    check out : Mornsun LM50-20B15 AC/DC 50W Enclosed Switching Power Supply

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Package Includes:

    1 x  Mornsun LM50-20B36 AC/DC 50W Enclosed Switching Power Supply

    Specifications:

    Type Enclosed Type Single Output
    Output Power 52.2W
    Series LM50-20B
    Part Number LM50-20B36
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 36V
    Output Current
    		 1.45A
