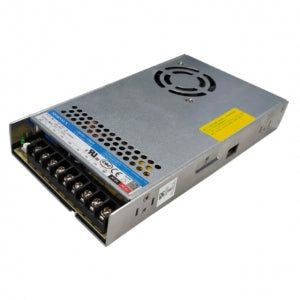

Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

3,259.00
4,453.00 3,259.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

The LM350-10B24 is a 350W AC/DC switching power supply with a single output of 24V DC. It has a universal input voltage of 115VAC to 230VAC and a frequency range of 50Hz to 60Hz. The output voltage is adjustable from 0V to 24V and the output current is 14.6A. The power supply has a power factor correction (PFC) function that helps to improve the efficiency of the power supply and reduce the amount of power that is wasted. The power supply also has a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.

Features:

  • Universal input voltage of 115VAC to 230VAC
  • Frequency range of 50Hz to 60Hz
  • Single output of 24V DC
  • Output voltage adjustable from 0V to 24V
  • Output current of 14.6A
  • Power factor correction (PFC) function
  • Overvoltage protection
  • Undervoltage protection
  • Overcurrent protection
  • Short circuit protection

check out : Mornsun LM350-12B12 AC/DC 350W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

Specifications

Input voltage 115VAC to 230VAC
Input frequency 50Hz to 60Hz
Output voltage 24V DC
Output current 14.6A
Power 350W
Power factor 0.98
Efficiency 90%
Dimensions 220mm x 100mm x 60mm
Weight 1.5kg
