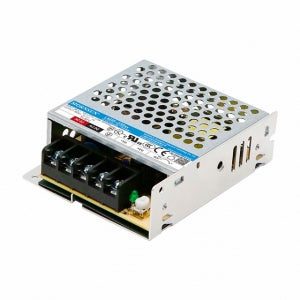

Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

Regular price 1,246.00
Regular price 1,703.00 Sale price 1,246.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

The LM35-23B24 is an enclosed AC/DC switching power supply from Mornsun. It has a universal AC input range of 85 to 305 VAC and an output voltage of 24 VDC. The power supply is also adjustable, with a maximum output current of 1.5 A. It has a high efficiency of up to 87% and can operate up to an altitude of 5000 m. The LM35-23B24 is certified to IEC/EN 62368-1 and UL 62368-1 for industrial safety. It has a LED indicator for power on and a no load power consumption of less than 0.3 Watts.

Features:

  • Universal AC input range of 85 to 305 VAC
  • Output voltage of 24 VDC
  • Adjustable output voltage
  • Maximum output current of 1.5 A
  • High efficiency of up to 87%
  • Operation up to an altitude of 5000 m
  • IEC/EN 62368-1 and UL 62368-1 certified for industrial safety
  • LED indicator for power on
  • No load power consumption of less than 0.3 Watts

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

Specifications:

Output power 35 W
Input voltage 85 to 305 VAC
Output voltage 24 VDC
Output current 1.5 A
Efficiency up to 87%
Operating temperature -30 to +70°C
Weight 0.4 kg
Dimensions 190 x 110 x 60 mm
