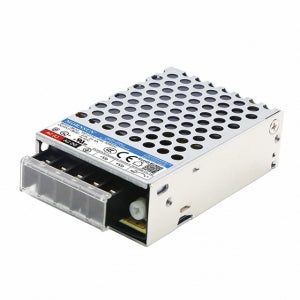

Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS

Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS

First Come First Serve Offer (T&C Apply )

1,182.00
1,615.00 1,182.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS

The LM25-23B03 is an enclosed type AC/DC power supply from Mornsun. It has an output voltage of 3.3V and a maximum output current of 6A, for a total power output of 19.8W. The input voltage range is 85-305VAC, and the output voltage is adjustable in 10mV steps. The power supply is also equipped with a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce the amount of power wasted as heat.

The LM25-23B03 is a versatile power supply that can be used in a variety of applications, including industrial automation, telecommunications, and consumer electronics. It is also compliant with a number of safety standards, including IEC/EN 62368-1 and UL 62368-1.

Features:

  • Enclosed type
  • Output voltage: 3.3V
  • Output current: 6A
  • Power output: 19.8W
  • Input voltage range: 85-305VAC
  • Adjustable output voltage
  • Power factor correction (PFC)
  • Compliant with IEC/EN 62368-1 and UL 62368-1

check out : Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS

Specifications:

Specification Value
Output voltage 3.3V
Output current 6A
Power output 19.8W
Dimensions 120 x 60 x 30mm
Weight 0.5kg
Operating temperature range -30 to +70°C
Storage temperature range -40 to +85°C
Humidity 0 to 95% (non-condensing)
