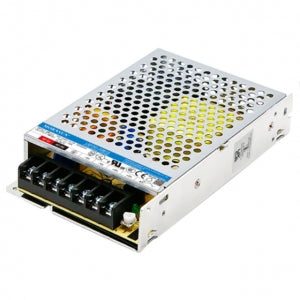

Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

Regular price 2,191.00
Regular price 2,993.00 Sale price 2,191.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

The LM150-22B15 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264VAC and 180-370VDC. The power rating of the supply is 150W, and it has an output voltage of 15VDC. With a high efficiency of 87% and 4000VAC isolation, the LM150-22B15 is designed to provide reliable power in industrial applications. It is a cost-effective solution with a narrow input range and offers excellent performance.

Features

  • Power rating: 150W
  • Input voltage range: 165-264VAC, 180-370VDC
  • Output voltage: 15VDC
  • Output current: 10A
  • Efficiency: 87%
  • Isolation: 4000VAC

check out : Mornsun LM150-22B12 AC/DC 150W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

Specifications:

Power (W) 150
Vin (VAC) 165-264
Vin (VDC) 180-370
Vout (VDC) 15
Iout 10A
Efficiency (%) 87
Isolation 4000VAC
