Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply

Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply

First Come First Serve Offer (T&C Apply )

992.00
1,355.00 992.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply

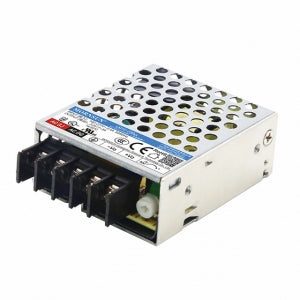

The LM15-23B48 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 48V at 0.32A, for a total power output of 15.36W. The input voltage range is 85-305VAC or 100-430VDC, and the efficiency is 83%. The isolation voltage is 4000VAC.

The LM15-23B48 is a compact and lightweight unit, measuring just 2.25 x 4.75 x 1.25 inches and weighing 0.75 pounds. It is also conformal coated for protection against harsh environments.

The LM15-23B48 is ideal for a variety of applications, including industrial control, networking, and telecommunications. It is also a good choice for use in medical and laboratory equipment.

Features:

  • Single output of 48V at 0.32A
  • Total power output of 15.36W
  • Input voltage range of 85-305VAC or 100-430VDC
  • Efficiency of 83%
  • Isolation voltage of 4000VAC
  • Compact and lightweight design
  • Conformal coated for protection against harsh environments

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply

Specifications:

Model LM15-23B48
Output voltage 48V
Output current 0.32A
Total power output 15.36W
Input voltage range 85-305VAC or 100-430VDC
Efficiency 83%
Isolation voltage 4000VAC
Dimensions 2.25 x 4.75 x 1.25 inches
Weight 0.75 pounds
