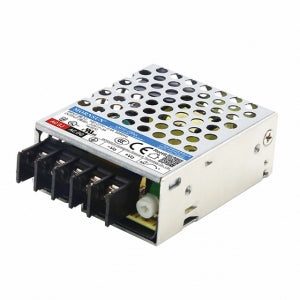

Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS

Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS

First Come First Serve Offer (T&C Apply )

992.00
1,355.00 992.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS

The LM15-23B03 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305 VAC or 100 to 430 VDC, and can output a regulated 3.3V at up to 3A. The LM15-23B03 is also equipped with a power factor correction (PFC) circuit, which helps to improve the efficiency of the power supply and reduce its overall power consumption.

Features:

  • Universal AC input of 85 to 305 VAC or 100 to 430 VDC
  • Regulated output voltage of 3.3V
  • Output current of up to 3A
  • Power factor correction (PFC) circuit
  • Low no-load power consumption
  • High efficiency and reliability
  • Compact and lightweight design

The LM15-23B03 is a versatile and reliable power supply that can be used in a wide variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

check out : Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS

Specifications:

Specification Value
Output power 15W
Input voltage 85 to 305 VAC or 100 to 430 VDC
Output voltage 3.3V
Output current 3A
Power factor 0.98
Efficiency >90%
Dimensions 120 x 60 x 35mm
Weight 0.3kg
