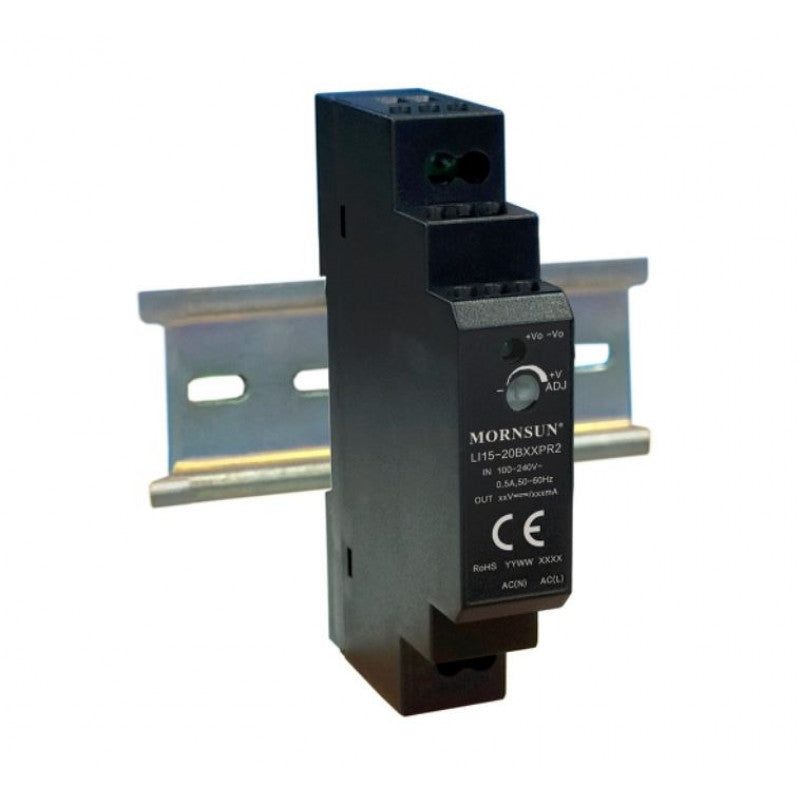

Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply

Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply

First Come First Serve Offer (T&C Apply )

1,362.00
1,860.00 1,362.00
Sale Sold out
Shipping calculated at checkout.

Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply

The LI15-20B05PR2 is a cost-effective, energy efficient AC-DC power supply from Mornsun. It is compliant with international IEC62368 standards for EMC and safety specifications, and it offers a high level of stability and immunity to noise. The LI15-20B05PR2 is also lightweight and compact, making it ideal for space-saving applications. It is ideal for industrial control equipment, machinery, and other harsh environments.

Features

  • Universal input voltage of 85-264VAC or 120-370VDC
  • Output voltage of 5V
  • Output current of 2.4A
  • Efficiency up to 94.5%
  • High I/O isolation test voltage up to 3000VAC
  • DC OK function
  • Active PFC, PF > 0.99
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage, over-temperature protection, input undervoltage protection
  • DIN rail TS-35/7.5 or 15 mountable
  • Ultra slim design with 48mm width
  • Withstand 305VAC input voltage 5S
  • Safety according to IEC/UL62368, EN61558

If you are looking for a cost-effective, energy efficient, and reliable AC-DC power supply, the LI15-20B05PR2 is a great option. It is ideal for a variety of applications, including industrial control equipment, machinery, and other harsh environments.

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply

Specifications:

Type DIN Rail Single Output
Output Power 12W
Series LI15-20B
Part Number LI15-20B05PR2
Mount DIN-Rail
IP Level  Non-Waterproof
Output Voltage 5V
Output Current 2.4A
