mmWave-C4001 24Ghz Human Presence Detection Sensor

mmWave-C4001 24Ghz Human Presence Detection Sensor

First Come First Serve Offer (T&C Apply )

1,349.00
1,999.00 1,349.00
Sale Sold out
Shipping calculated at checkout.

mmWave-C4001 24Ghz Human Presence Detection Sensor

The DFRobot C4001 24GHz Millimeter-Wave FMCW Radar is the perfect solution for human presence detection. It features long-range measurement, high accuracy, advanced FMCW technology, durable build, easy integration, and strong anti-interference capabilities.

Made with robust materials, this radar sensor ensures reliable performance in harsh conditions. Its state-of-the-art FMCW modulation provides superior accuracy, making it ideal for motion detection and proximity sensing.

The compact design and versatile installation options simplify setup and enhance project capabilities. The C4001 radar sensor measures up to 25 meters and is suitable for real-time human presence detection. Available in various sizes.

Features:

  • Human detection: Detection range up to 16 meters and motion detection range up to 25 meters.
  • Distance detection: Range from 1.2 meters to 25 meters.
  • Velocity detection: Range from 0.1 meters per second to 10 meters per second.
  • Strong anti-interference capability, unaffected by snow, haze, temperature, humidity, dust, light, noise, etc.
  • High and low-level output control through I/O ports.
  • Input and output control via serial port.
  • Small size, easy to integrate.

Applications:

  • Human Detection
  • Distance and Velocity Detection
  • Environmental Monitoring
  • Industrial Automation
  • Real-time Monitoring and Tracking

Package Includes:

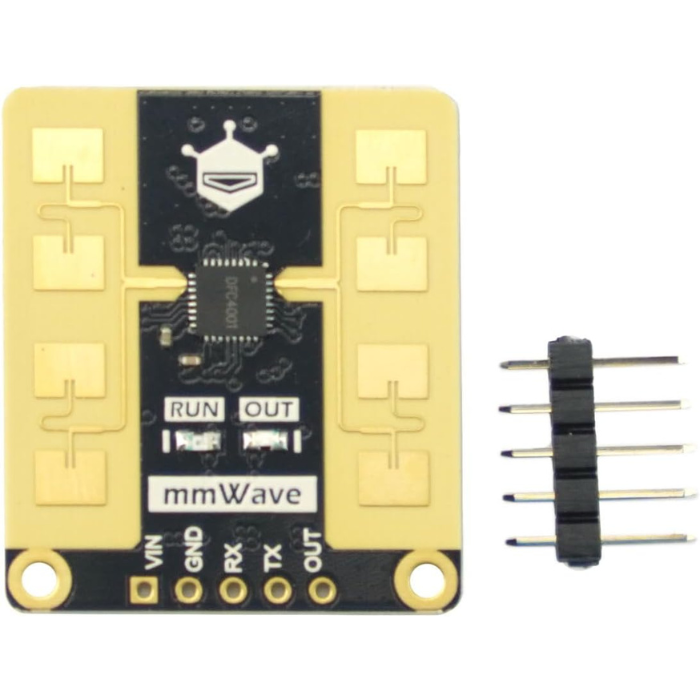

  • C4001 mmWave Presence Sensor 25m× 1
  • 5-pin header

Specifications:

Operating Voltage 3.3/5V
Maximum Detection Range 25 meters
Beam Angle 100° horizontally, 40° vertically
Modulation Mode FMCW (Frequency Modulated Continuous Wave)
Operating Frequency 24GHz
Velocity Detection Range 0.1 to 10 meters per second
Operating Temperature -40°C to 85°C
Communication Interface UART
Baud Rate 9600

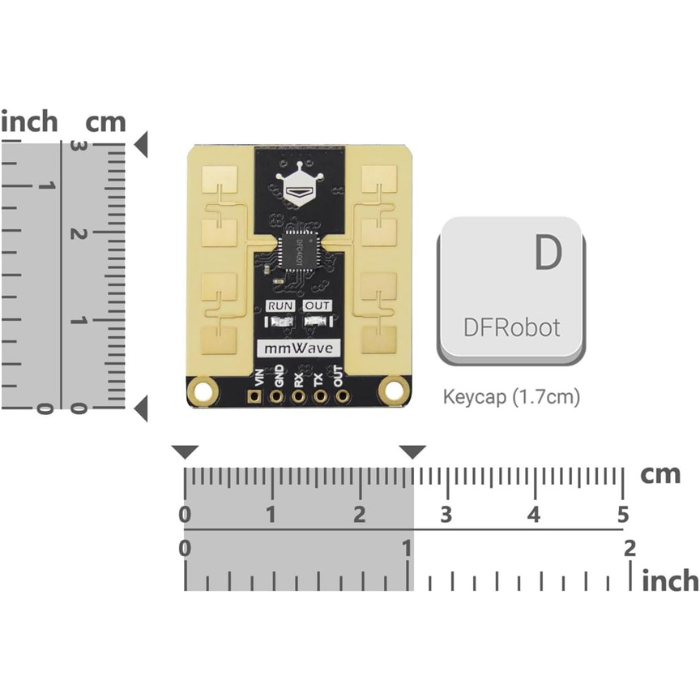

Dimensions 26mm x 30mm
Detection Range (Presence) Up to 16 meters
Anti-Interference Capability Resistant to temperature, light, noise, and dust
Output Control High and low-level output via I/O ports, serial port
Weight Lightweight and easy to integrate
