MMA7455 Triple Axis Accelerometer Sensor Module (Replace MMA7260 Module)

MMA7455 Triple Axis Accelerometer Sensor Module (Replace MMA7260 Module)

First Come First Serve Offer (T&C Apply )

999.00
1,299.00 999.00
Sale Sold out
Shipping calculated at checkout.

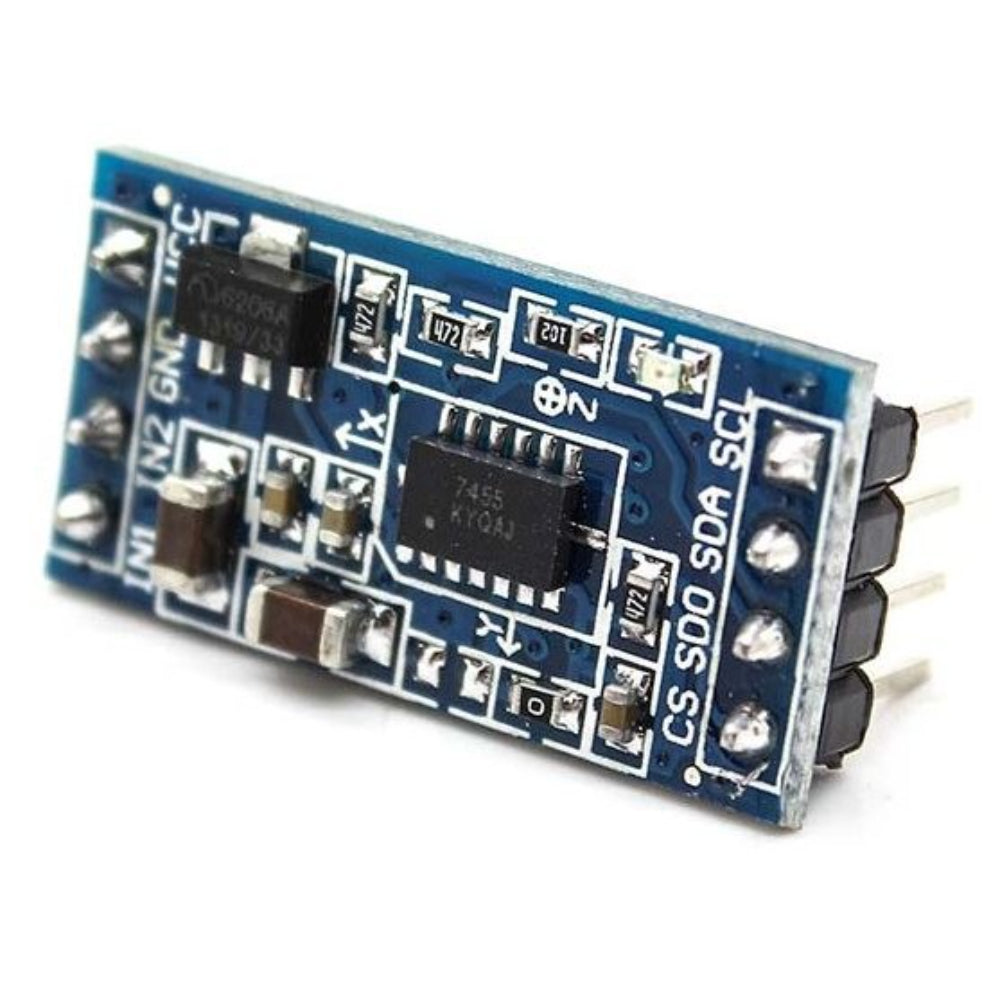

MMA7455 Triple Axis Accelerometer Sensor Module

The MMA7455 is a Digital Output (I2C/SPI), low power, low profile capacitive micro machined accelerometer featuring signal conditioning, a low pass filter, temperature compensation, self-test, configurable to detect 0g through interrupt pins (INT1 or INT2), and pulse detect for quick motion detection. 0g offset and sensitivity are factory set and require no external devices. The 0g offset can be customer calibrated using assigned 0g registers and g-Select which allows for command selection for 3 acceleration ranges (2g/4g/8g). The MMA7455 includes a Standby Mode that makes it ideal for hand held battery powered electronics.

Technical Details

  • Low Current: 400 µA (Active), 3 µA (Sleep)
  • Voltage: 2.2V – 3.6V
  • Sensitivity: ±1.5g, ±6g
  • Size: 24.9 x 12.7mm

Features

  • Z-axis self-test
  • Voltage: 2.4–3.6V
  • Offset calibration via user registers
  • Programmable interrupt threshold
  • Motion detection: shock, vibration, freefall
  • Pulse detection: single/double
  • Sensitivity: 64 LSB/g (2g & 8g in 10-bit mode)

Application:

  • Orientation Detection: Detects portrait or landscape mode, image stability, text scroll, motion dialing, and tap-to-mute functionality.
  • Robotics: Measures acceleration, orientation, stabilization, vibration sensing, flight stabilization, and g-force measurement.
  • Anti-Theft Detection: Detects unauthorized movement or tampering.
  • Laptops & HDD: Provides freefall detection and physical impact detection for protection.
  • Event Recorder: Records motion-related events for analytics and monitoring.
  • Gaming: Enables motion detection, auto-wake/sleep for low power consumption, and motion sensing for enhanced gameplay.
  • Digital Still Camera: Implements image stability, device stability, and anti-shake features.

Integration with Arduino of MMA7361 Accelerometer Sensor

MMA7361 Sensor Module



Sample Code

Physical Attributes

  • Size: 24.9 x 12.7mm
  • Weight in gm: 1.76

Package Includes

  • 1 x MMA7455 Triple Axis Accelerometer Sensor Module (Replace MMA7260 Module)
