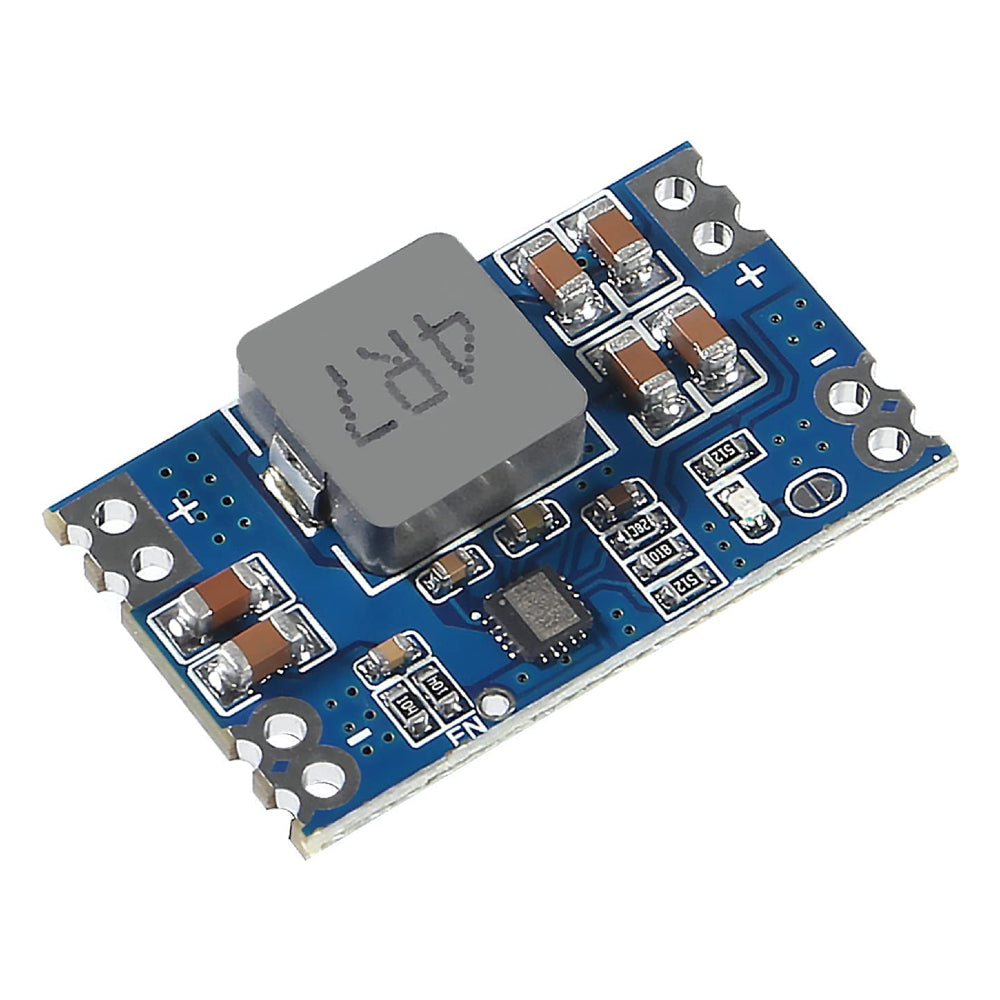

MINI560 DC 3.3V 5A, Step-Down Stabilized Module
MINI560 DC 3.3V 5A, Step-Down Stabilized Module
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
MINI560 DC 3.3V 5A, Step-Down Stabilized Module
Introducing the MINI560 DC-DC 3.3V 5A Step-Down Voltage Regulator Moduleโa compact and efficient power solution designed to meet your voltage conversion needs. With its small form factor and high conversion efficiency, this module is ideal for a variety of applications, from DIY projects to industrial systems.Technical Details
- Input Voltage: 5V to 20V
- Output Voltage: 3.3V
- Maximum Output Current: 5A
- Size: 30 x 18 x 5.4mm
- Switching Frequency: 500KHz
- Topology: Non-isolated buck, synchronous rectification
- Operating Temperature Range: -40ยฐC to +85ยฐC
Features
- Wide Input Range: 5V to 20V
- Stable 3.3V Output, Up to 5A
- Material: PCB
- Size: 30ร18ร5mm
- High Efficiency, Low Heat
- Non-Isolated Buck with Synchronous Rectification
- Wide Temperature Range: -40ยฐC to +85ยฐC
Applications :
- Embedded Systems โ Stable 3.3V power for microcontrollers and IoT devices.
- DIY Electronics โ Ideal for custom circuits and prototyping.
- Industrial Applications โ Powers sensors, controllers, and modules.
- Battery-Powered Devices โ Efficient voltage regulation for portable electronics.
- Telecommunications โ Used in network and communication equipment.
Physical Attribute
- Material: PCB
- Size: 30ร18ร5mm
Package Includes
- 1 x MINI560 DC 3.3V 5A, Step-Down Stabilized Module
