Micro SD card Reader (Interface) Module

Micro SD card Reader (Interface) Module

First Come First Serve Offer (T&C Apply )

89.18
0.00 89.18
Sale Sold out
Shipping calculated at checkout.

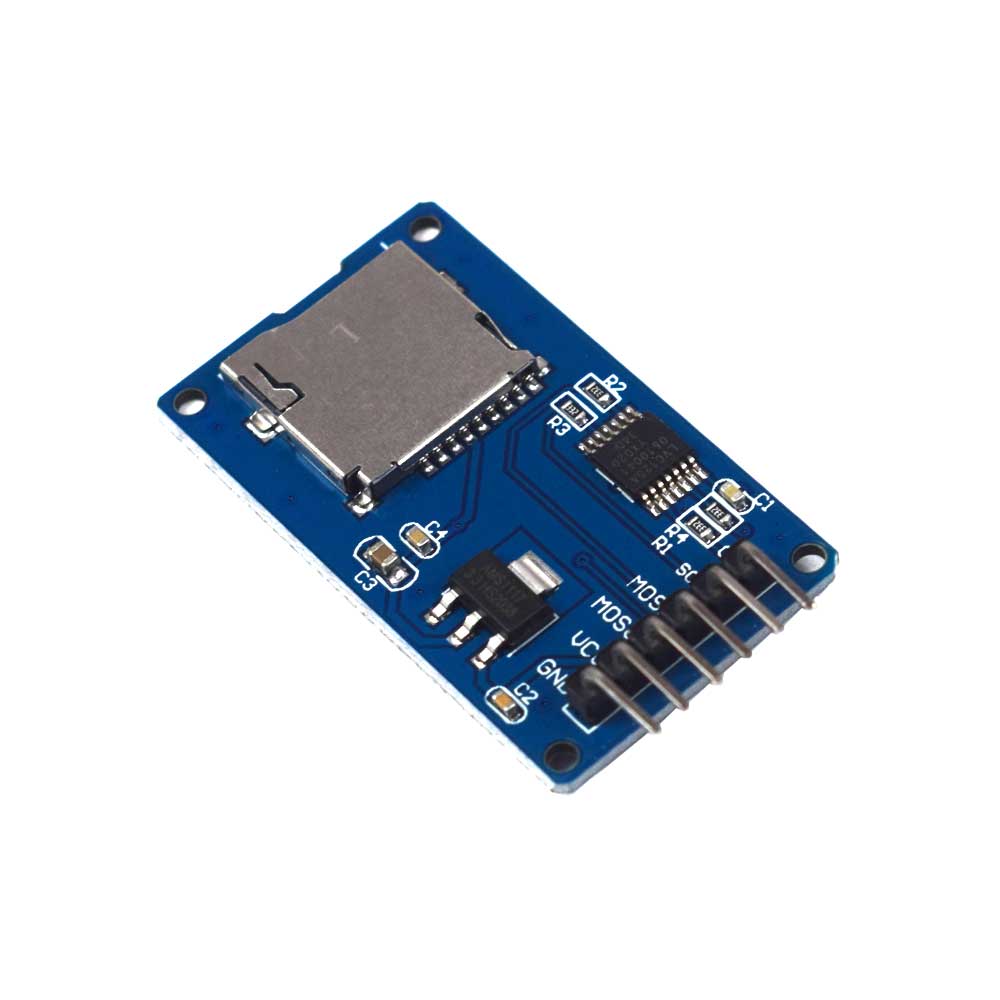

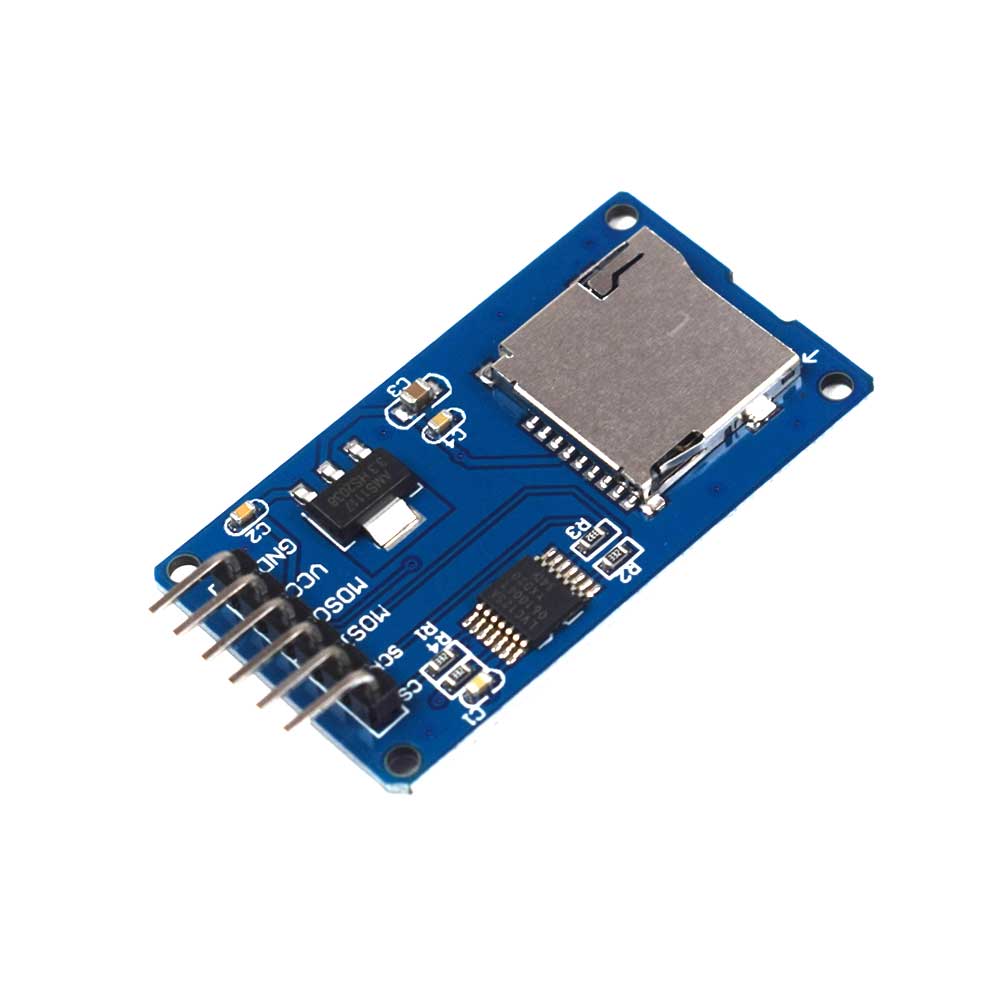

This is a Micro SD card reader module that uses the SPI interface and a file system driver to complete the MicroSD card read and write operations. To complete the library card initialization and read-write, Arduino users can use the Arduino IDE, which comes with an SD card. The voltage Regulator and Level Shifter are the two main components of the micro SD card module. The onboard ultra-low dropout regulator converts 5V to 3.3V, while the Level Shifter converts the interface logic from 3.3V-5V to 3.3V.

Features:

  • The communication interface is a standard SPI interface
  • Supports micro SD car
  • 3.3V voltage regulator circuit board
Specification
Product Micro SD card Module
Function Push to insert/ Push to eject
Operating Voltage 4.5V – 5.5V
No. of Pins 06

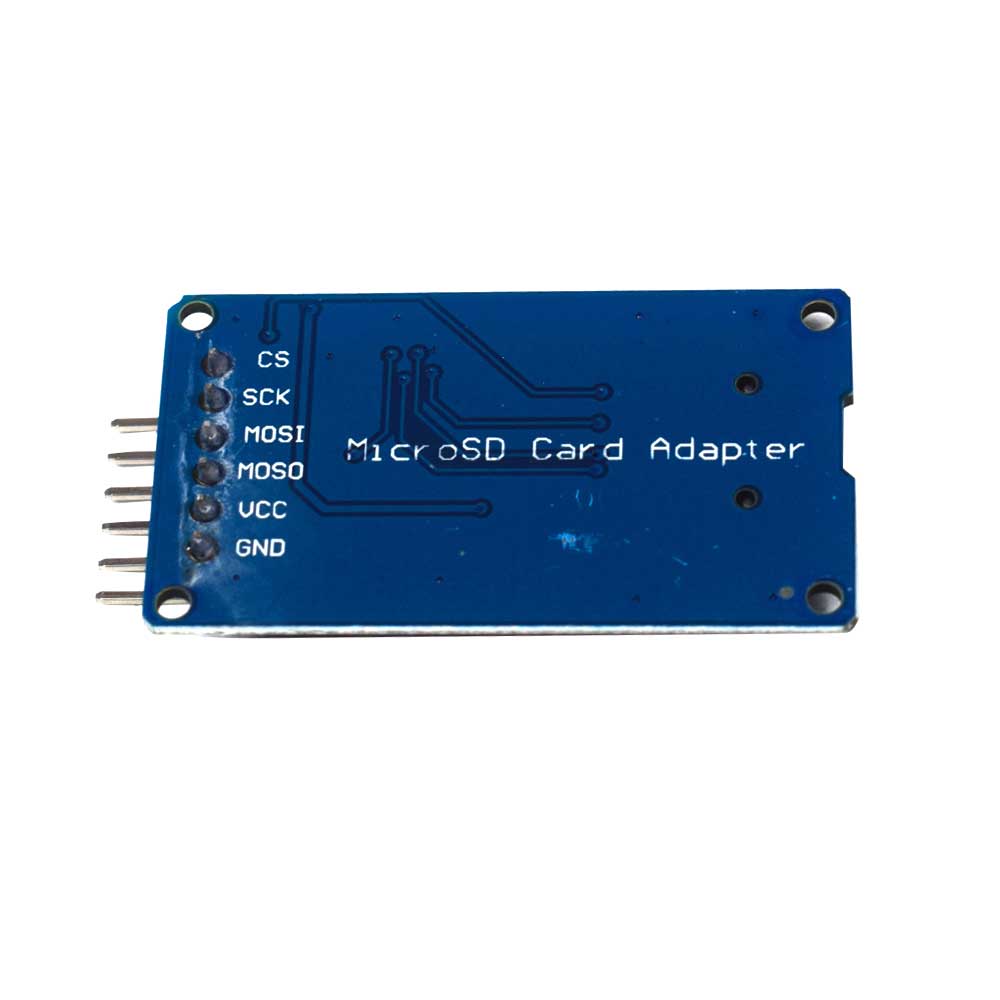

Control Interface GND, VCC, MOSO, MOSI, SCK, CS
Operating Temperature -25°C to +85°C
Positioning Holes 4 M2 screws positioning hole diameter of 2.2mm
Current 0.2~200mA
Size (H*W*D) (mm) 41.5*23.6*3.1 (mm)
Country of Origin China
