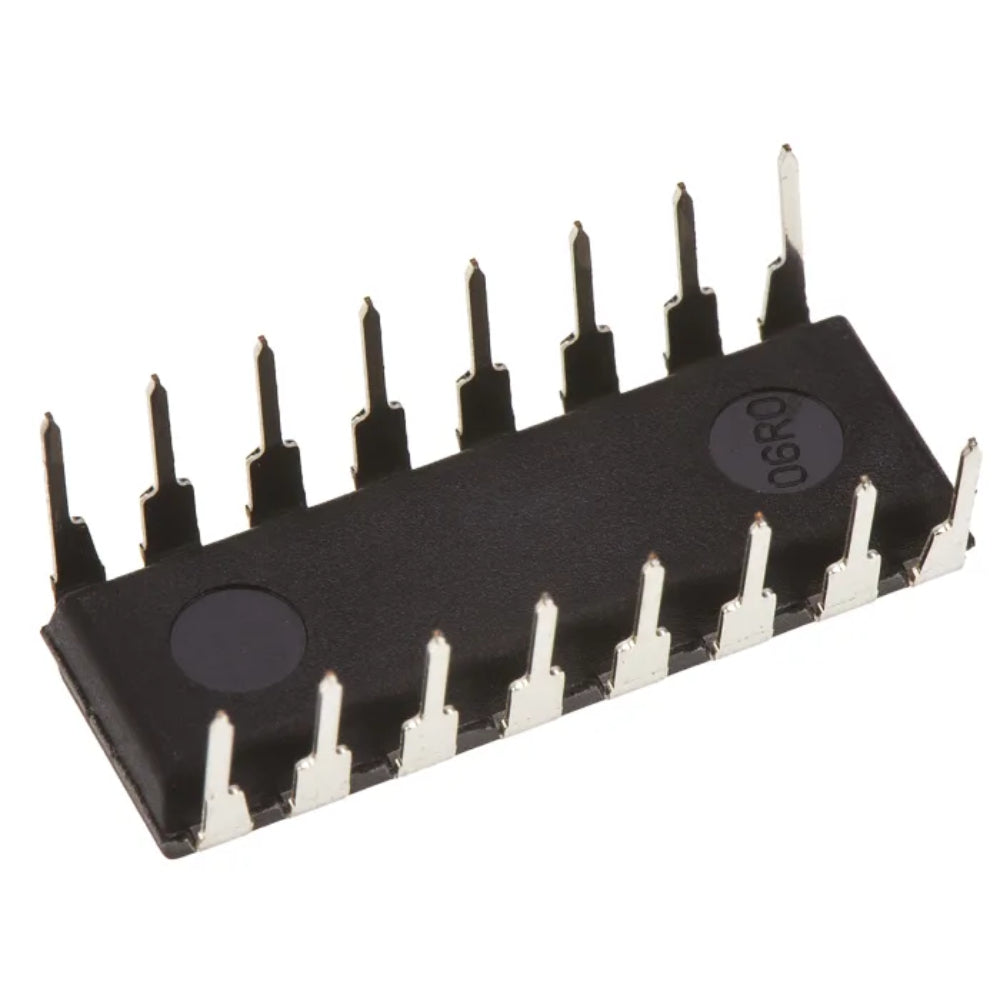

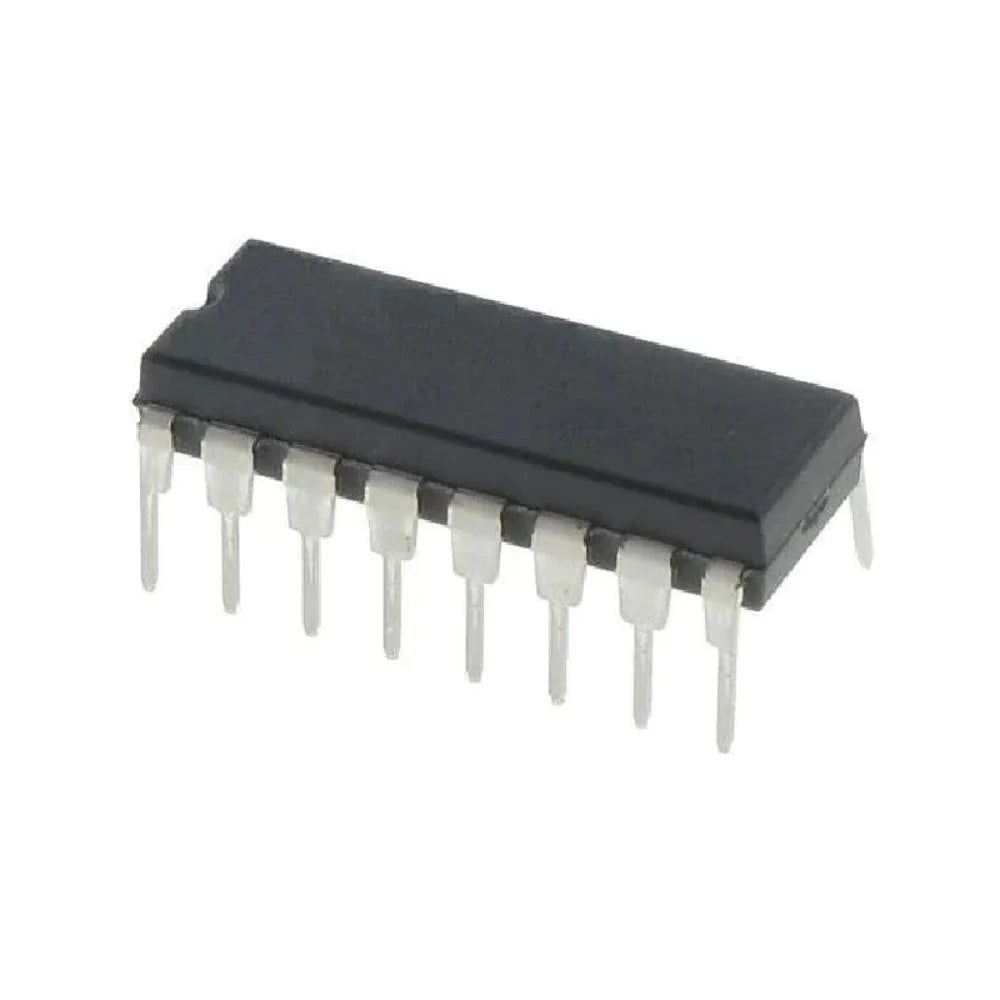

MAX3232 RS-232 Transceivers IC DIP-16

MAX3232 RS-232 Transceivers IC DIP-16

First Come First Serve Offer (T&C Apply )

20.58
39.00 20.58
Sale Sold out
Shipping calculated at checkout.

MAX3232 RS-232 Transceivers IC DIP-16

MAX232E is from the family of RS-232 and V.28 transceivers with high ?15kV ESD HBM protection and integrated charge pump circuitry for single 5V supply operation. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages.

Technical Details

  • Case/Package: SOIC-Narrow-16
  • Mount: Surface Mount
  • Number of Pins: 25
  • Max Operating Temperature: 85°C
  • Number of Channels: 16
  • Packaging: MouseReel
  • Min Operating Temperature: -40°C

Applications:

The MAX3232 is widely used in applications where RS-232 communication is needed, such as in interfacing microcontrollers with computers, sensors, or other embedded systems.

Usage Considerations: When using the MAX3232, it's important to consider the voltage levels of your system, the specific requirements of your RS-232 communication, and proper connections.

Features

  • RS-232 Bus-terminal esd protection exceeds ±15 kV using the human-body model (HBM)
  • Meets or exceeds the requirements of TIA/ EIA-232-F and ITU V.28 standards
  • Operates with 3-V to 5.5-V VCC supply
  • Operates up to 250 kbit/s
  • Two drivers and two receivers
  • Low supply current: 300 μA Typical
  • External capacitors: 4 × 0.1 μF
  • Accepts 5-V logic input with 3.3-V supply
  • Alternative high-speed terminal-compatible devices (1 Mbit/s) – SN65C3232 (–40°C to 85°C) – SN75C3232 (0°C to 70°C)

Physical Attributes

  • Weight (gm): 2

Package Includes

  • 1 x MAX3232 RS-232 Transceivers IC DIP-16
