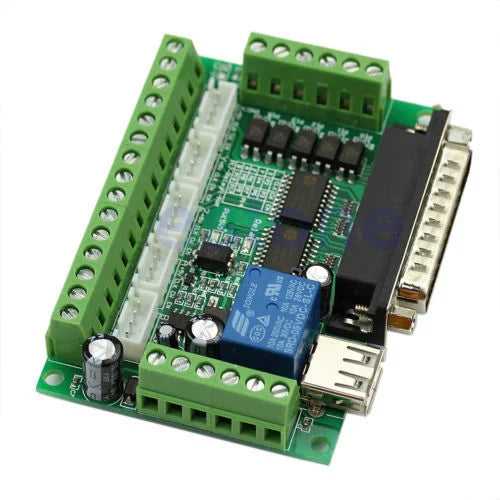

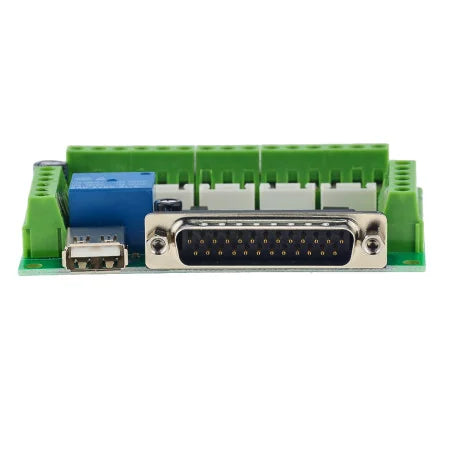

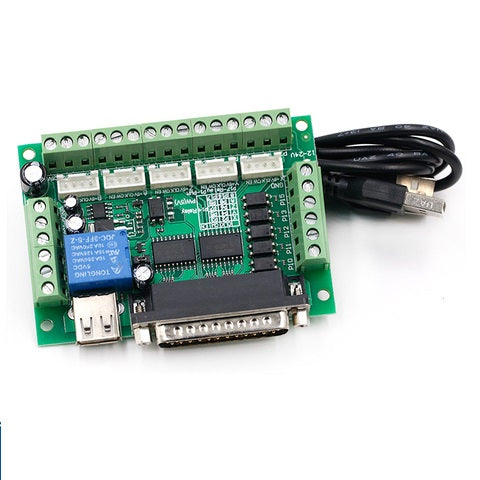

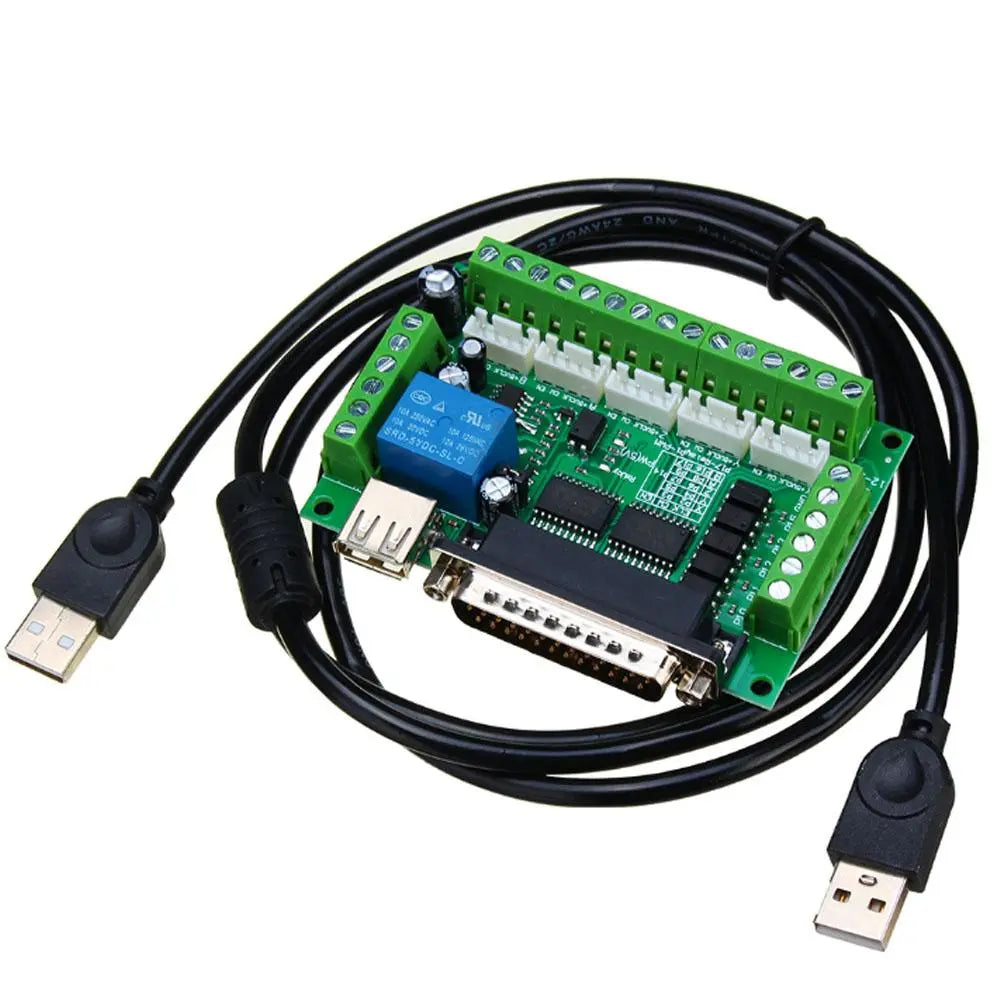

5-Axis CNC Breakout Board with Optocoupler for Stepper Driver Controllers

This latest upgrade 5-axis breakout board is designed for seamless control of CNC machines using 1-5 axis stepper driver controllers such as TB6560, M542, M542H, MA860H, and more. It is fully compatible with popular CNC control software like MACH3, EMC2, and KCAM4, making it an excellent choice for custom CNC setups.

The board is equipped with optocoupler isolation to ensure safe and stable operation by protecting your computer from electrical surges. With a wide input voltage range of 12-24V and anti-reverse protection, it offers flexibility in various setups. The integration of both USB power supply and peripheral power protection ensures added safety during use.

Key functions include controlling stepper motors, relays for spindles, and pumps via dedicated output ports. It also features a 0-10V analog voltage output for precise spindle speed control, accessible through an optocoupler-isolated interface.

Key Features:

  • 5-Axis Stepper Motor Support: Control up to 5 stepper motor driver controllers simultaneously.
  • Software Compatibility: Works with MACH3, EMC2, Linux CNC, and other parallel-control CNC software.
  • Optocoupler Isolation: Ensures protection of your computer and safe signal transmission.
  • USB and Peripheral Power Separation: Provides additional security by isolating power phases.
  • Versatile Input/Output Interface: Includes a 5-input interface for Limit, Emergency-Stop, and Cutter Alignment functions.
  • Wide Voltage Range: Supports input voltage of 12-24V with built-in anti-reverse function.
  • Relay Output Interface: Directly controls spindle motors, air pumps, and water pumps via the relay output.
  • 0-10V Analog Voltage Control: Allows spindle speed regulation with a corresponding analog interface converter.
  • PWM Output: Pin P1 acts as a PWM output, making it suitable for spindle governor control.

Note: The breakout board cable comes in two colors (black and white), and will be shipped randomly.
