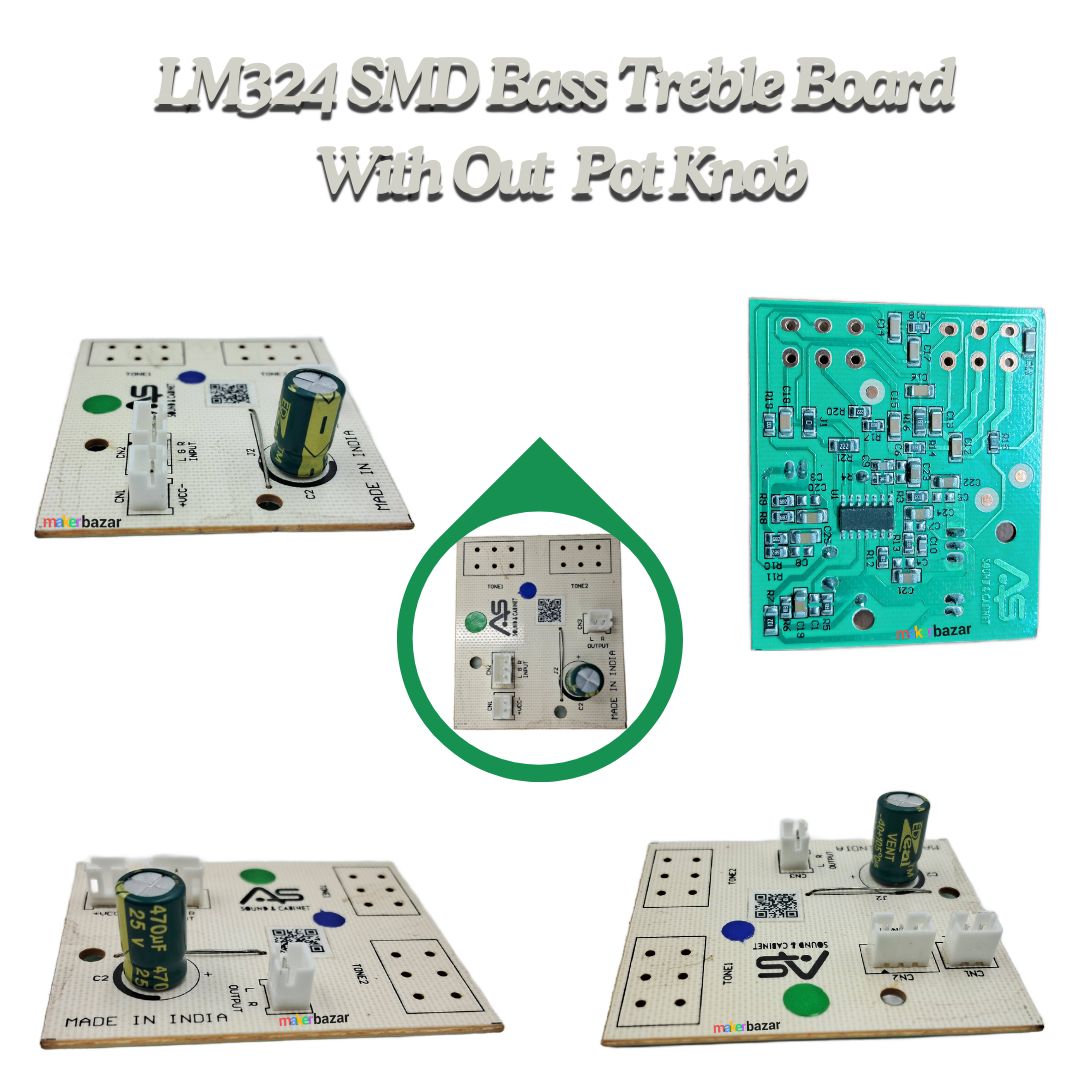

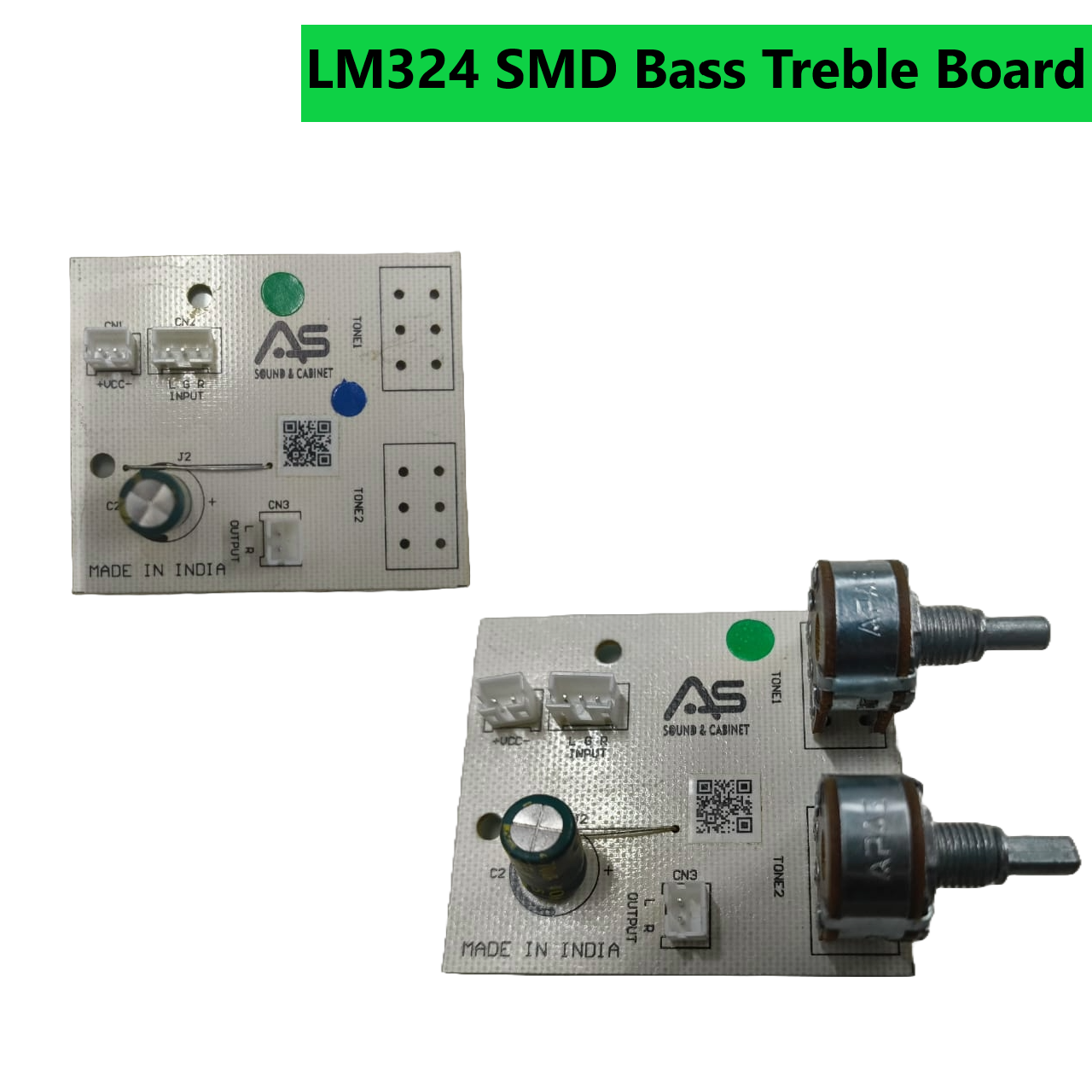

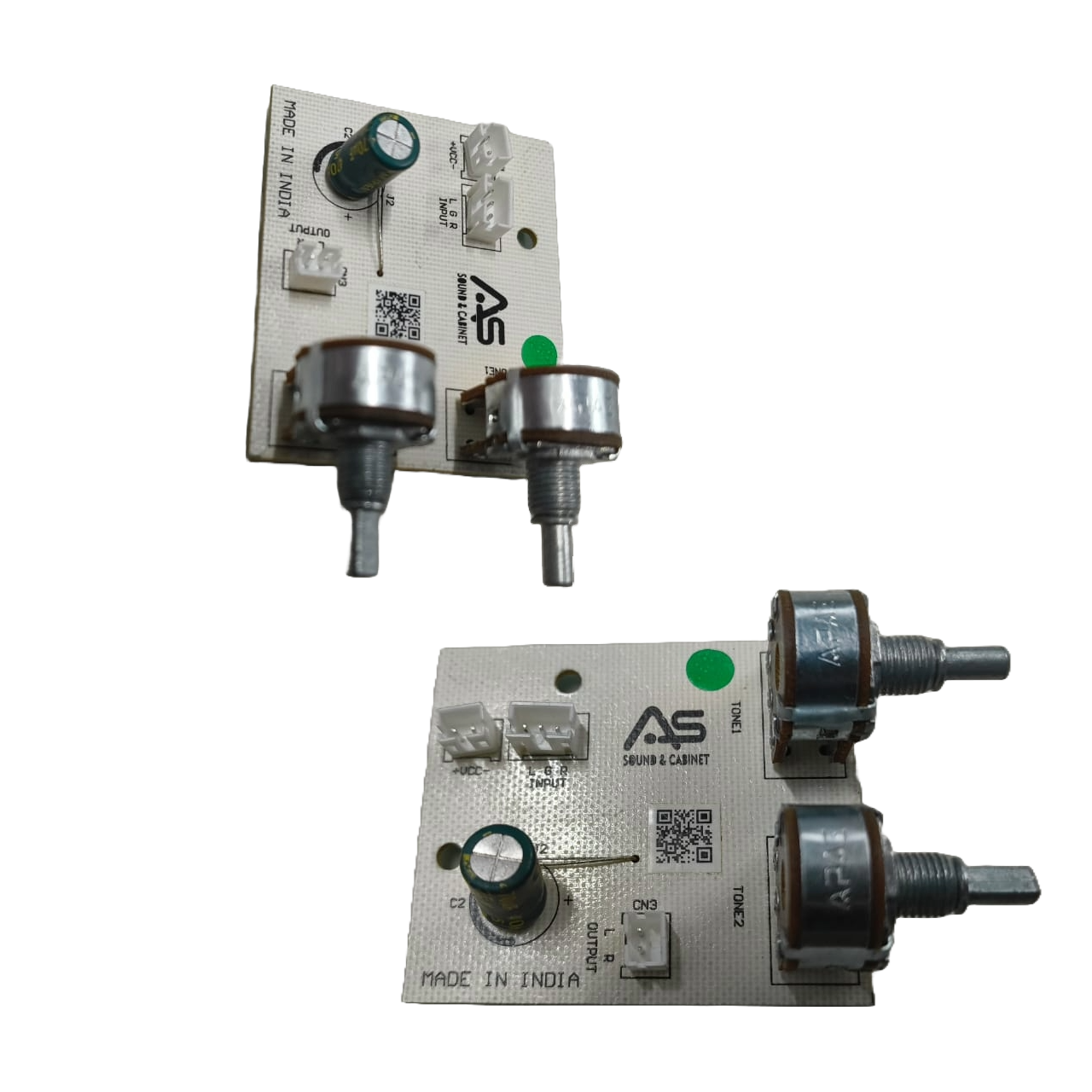

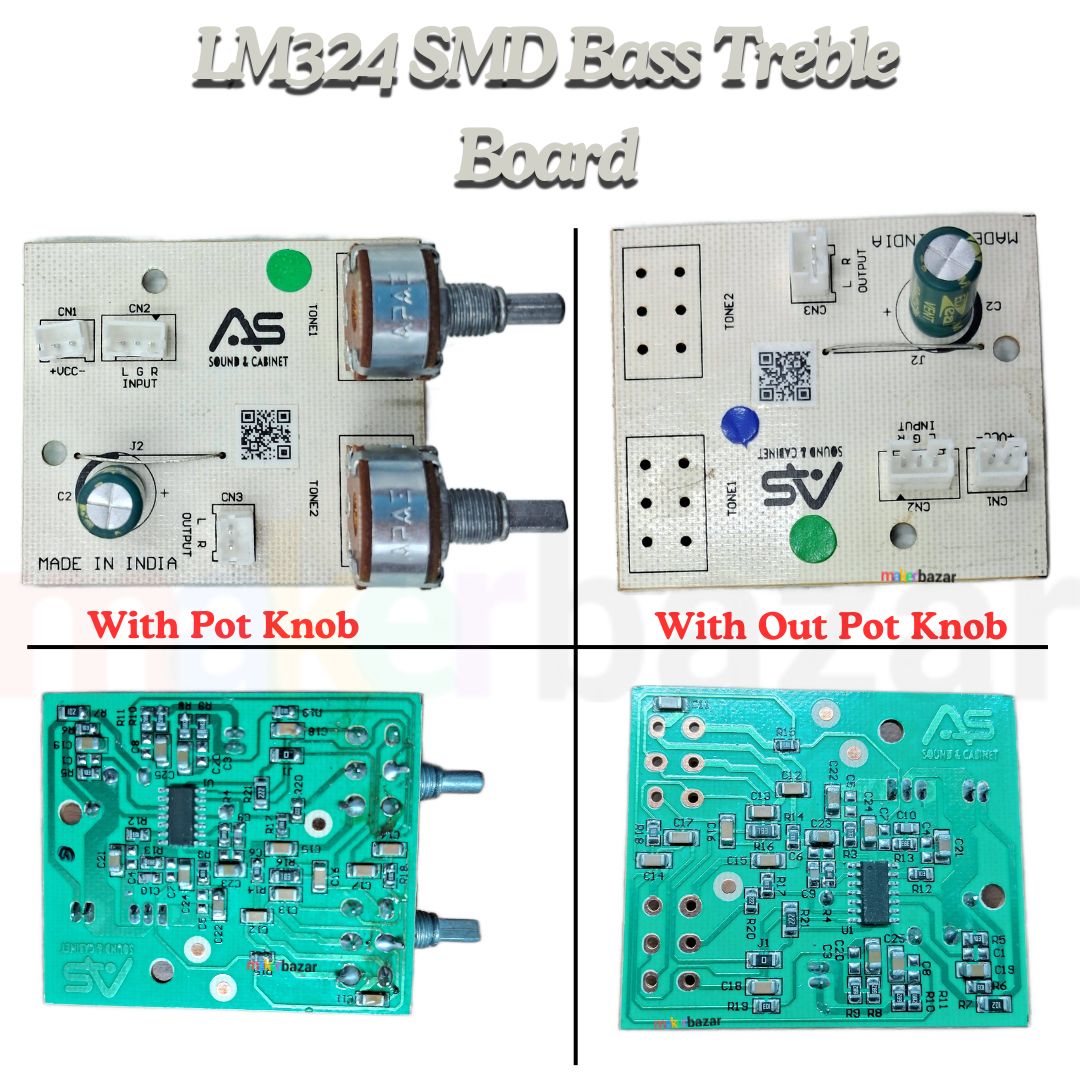

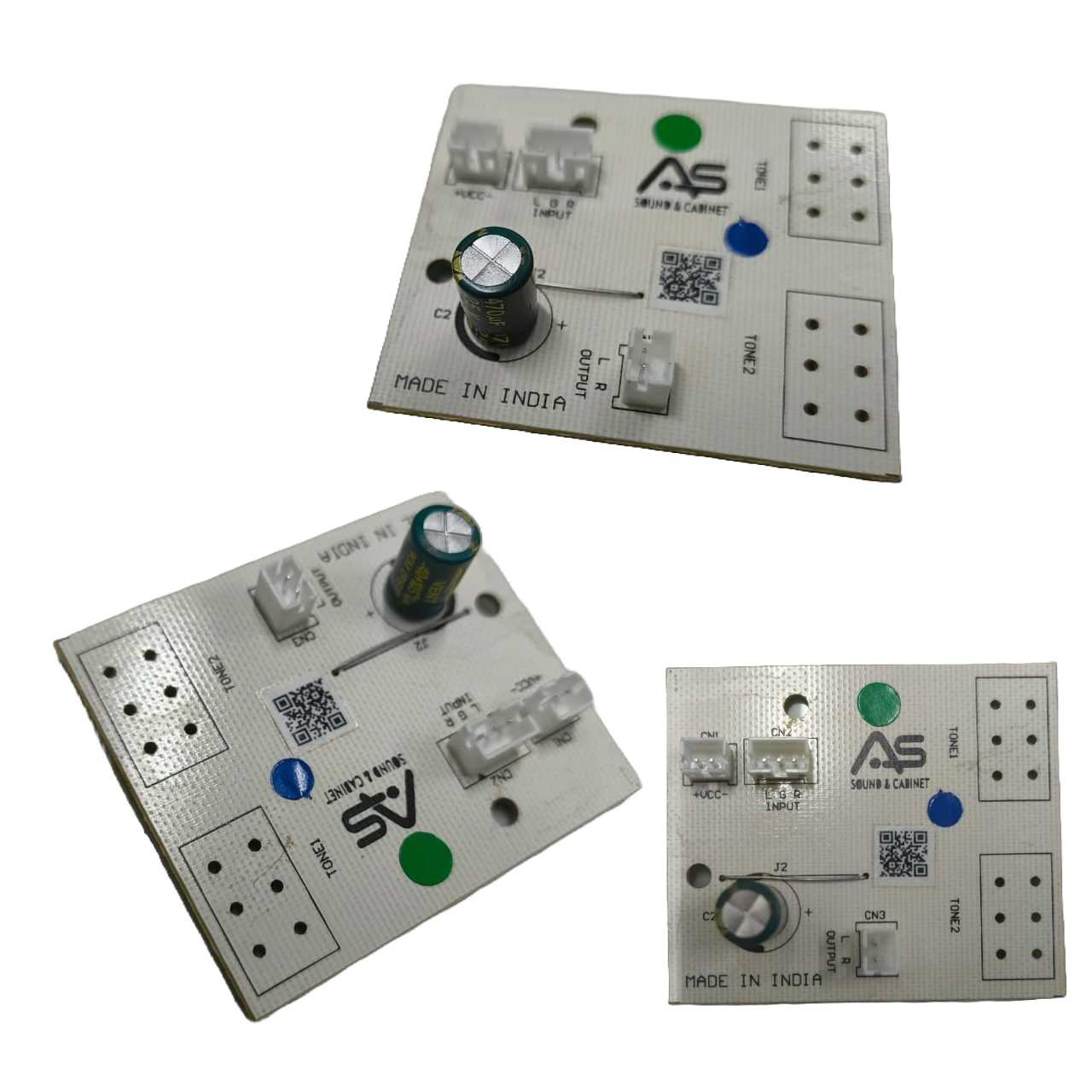

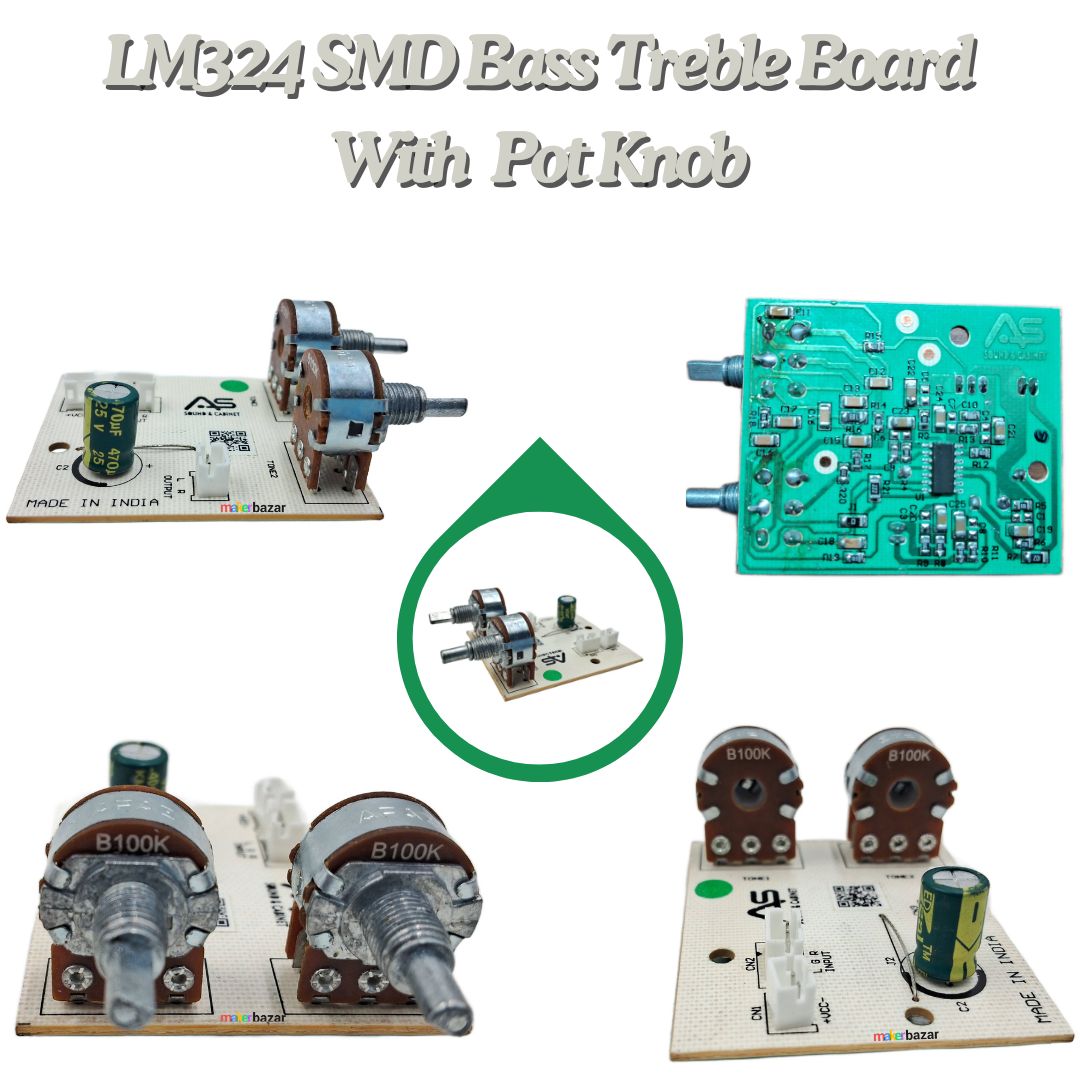

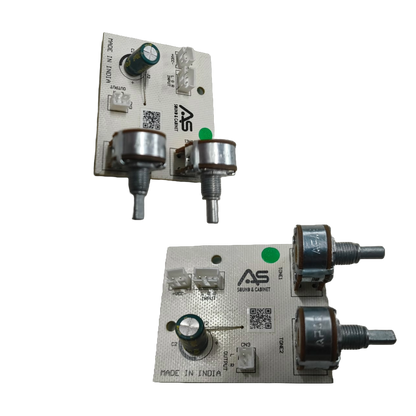

LM324 SMD Bass Treble Board

LM324 SMD Bass Treble Board

First Come First Serve Offer (T&C Apply )

146.02
146.02
Sale Sold out
Shipping calculated at checkout.
Model

SMD LM-324 BT Board 12V for Class D

Theย LM324 SMD Bass Treble Board is a compact and versatile audio preamplifier module designed to enhance sound quality by allowing precise adjustments of bass and treble frequencies. It is built around the LM324 operational amplifier in a surface-mount device (SMD) configuration, offering high performance in audio signal processing. Hereโ€™s a detailed description of its features and specifications:

Key Features:

  1. Adjustable Bass and Treble Control

    • Fine-tune low-frequency (bass) and high-frequency (treble) components to suit personal preferences or specific sound system requirements.

  2. High-Quality Signal Processing

    • Powered by the LM324 op-amp, known for its low power consumption and reliable performance, ensuring minimal distortion and noise.

  3. Compact SMD Design

    • Space-efficient design suitable for integration into custom audio projects or systems with limited space.

  4. Wide Voltage Range

    • Operates typically between 9V to 15V DC, making it compatible with various audio setups.

  5. PCB Design

    • Durable PCB with clear labeling for inputs, outputs, and control adjustments, simplifying installation and use.

  6. Low Total Harmonic Distortion (THD)

    • Ensures clean and accurate sound reproduction.

  7. Easy Integration

    • Input and output terminals are suitable for connecting external audio sources and speakers directly.

Technical Specifications:

  • Operational Amplifier: LM324 (quad op-amp with wide bandwidth).
  • Input Voltage: 9Vโ€“15V DC.
  • Input Impedance: High input impedance for minimal signal loss.
  • Output Impedance: Optimized for standard audio systems.
  • Bass Adjustment: ยฑ12dB (typically).
  • Treble Adjustment: ยฑ12dB (typically).
  • THD: < 0.05% (at typical settings).
  • SMD Components: Compact and lightweight design for modern applications.
  • Connector Type: Pin headers or solder pads (depending on the model).
  • Dimensions: Approx. 50mm x 30mm (varies by manufacturer).

Applications:

  • DIY Audio Projects
    • Ideal for enthusiasts building custom audio systems.
  • Portable Speaker Systems
    • Enhances audio performance in compact speaker setups.
  • Home Audio Systems
    • Provides an affordable solution for improving sound quality in stereo systems.
  • Car Audio Systems
    • Easily integrates into car amplifiers for personalized audio tuning.

This board is an excellent choice for audio enthusiasts and professionals seeking an affordable, easy-to-use solution for enhancing audio fidelity through bass and treble adjustments.
