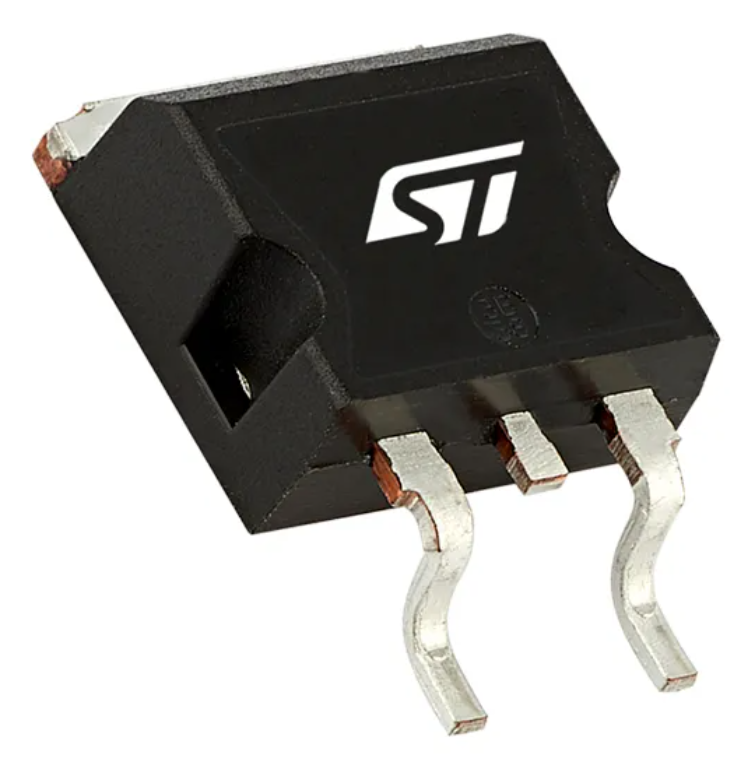

LM317 1.2V-37V Adjustable Voltage Regulator IC SMD

LM317 1.2V-37V Adjustable Voltage Regulator IC SMD

First Come First Serve Offer (T&C Apply )

38.22
0.00 38.22
Sale Sold out
Shipping calculated at checkout.

The LM317 is a monolithic integrated circuits in TO-220, TO-220FP, D²PAK and SOT223 packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.

Features

  • Output voltage range: 1.2 to 37 V
  • Output current in excess of 1.5 A
  • 0.1% line and load regulation
  • Floating operation for high voltages
  • Complete series of protections: current limiting, thermal shutdown and SOA control

Applications:

  • Power bank solutions
  • Motor Controls
  • Power Supply
  • Desktop PCs
  • DIY Prototyping

For More Info. Refer: Datasheet

Specifications
Model LM317D2T
Brand ST Microelectronics
Type Adjustable Voltage Regulator IC
Package Style SMD
Differential voltage 40V
Maximum load current 5mA
Operating junction temperature 0°C to 125°C
Storage temperature -65°C to 150°C
Country of Origin China
