LM2596S Input 5V-55V Output 1.25V -30V Upto 3A Adjustable

LM2596S Input 5V-55V Output 1.25V -30V Upto 3A Adjustable

First Come First Serve Offer (T&C Apply )

249.00
349.00 249.00
Sale Sold out
Shipping calculated at checkout.

LM2596S Input 5V-55V Output 1.25V -30V Upto 3A Adjustable

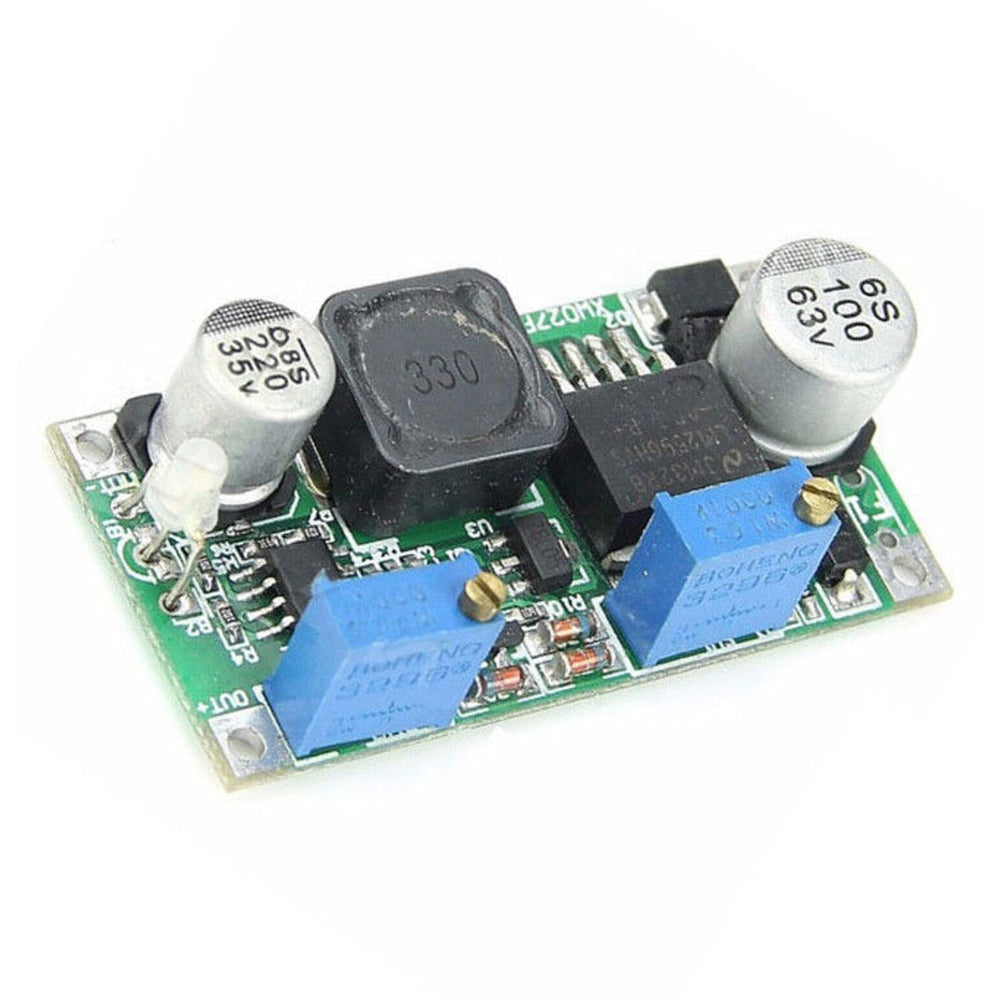

This DC/DC Constant Current / Constant Voltage Converter is a compact and efficient power module designed for various applications. Measuring 4.80 × 2.40 × 1.4 cm (1.89" × 0.94" × 0.55"), it supports an input voltage range of 5V to 57V, ensuring that the input is at least 2V higher than the output. The output voltage is adjustable between 1.25V and 30V, while the output current is rated at 2.5A, with a maximum of 3A (requiring a heat sink for optimal performance). The module delivers up to 15W of power at maximum voltage and features built-in short-circuit protection with constant current settings. It also includes input reverse polarity protection and allows for an adjustable constant current range of 0.2A to 3A, with a default setting of 1A. Additionally, the turn lamp current is linked to the constant current value, calculated as constant current × 0.1, enabling reliable status indication.

Technical Details

  • Stepless adjustment of the output voltage
  • Stepless adjustment of the output current
  • LED indicator: Red under load / Green on load free
  • Multiturn potentiometer with long life
  • Up to 1.5V (Typ. 1.16V) difference between input and output voltages
  • Up to 2.5A output current
  • Very low power consumption at idle (about 10mA)
  • Temperature protection
  • Input voltage up to 60V
  • High stability of the output voltage
  • High efficiency
  • No additional cooling needed up to 2.2A

Features

  • Very low idle power consumption (about 10mA)
  • Temperature protection
  • Input voltage up to 60V
  • High output voltage stability
  • No additional cooling required up to 2.2A
  • High-frequency DC/DC conversion for compact size

Applications :

  • Charger for all batteries (1.23V ~ 28V) with precise voltage and current settings
  • High conversion efficiency for car use
  • Adjustable laboratory voltage source
  • LED driver with constant current
  • Dimming devices
  • Laboratory power supply

Physical Attribute

  • L X W X H (mm) : 22 X 17 X 4

Package Includes

  • 1 x LM2596S Input 5V-55V Output 1.25V -30V Upto 3A Adjustible
