LM2596S Input 5.5V-35V Output 0V-30V Upto 3A Adjustible

LM2596S Input 5.5V-35V Output 0V-30V Upto 3A Adjustible

First Come First Serve Offer (T&C Apply )

349.00
489.00 349.00
Sale Sold out
Shipping calculated at checkout.

Key operation instructions:

When the button is pressed, the output voltage changes by 0.2V at a time . The output adjustment range is 0~30V . Press and hold the button for more than 1.5 seconds , the voltage changes at a rate of 1V per second . Realize a key regulator voltage fast transfer and slow transfer function.

When the button is released for 2 seconds without pressing the button, the currently set output voltage implements the power-down memory function. The voltage value that was last set after the next power-on.

If the output voltage is always equal to the input voltage, you can continue to press “-” to make the set voltage value less than the output voltage, you can see the voltage regulation effect.

The left button is the output voltage plus button, and the right button is the output voltage minus button.

Technical Details

  • Input Voltage: DC 5.5V to 35V (the input voltage must be at least 1.5V higher than the output voltage)
  • Output Voltage: DC 0V to 30V, continuously adjustable (minimum adjustment accuracy 0.2V, factory default 10V)
  • Indicator: Below 2V output the indicator will not light (red LED forward voltage is about 1.8V)
  • Output Current: Up to 3A; for long-term operation, it is recommended to use current within 2.5A
  • Heat Sink: For currents exceeding 2A, a heat sink (10W or more) is recommended
  • Conversion Efficiency: Up to 92%
  • Working Frequency: 65KHz
  • Working Temperature: -45°C to +85°C

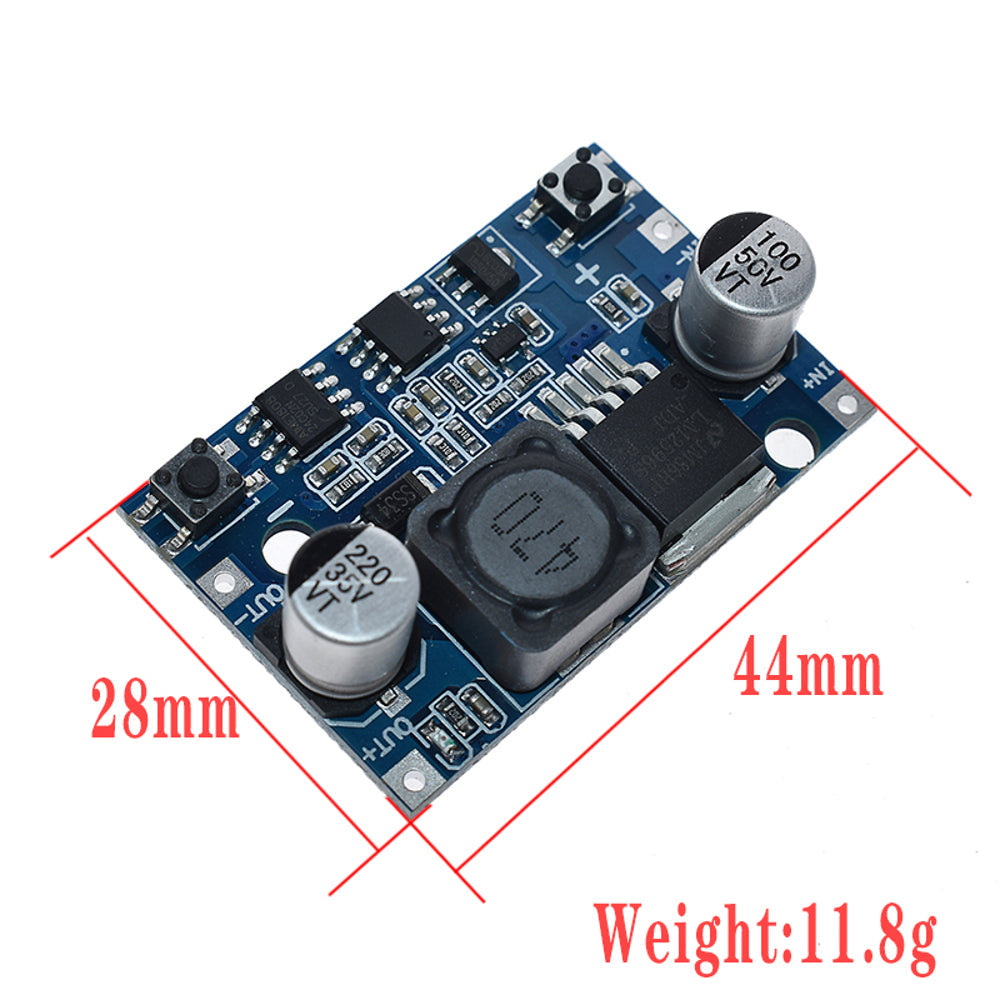

  • Product Size: 43.5 x 28 x 14mm

Features

  • Continuously adjustable output voltage
  • Minimum adjustment accuracy of 0.2V
  • Output indicator light for voltage status
  • Supports up to 3A output current
  • Requires heat sink for outputs above 2A
  • High conversion efficiency up to 92%
  • Operates at a working frequency of 65KHz
  • Wide operating temperature range: -45°C to +85°C
  • Compact product size: 43.5mm × 28mm × 14mm

Application

This module can be applied to the buck field where the input voltage is higher than the output voltage, such as battery, transformer, DIY adjustable power supply, 24V car pen power supply, industrial equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V , 24V to 12V, 36V to 24V, etc.
DIY mobile power, monitor power supply, power buggies, camera power supply, car, communication equipment supply, various appropriate size and weight for demanding applications (such as aviation models, etc.).

Physical Attribute

  • Compact product size: 43.5mm × 28mm × 14mm

Package Includes

  • 1 x LM2596S Input 5.5V-35V Output 0V-30V Upto 3A Adjustable
