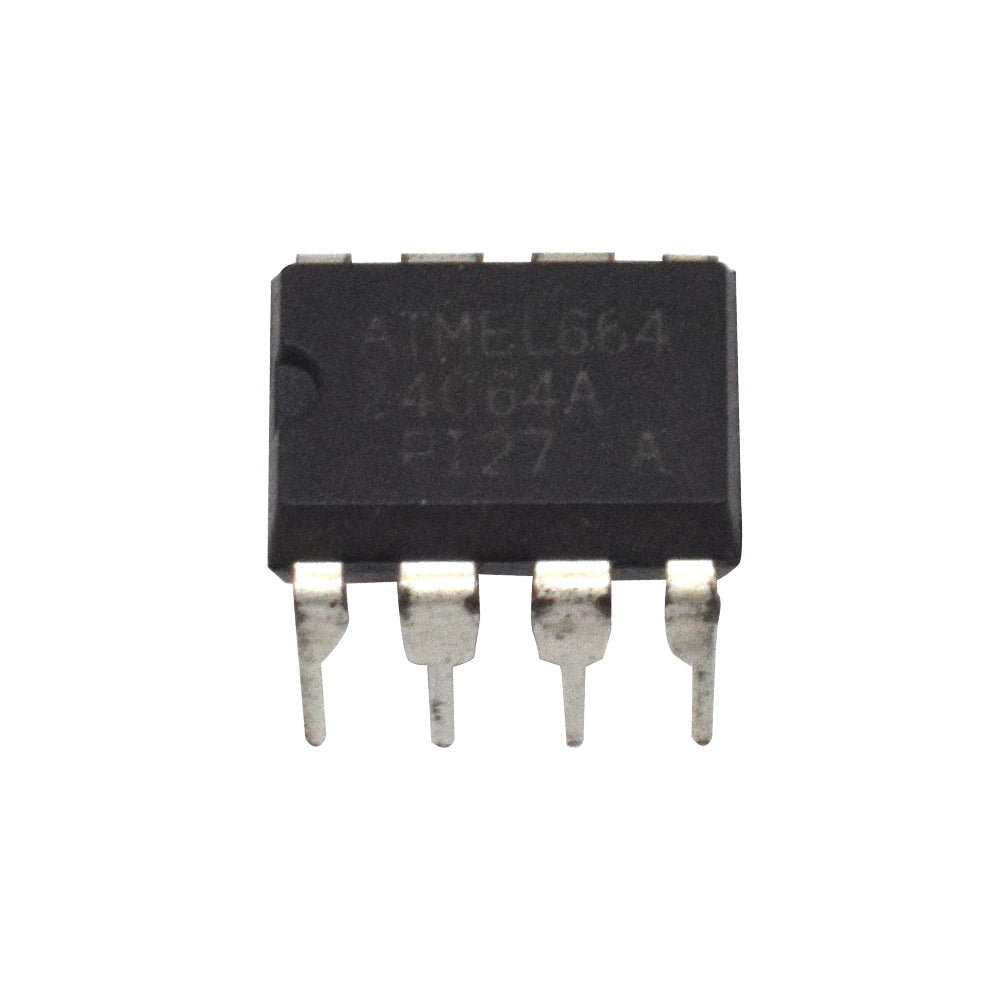

L66424C64API27 Bus Interface Serial EEPROM IC

L66424C64API27 Bus Interface Serial EEPROM IC

First Come First Serve Offer (T&C Apply )

10.68
0.00 10.68
Sale Sold out
Shipping calculated at checkout.

A 64Kbit CMOS non-volatile serial EEPROM called the 24C64 is set up as 8K x 8 bit memory. The Extended IIC2-wire protocol, which this device confirms to, permits access to memory larger than 16K bits on an IIC bus. This serial communication protocol synchronizes data between a master (such as a microcontroller) and a slave using a Clock signal (SCL) and a Data signal (SDA) (EEPROM). The 24C64 is made to reduce pin count and ease PC board layout requirements. 24C64 offers hardware write protection where by entire memory array can be write protected by connecting WP pin to VCC This section of memory then becomes unalterable until the WP pin is switched to VSS.

Features

  • Its extended operating voltage is 2.2V to 5.5V

  • Its clock frequency up to 400KHz at the 2.2 to 5.5V

  • It has schmit trigger input

  • It has 32 byte page write mode
  • It has self timed write cycle
  • It has hardware write protection for the entire away
Specification
Model L66424C64API27
Type EEPROM IC
Package 8 Pin DIP
 No of pin 8
Input rise and fall time 10nS
SDA and SCL rise time 0.3 Microsecond
SDA and SCL fall time 300nS
Write cycle time 6nS
Country of Origin China
