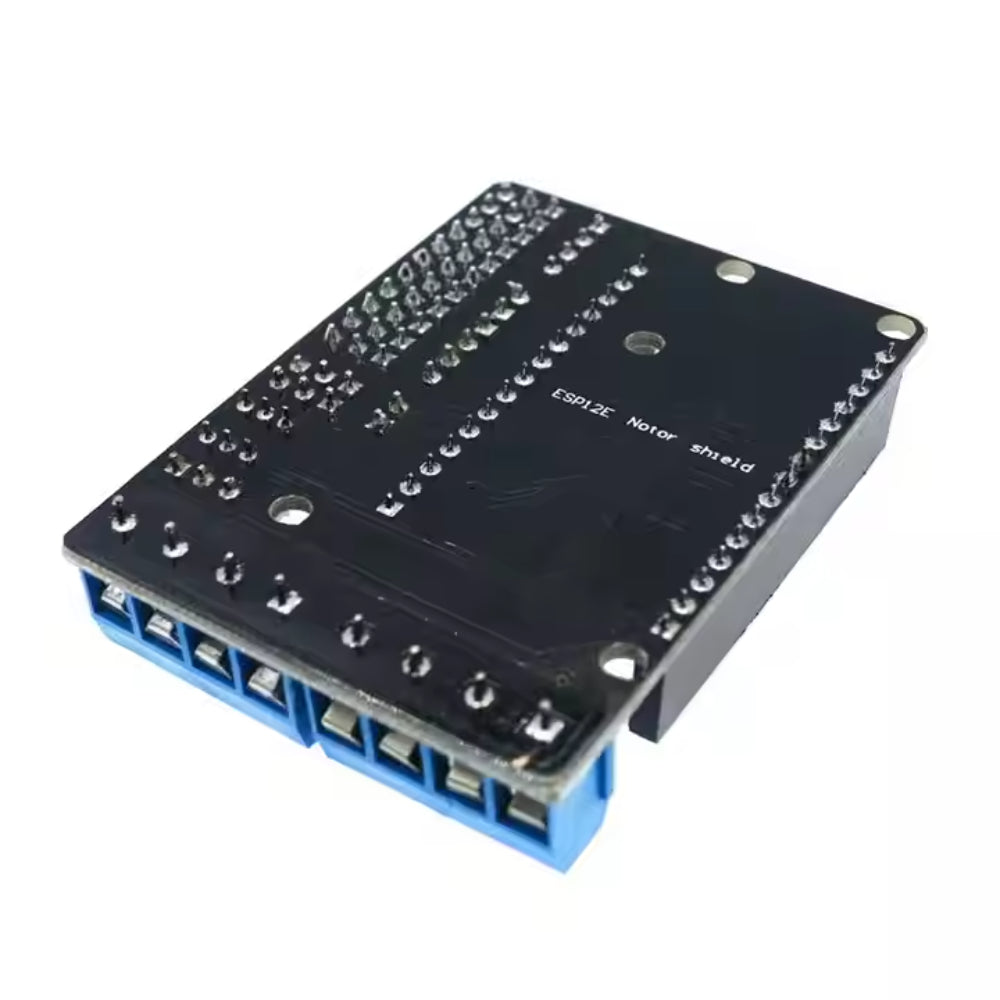

L293D Motor Driver Board for ESP8266 CH340 WiFi NodeMcu Lua ESP12E

L293D Motor Driver module is compatible with ESP12E Dev Kit and NodeMCU. This shield board is driven by the power full-bridge chip L293DD which can directly drive 2-channels DC motors or one-channel stepper motor. In this motor shield board, the IO port of the ESP-12E Dev Kit is used as the control port. The logic chip configured inside can finish IC driven. Thus, the shield board has four ports: D1, D2, D3, and D3, which are used as PWMA(motor A), PWMB (motor B), DA (direction of motor A), and DB (direction of motor B), respectively. In addition, this shield board has many pins, such as VIN, 3.3V, DIO, AIO, SDIO, UART, SPI, RST, and EN, thus can conveniently connect all kinds of sensors (e.g., temperature and humidity, buzzer, light, relay sensor, etc.)

Technical Details

  • Item Type: L293D Motor Driver
  • Current Rating (A): 1.2
  • Voltage Rating (V): 4.5 to 36
  • Motor Power Supply Range: 4.5V ~ 36V
  • Control Voltage Range: 4.5V ~ 9V (10V MAX)
  • Logical Current (mA): ≤60mA
  • Drive Current (A): ≤1.2A
  • Max. Power (W): 4W
  • Drive Type: Dual high-power H-bridge driver
  • Operating Temperature (°C): -25 ℃ ~ +125 ℃
  • Dimensions (L x W x H) mm: 60 x 45 x 13
  • Weight (g): 20

Features

  • ESP12 DEV KIT development board expansion module
  • Leads out all ESP12 DEV KIT pin features: SPI, UART, GPIO, AI, and 3.3V power connector
  • Extends two-way motor driving capability
  • Supports two-way direct-drive motor control
  • Onboard power switch
  • Motor power and control power are separated

Applications :

  • Compatibility: Compatible with ESP8266-based development boards
  • Motor Driver: Integrates L293D dual H-bridge motor driver
  • Interfaces: Supports SPI, UART, GPIO, and AI interfaces
  • Power Control: Onboard power switch for easy control
  • Power Separation: Motor power and control power separation for stable performance
  • Use Cases: Ideal for IoT and robotics applications

Physical Attributes

  • Dimensions (L x W x H) mm: 60 x 45 x 13
  • Weight (g): 20

Package Includes

  • 1 x L293D Motor Driver Board for ESP8266 CH340 WiFi NodeMcu Lua ESP12E
