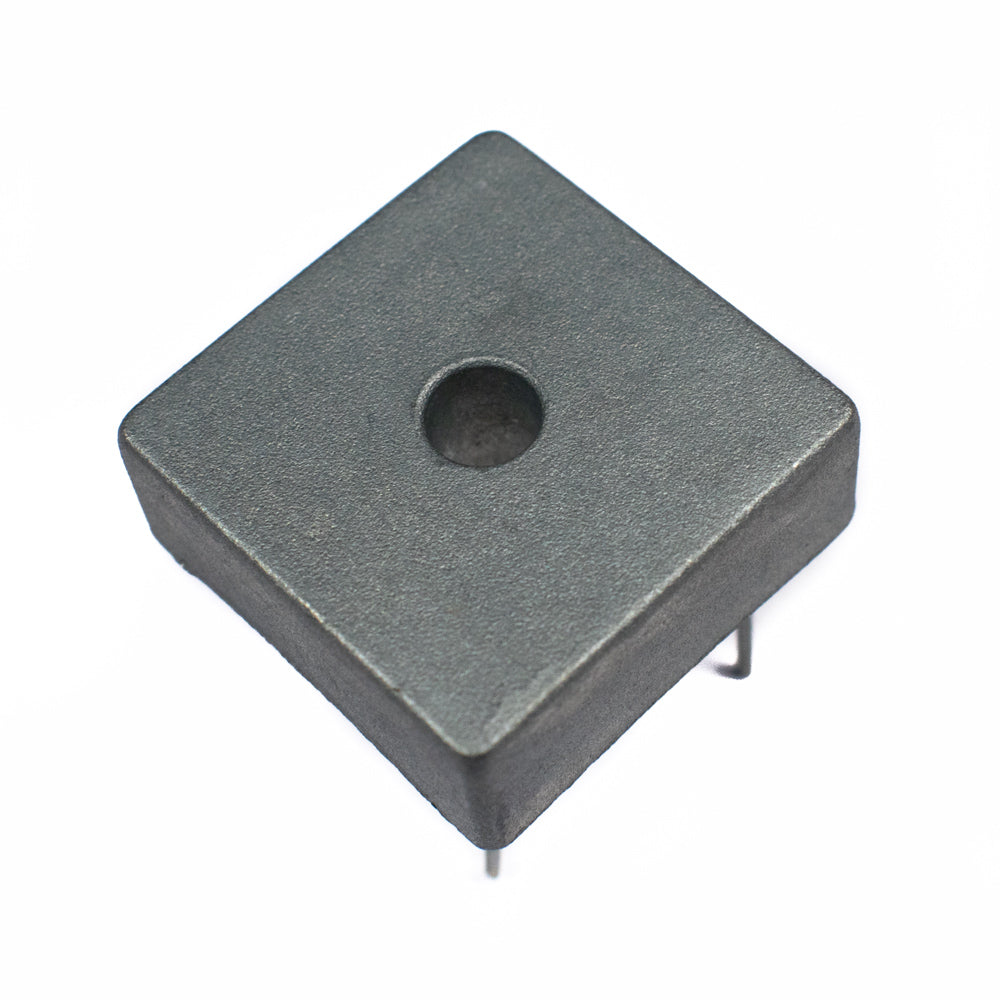

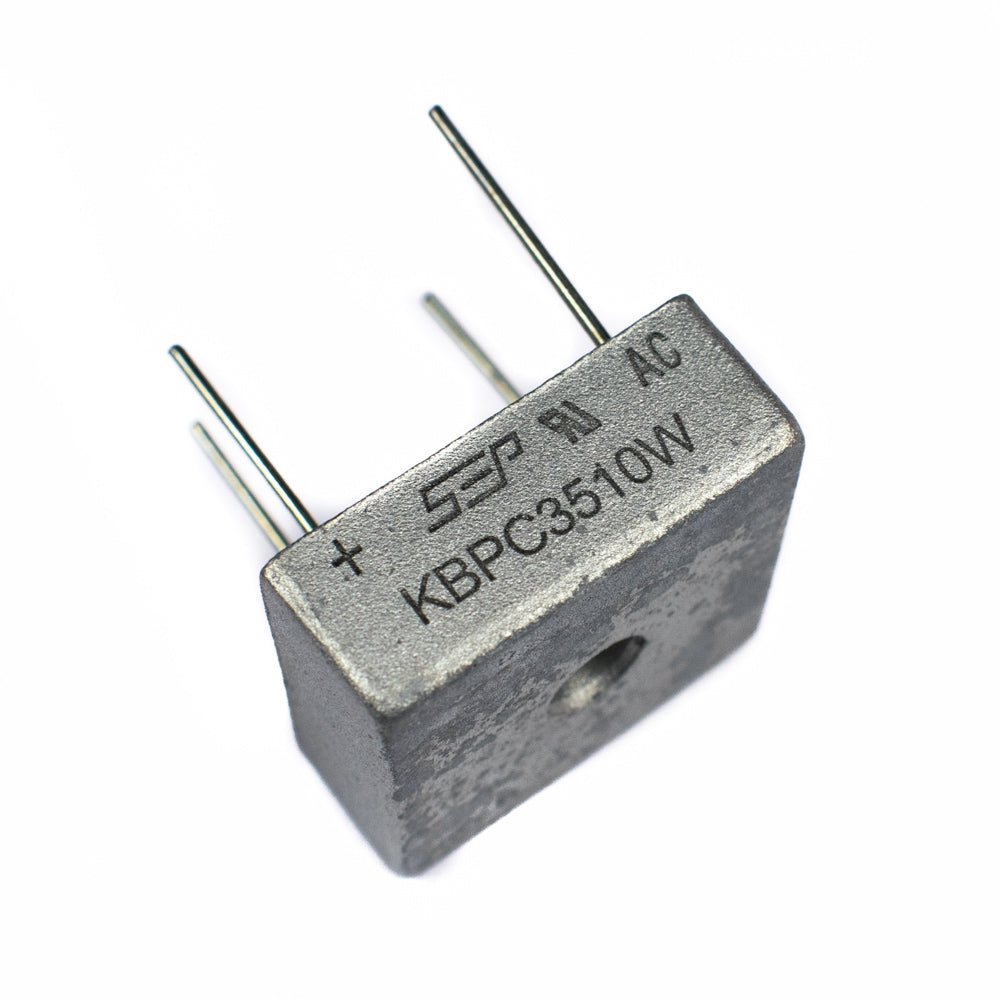

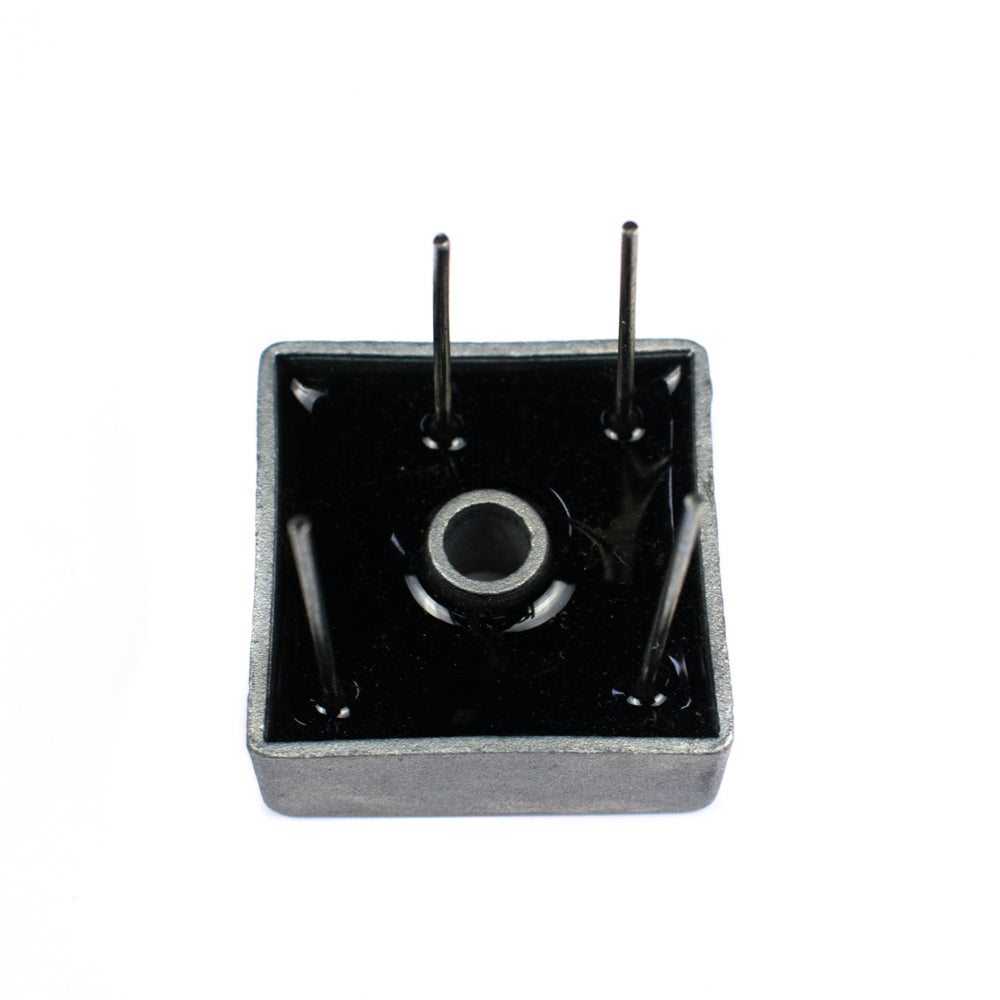

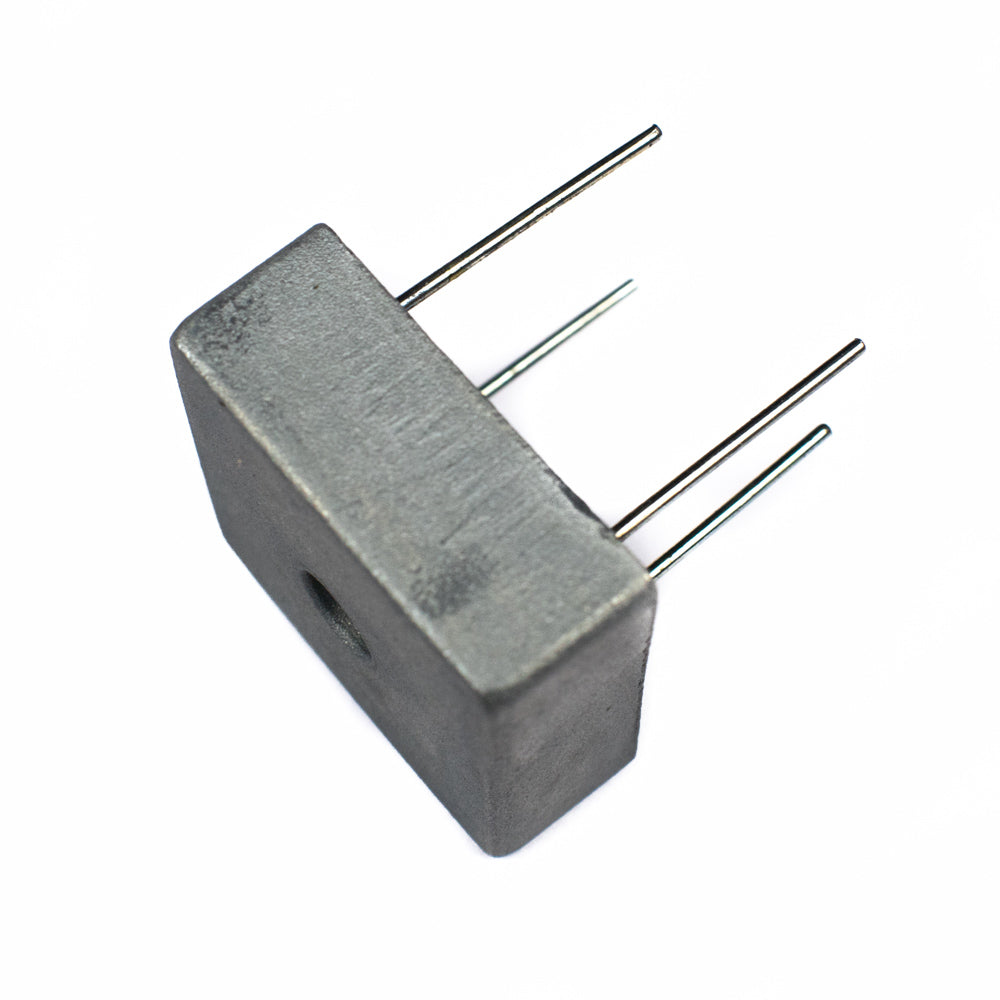

KBPC3510 35A 1000V Single-Phase Bridge Rectifier

KBPC3510 35A 1000V Single-Phase Bridge Rectifier

First Come First Serve Offer (T&C Apply )

90.16
0.00 90.16
Sale Sold out
Shipping calculated at checkout.

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice.

Pinout

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input

Features:

  • Diffused Junction
  • Low Reverse Leakage Current
  • Low Power Loss, high efficiency
  • Surge overload rating to 400A Peak
  • Electrically Isolated Metal Case for Maximum Heat Dissipation
  • Case to Terminal Isolation Voltage 1500V
Specifications

Input Voltage

50-1000V

Maximum RMS Bridge Input Voltage

700V

Maximum DC Blocking Voltage

1000V

Maximum Average Forward Output Current

35A

Maximum Forward Voltage

1.2V

Operating Temperature Range:

-55°C to + 150°C

Dimensions

 28mm x 28mm x11mm
Country of Origin China
