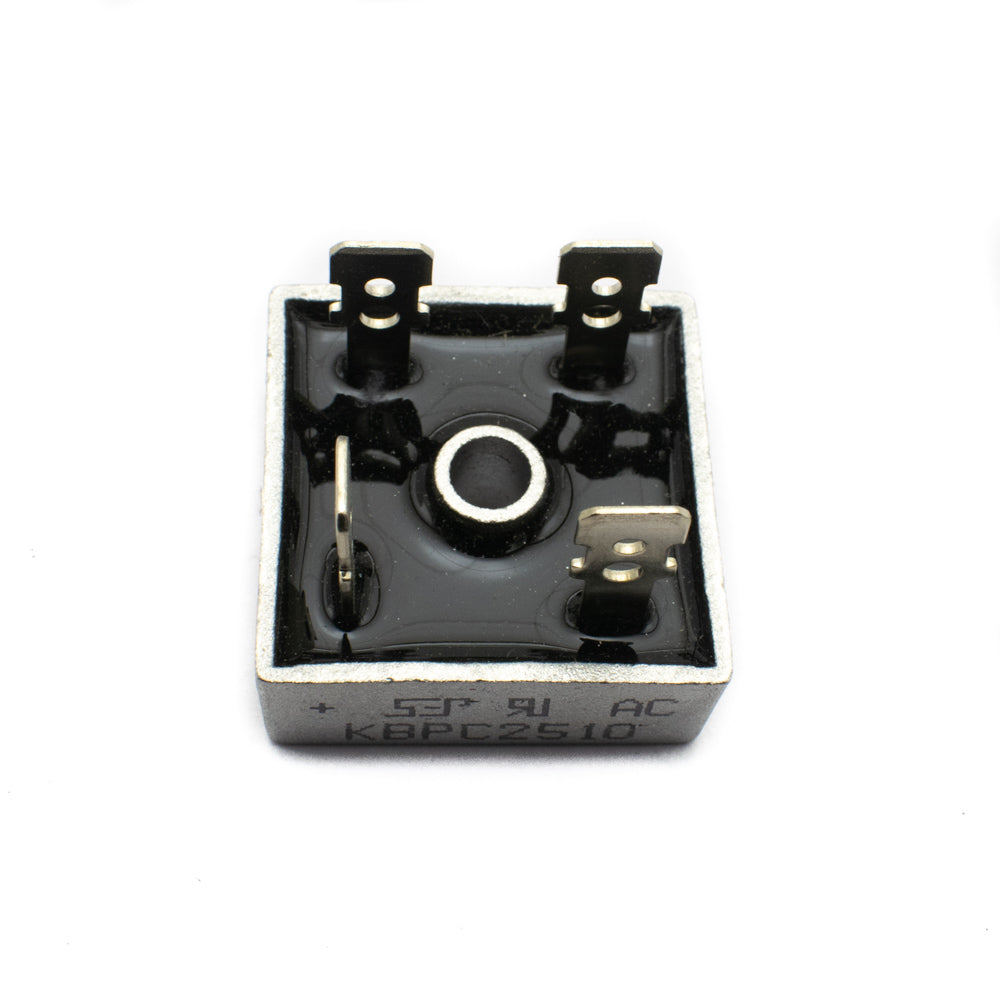

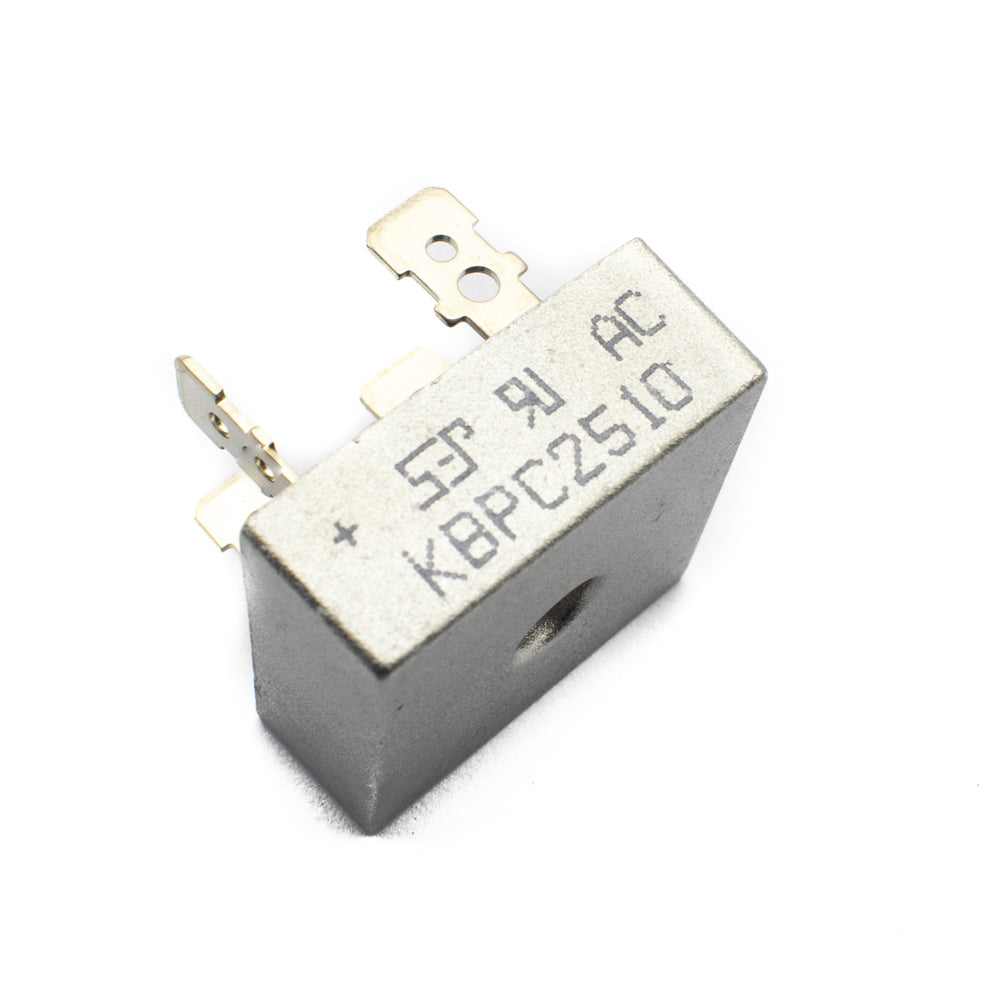

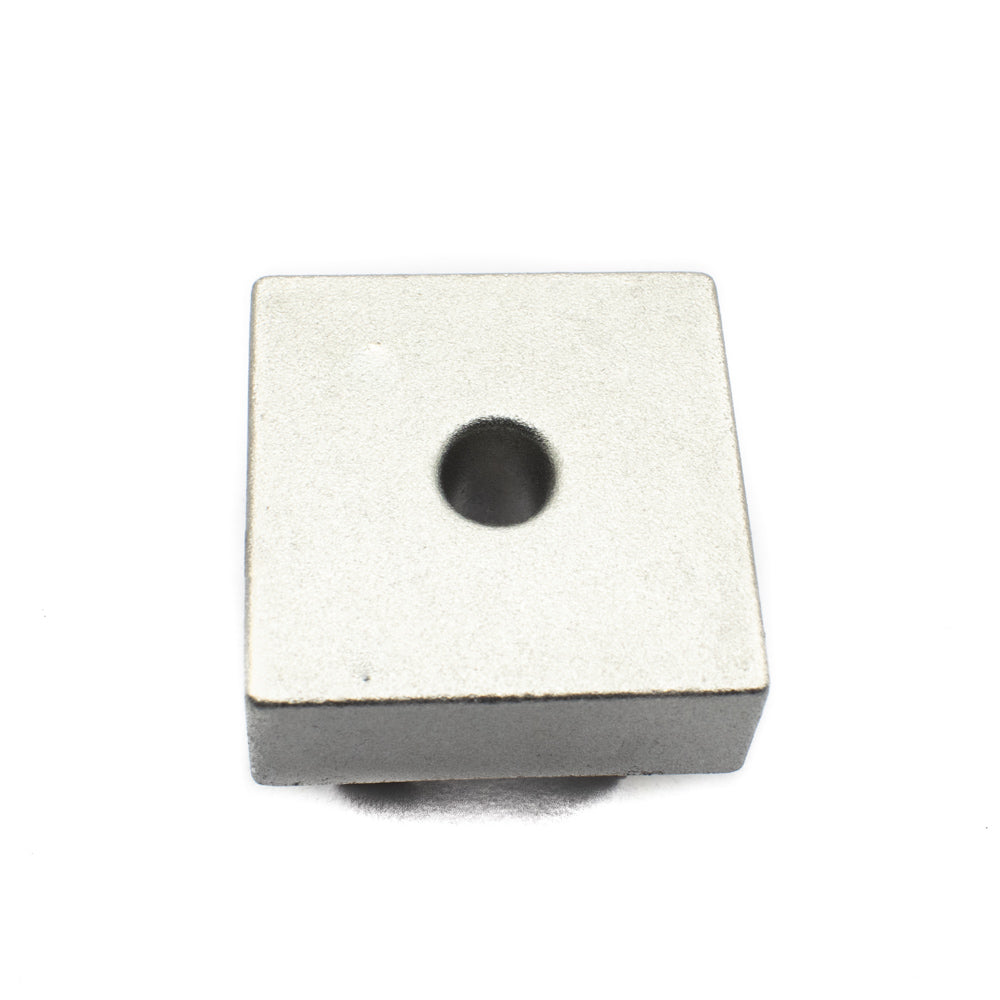

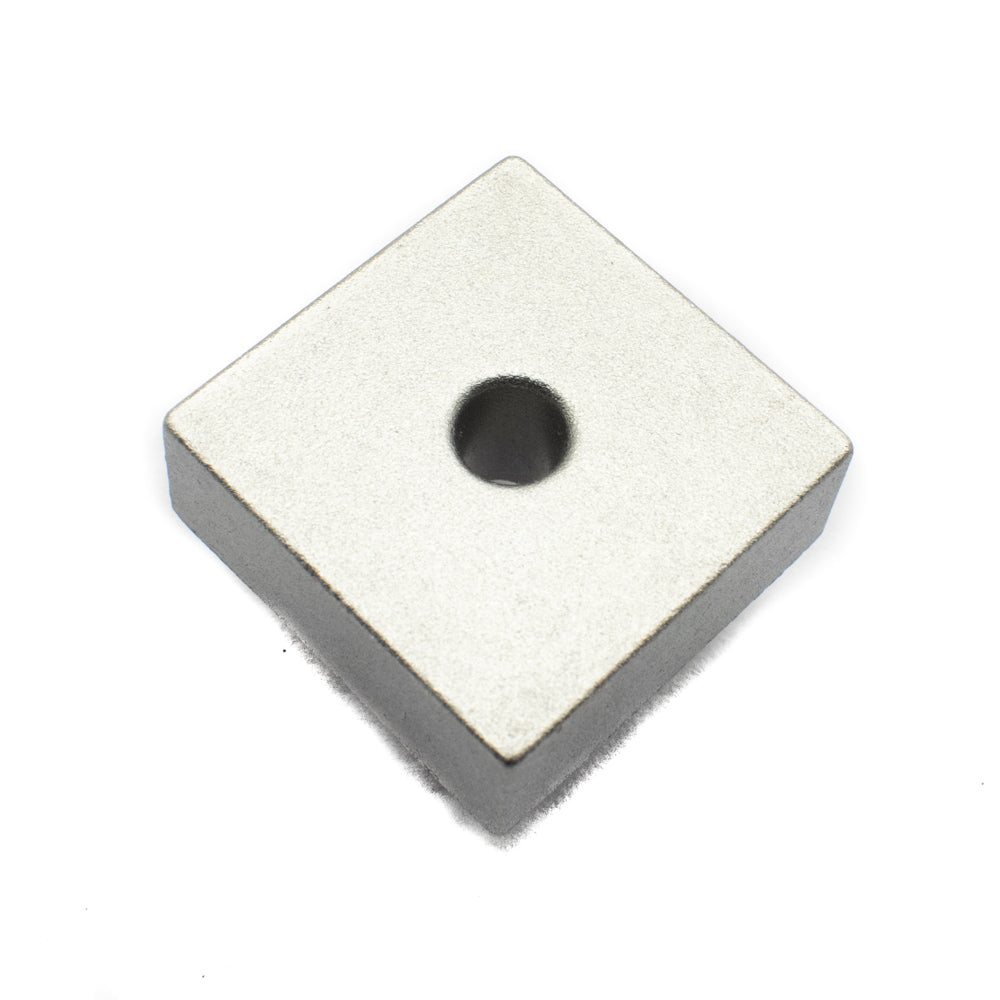

KBPC2510 25A 1000V Single-Phase Bridge Rectifier

KBPC2510 25A 1000V Single-Phase Bridge Rectifier

First Come First Serve Offer (T&C Apply )

31.36
0.00 31.36
Sale Sold out
Shipping calculated at checkout.

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 25A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 300A. If you are looking for a compact IC for rectification application this can be a good choice.

Pinout

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input

Features:

  • Low cost
  • This series is UL recognized under component index, file number E127707
  • 300A forward surge current capability
  • Low thermal resistance.
  • High isolation voltage from case to lugs.
  • High-temperature soldering guaranteed: 260/10 second, at 5 lbs. (2.3kg) tension
Specifications
Input Voltage 1000V
Maximum RMS Bridge Input Voltage 700V
Maximum DC Blocking Voltage 1000V
Maximum Average Forward Output Current  25A
Maximum Forward Voltage 1.1V
Operating Temperature Range -65°C to + 150°C
Dimensions  28.5mm x 28.5mm x 23.4mm
Country of Origin China
