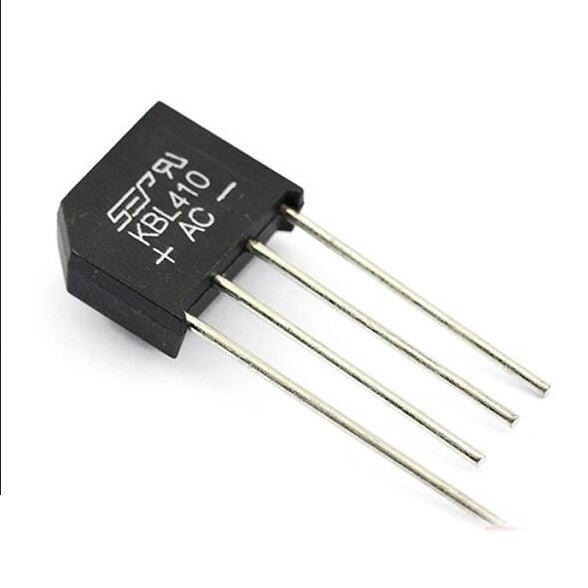

KBL410 1000V, 4A Single Phase Bridge Rectifier

KBL410 1000V, 4A Single Phase Bridge Rectifier

First Come First Serve Offer (T&C Apply )

12.54
0.00 12.54
Sale Sold out
Shipping calculated at checkout.

The KBL410 is a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 4A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a surge current capability of 200 A. If you are looking for a compact IC for rectification application this can be a good choice.
This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.

Features

  •  High current capability
  •  High surge current capability
  •  High reliability
  •  Low reverse current
  •  Low forward voltage drop
  • Ideal for printed circuit board
Specification
Model KBL410
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1000 V
RMS Reverse Voltage VR(RMS) 700 V
Maximum DC Blocking Voltage 1000V
Average Forward Rectified Output Current 4A
Peak Reverse Current @ 25°C 10µA
Operating and Storage Temperature Range -40°C TO 150°C
Country of Origin China
