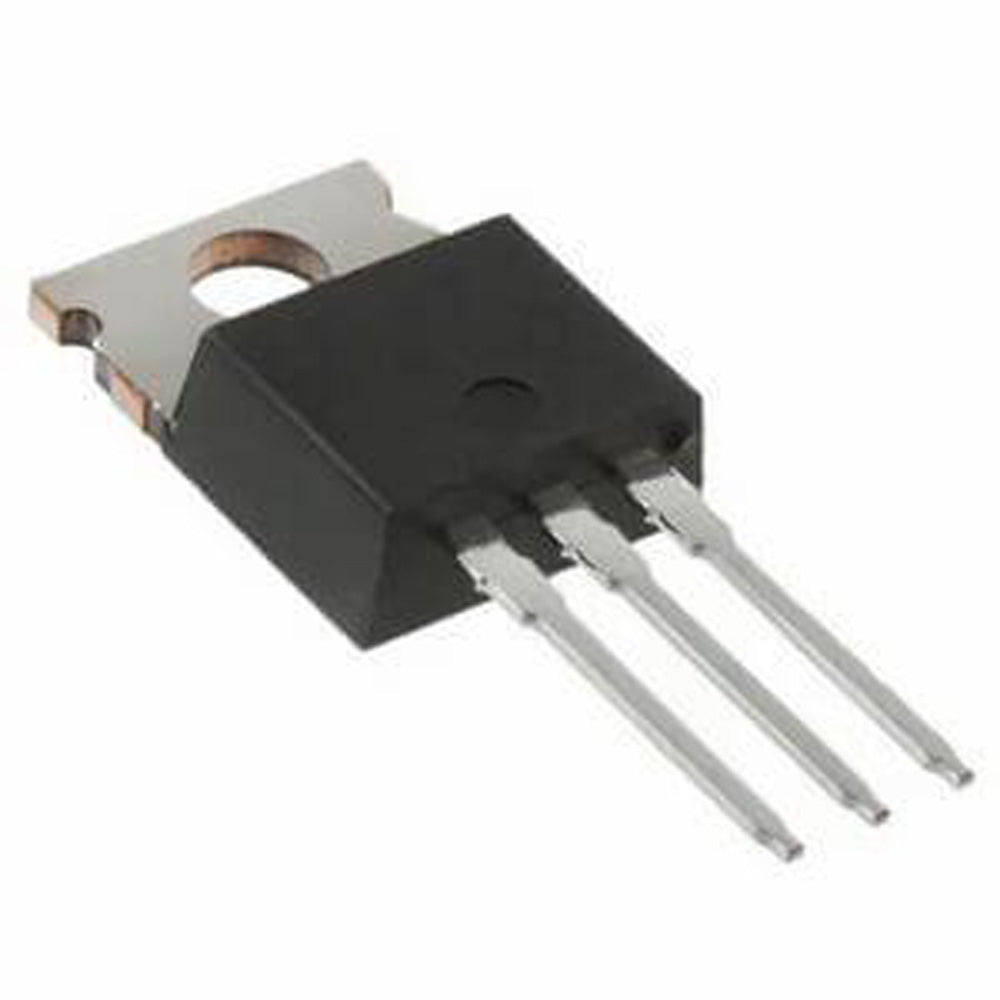

IRF9530 MOSFET 100V 14A P-Channel Power MOSFET TO-220 Package

IRF9530 MOSFET 100V 14A P-Channel Power MOSFET TO-220 Package

First Come First Serve Offer (T&C Apply )

31.36
0.00 31.36
Sale Sold out
Shipping calculated at checkout.

IRF9530 is a new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Features

  • Dynamic dV/dt rating
  • Repetitive avalanche rated
  • 175 °C operating temperature
  • Fast switching
  • Ease of paralleling
  • Simple drive requirements
  • Low on-resistance
  • Suitable for various AC/DC power conversion in switching mode operation.


Applications

  • Switching high power devices
  • Motor speed control
  • LED dimmer and flasher
  • Converters and inverters circuits
 Specification
Number of Channels  1 Channel
Transistor Polarity P-Channel
Drain-Source Breakdown Voltage -100 V
Continuous Drain Current -14 A
Drain-Source Resistance 0.20 Ohms
Gate-Source Voltage 20 V
Gate Charge 58 nC
Operating Temperature Range -55°C - 175 °C
Power Dissipation 50 W
Country of Origin China
