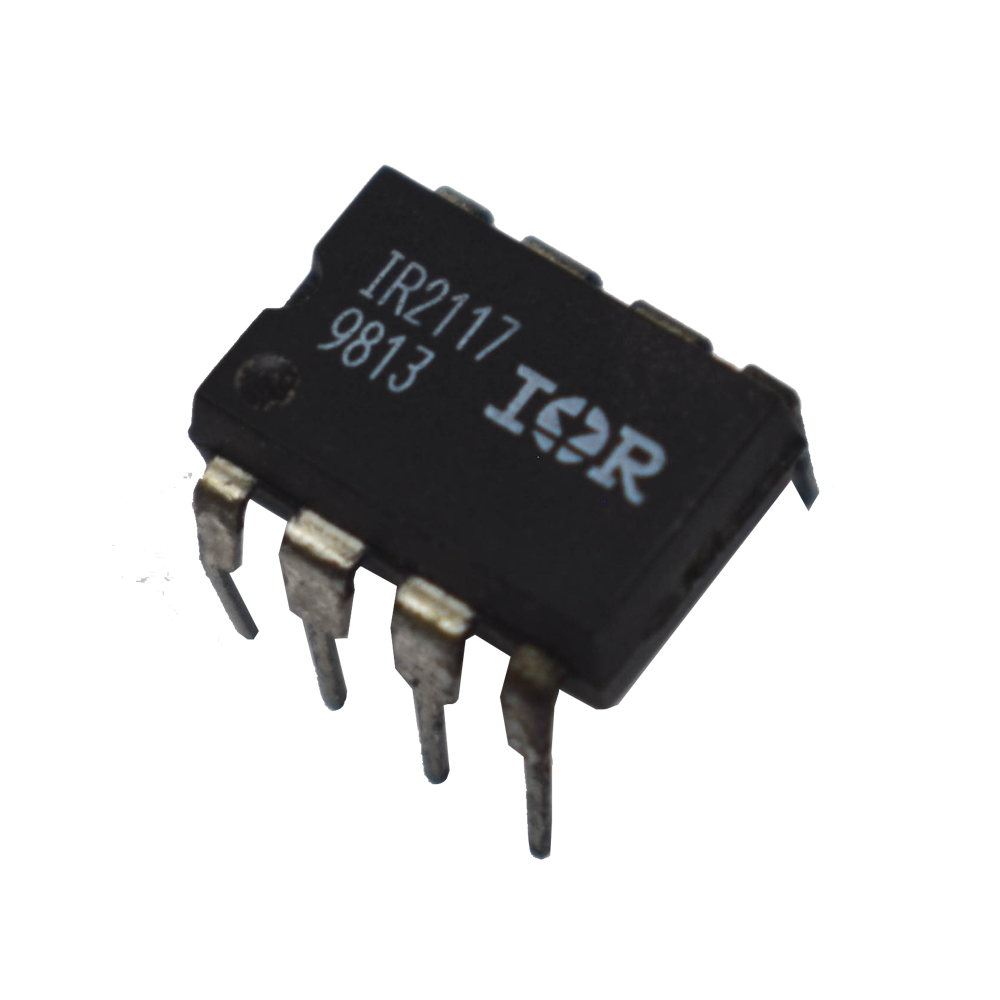

IR2117 Single Channel Driver

IR2117 Single Channel Driver

First Come First Serve Offer (T&C Apply )

90.16
0.00 90.16
Sale Sold out
Shipping calculated at checkout.

A high voltage, high speed power MOSFET and IGBT driver is the IR2117/IR2118(S). Ruggedized monolithic construction is made possible by proprietary HVIC and latch immune CMOS technology. The normal CMOS outputs are compatible with the logic input. A high pulse current buffer stage with minimal cross-conduction is a feature of the output driver. An N-channel power MOSFET or IGBT with a high side or low side configuration and a maximum operating voltage of 600 volts can be driven using the floating channel.

Features

  • Gate drive supply range from 10 to 20V
  • Under voltage lockout
  • CMOS Schmitt-triggered inputs with pull-down
  • Output in phase with input (IR2117) or out of phase with input (IR2118)
  • ‚Ä¢ Also available LEAD-FREE
Specification
Model IR2117
Type IC
Logic supply voltage -0.3 to 25 V
Logic input voltage -0.3 to 0.3 V
Junction temperature 150°C
Storage temperature -55 to 150°C
Lead temperature for soldering 300°C
Package power dissipation 1 W
Country of Origin China
