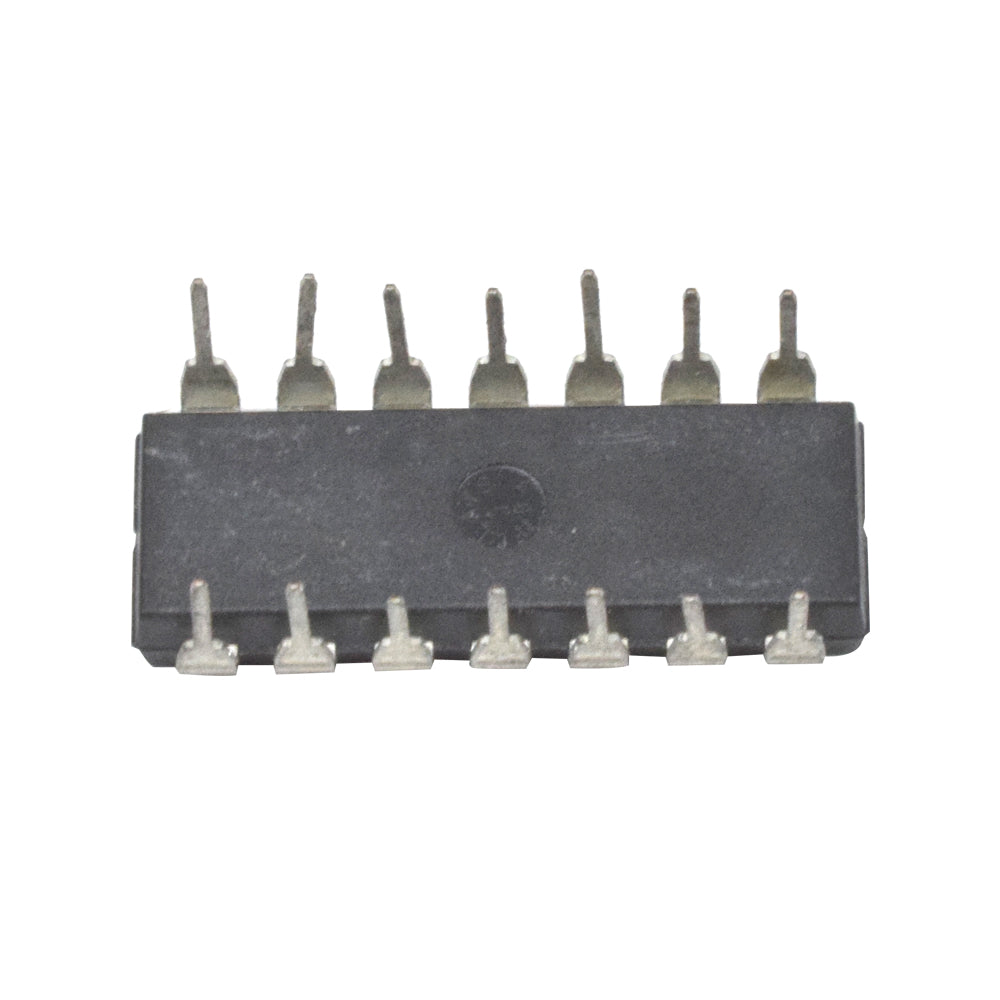

IR2110 MOSFET/IGBT Driver in DIP-14 Package

IR2110 MOSFET/IGBT Driver in DIP-14 Package

First Come First Serve Offer (T&C Apply )

136.00
0.00 136.00
Sale Sold out
Shipping calculated at checkout.
The IR2110 is a HIGH AND LOW-SIDE DRIVER in the DIP-14 Package. The IR2110 are power MOSFET and IGBT drivers with independent high and low-side referenced output channels that operate at high voltage and high speed. HVIC and latch-immune CMOS technologies, which are proprietary, enable ruggedized monolithic construction. Down to 3.3V logic, logic inputs are compatible with standard CMOS or LSTTL output. The output drivers have a high pulse current buffer stage designed to reduce driver cross-conduction. To facilitate use in high-frequency applications, propagation delays are matched.

    Features

    • Gate drive supply range from 10 to 20V
    • Under voltage lockout for both channels
    • 3.3V logic compatible
      Separate logic supply range from 3.3V to 20V
      Logic and power ground ±5V offset
    • CMOS Schmitt-triggered inputs with pull-down
    • Cycle-by-cycle edge-triggered shutdown logic
    • Matched propagation delay for both channels
    • Outputs in phase with inputs
    Specifications
    Model IR2110
    Brand
    		 International Rectifierer
    Mounting Type
    		 Through Hole
    V(offset)
    		 500V max.
    V out 10~20V
    Delay Matching 10ns max.
    Pitch
    		 2.5mm
    Number of pins 14
    Package DIP-14
    Country of Origin China
