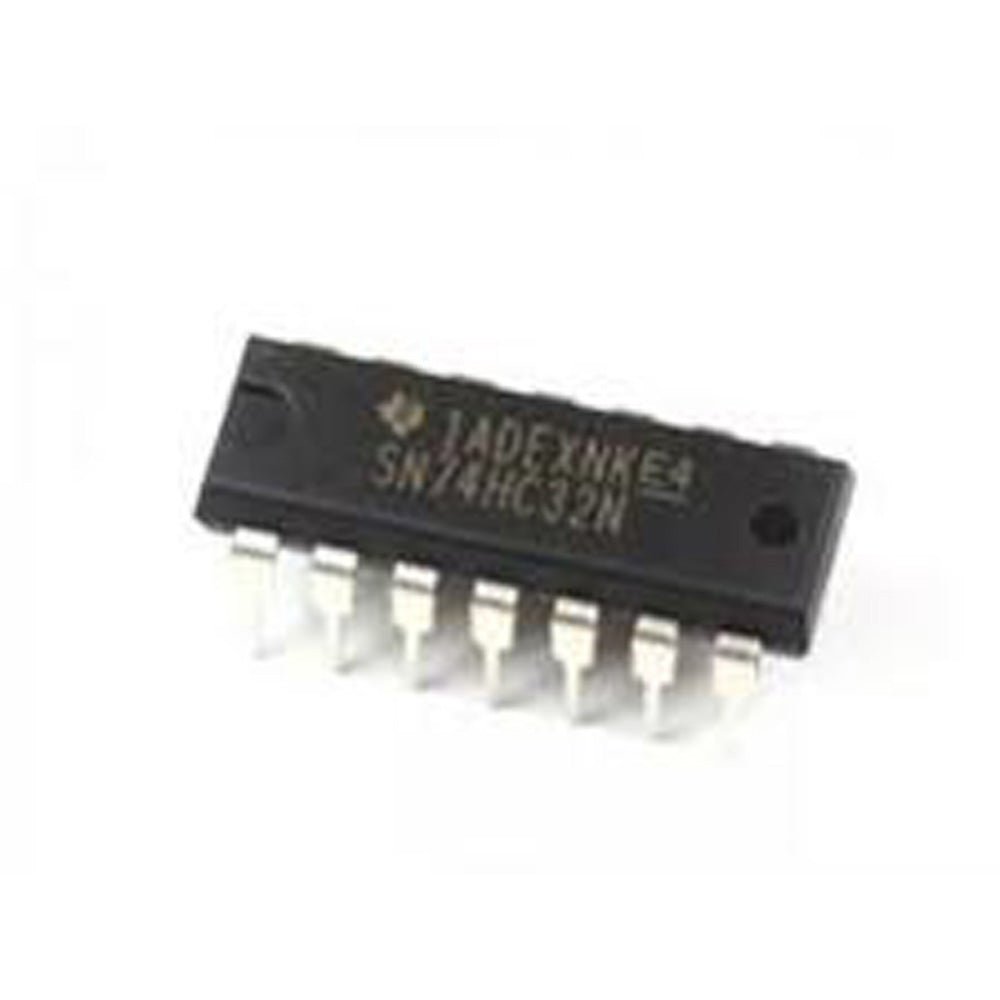

IC 74HC32 Quad 2 Input OR Gate IC (7432 IC) DIP-14 Package

IC 74HC32 Quad 2 Input OR Gate IC (7432 IC) DIP-14 Package

First Come First Serve Offer (T&C Apply )

10.78
0.00 10.78
Sale Sold out
Shipping calculated at checkout.

74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC32 is one of them. 74HC32 ICs contain 4 independent, 2 input OR gate. The Boolean expression can be written as Y = A+ B or Y = ( A’.B’ )’ for each OR gate.

Internal Structure of 74HC32 device,

The 74HC32 ICs have a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 8-9 ns. They can drive 10 LS-TTL loads at a time. This means that the single output pin of the OR gate can drive 10 TTL-based Low-Power Schottky( LS ) input pins. They can provide 4 mA on outputs at 5 V VCC. They allow inputs and outputs up to VCC. Recommended operating VCC is 5 V. Load Current can reach up to 25 mA per output pin and 50 mA for overall pins in between 0 V to VCC.

Specification:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−14
Input Current 1 uA
Powering Current 20 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 8 ns
Temperature Range -65 °C to +150 °C


Pin Configuration:

 Input Pins 1, 2, 4, 5, 9, 10, 12, 13
Inverting Output Pins 3, 6, 8, 11
Power Supply (VCC) 14
Ground (GND) 7
Country of Origin China


Application-

  • Toys
  • Musical Instruments
  • Medical Healthcare and Fitness
  • Grid Infrastructure
  • Electronic Point of Sale
  • Test and Measurement
  • Factory Automation and Control
  • Building Automation
