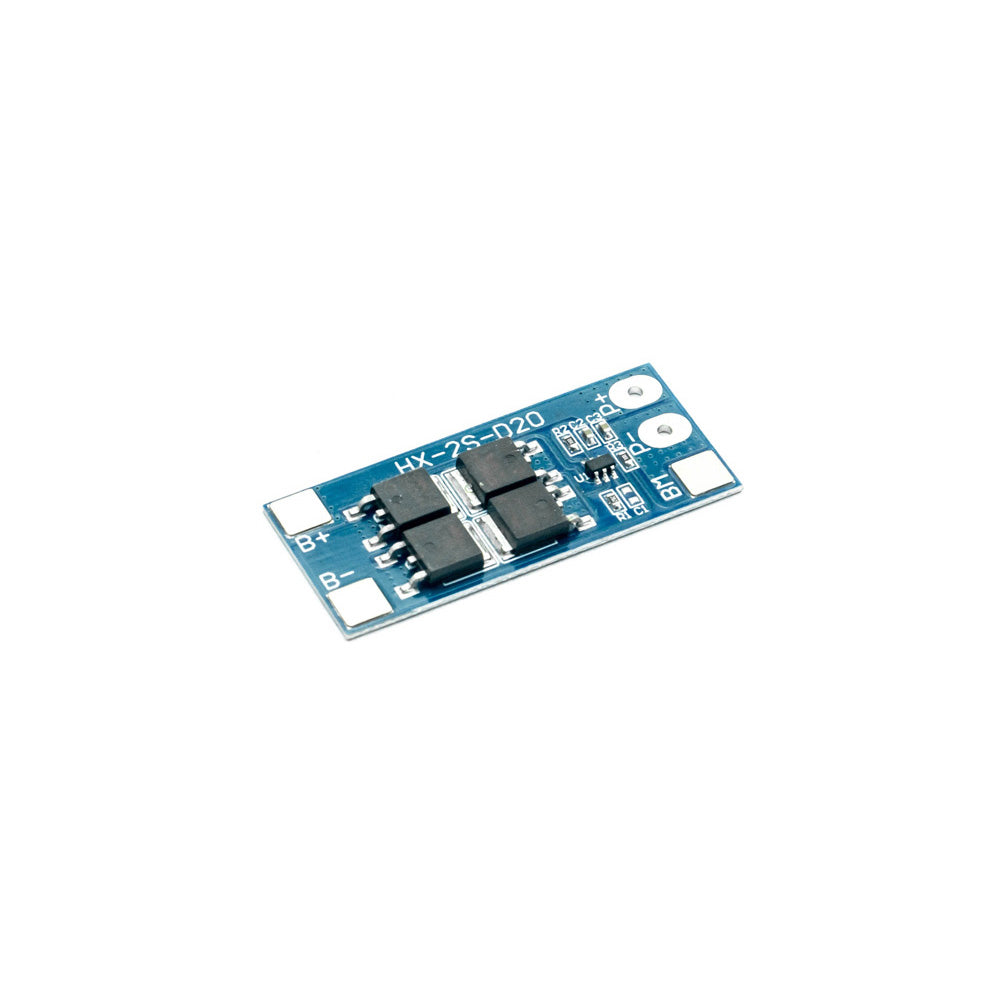

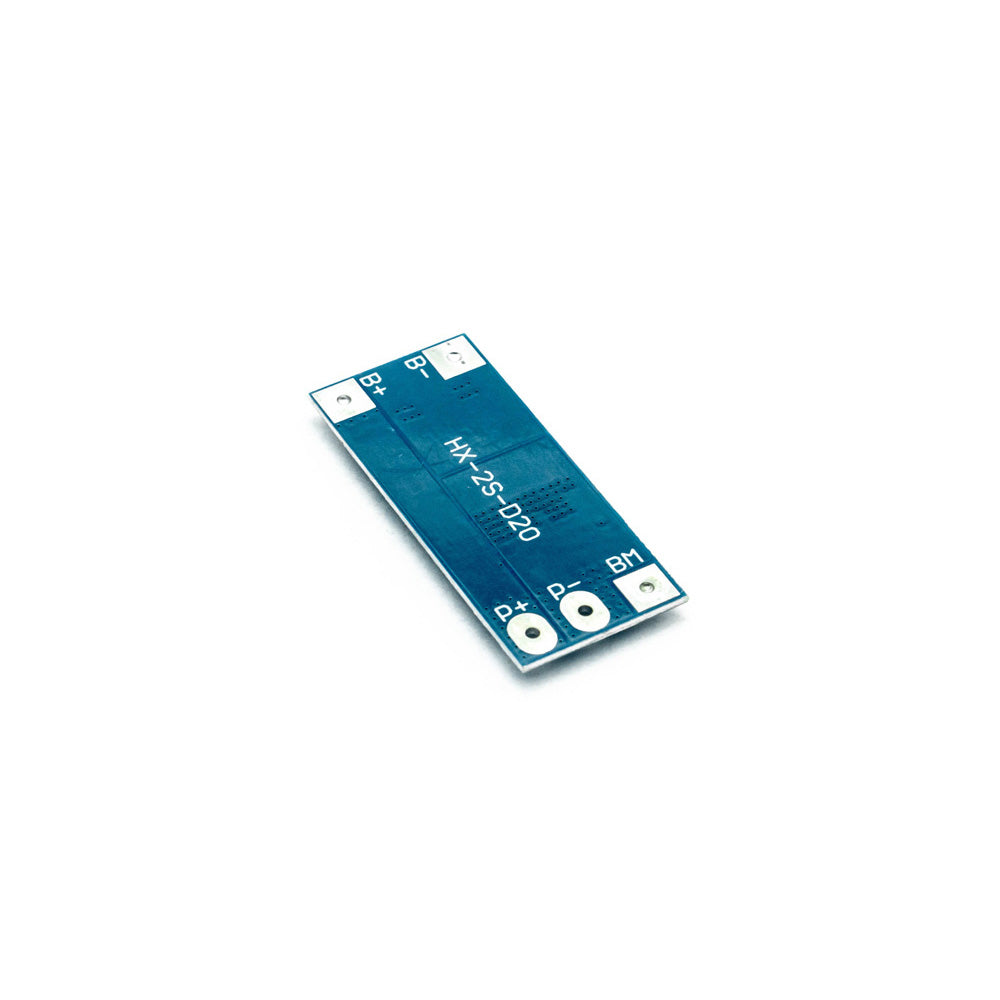

HX-2S-D20 7.4V BMS 2S 20A 18650 Lithium Battery Protection Board
HX-2S-D20 7.4V BMS 2S 20A 18650 Lithium Battery Protection Board
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The module has short-circuit, overcharge, and over-discharge protection. One of the charge controller's functions is to turn off the power supply to the batteries when at least one battery reaches its maximum capacity.
This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 20 A. If the maximum permissible supply voltage value is exceeded, the charge controller enters “protection” mode.
To restore the module, either reapply voltage to the BMS board's input or wait until the charge controller automatically disables protection. The module receives power from an external source. The module's voltage range is 7.4 to 8.4 V. A step-up voltage converter with a current limiter can be used to charge. Please note this module is not a charger.
Specification
|
Model |
HX-2S-D20 |
|
Over Charge Voltage Range |
4.25-4.35 V + 0.05 V |
|
Over Voltage Range |
2.5-3.0 V + 0.05 V |
|
Max. Operating Current |
13 A |
|
Max. Limiting Current |
20 A |
|
Charging Voltage |
8.4-9 V |
|
Quiescent Current |
Lower than 10 µA |
|
Internal Resistance |
<300 Ohm |
|
Operating Temperature |
-40°C to +50°C |
|
Size |
20.4x45.8x3.5mm |
| Country of Origin | China |
