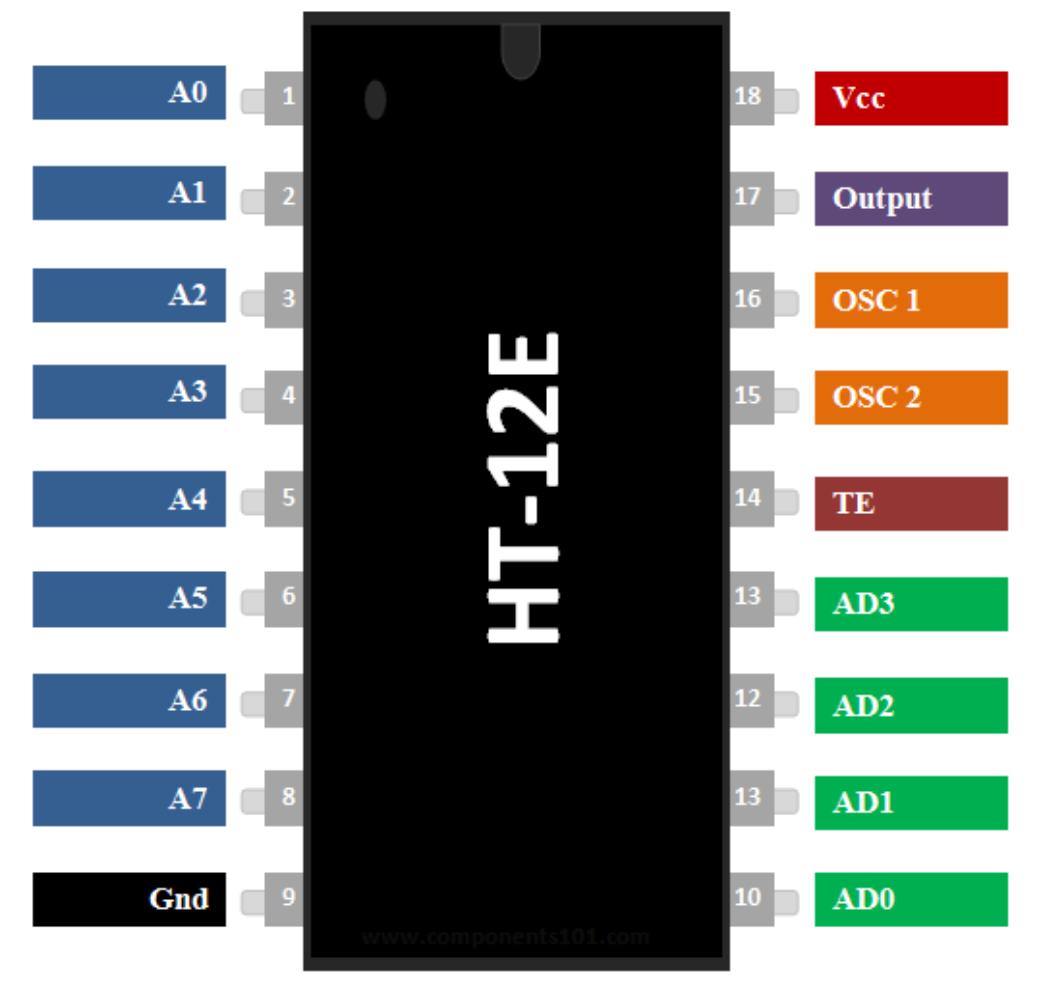

HT12E Encoder IC DIP18

HT12E Encoder IC DIP18

First Come First Serve Offer (T&C Apply )

89.00
129.00 89.00
Sale Sold out
Shipping calculated at checkout.
The HT12E is an encoder IC designed for remote control systems and data transmission applications. This IC works seamlessly with its counterpart decoder, the HT12D. The HT12E is packaged in an 18-pin Dual In-line Package (DIP), which makes it easy to handle and integrate into various electronic circuits.

Features:

Operating Voltage Range: The HT12E operates within a voltage range of 2.4V to 12V, providing flexibility in different power supply configurations.

Low Power Consumption: It is designed to consume minimal power, making it suitable for battery-powered applications.

18-Pin DIP Package: The Dual In-line Package (DIP) with 18 pins facilitates easy handling and soldering on PCBs.

12-Bit Encoding The IC can encode 12 bits of information, consisting of 8 address bits and 4 data bits.

External Resistor: An external resistor sets the oscillation frequency, which can be adjusted to meet specific application requirements.

Transmission Enable Pin: The TE (Transmission Enable) pin is used to initiate the encoding and transmission process.

Applications:

Remote Control Systems: Commonly used in remote control systems for various household appliances, such as fans, lights, and garage door openers.

Security Systems: Utilized in wireless security systems for transmitting signals from sensors to alarm units.

Features

  • Operating voltage 2.4V~12V.
  • Low power and high noise immunity CMOS technology.
  • Low standby current: 0.1A (Typ.) at VDD=5V.
  • Data code has a positive polarity.
  • HT12A with a 38kHz carrier for the infrared transmission medium.
  • Minimum transmission word Four words for the HT12E.
  • The built-in oscillator needs only a 5% resistor.
  • Minimal external components.
  • 12-bit Encoder IC to be used with HT12D.
  • Encoded data has 4 Data bits and 8 Address bits.
  • Commonly used for RF and IR wireless transmission.
  • Wide supply voltage ranges from 2.4V to 12V, typically 5V is used.
  • Low standby current of 0.1uA at Vcc=5V.
  • Available in 16-pin DIP, 20-pin SOP.

Specification

  • Operating Voltage Range: 2.4 V to 12 V
  • Technology: CMOS
  • Package: DIP−18
  • Output Current: 1.6 mA
  • Powering Current: 0.3 mA
  • Temperature Range -50 °C - 125 °C

Applications

  • Burglar alarm system
  • Smoke and fire alarm system
  • Garage door controllers
  • Car door controllers
  • Car alarm system
  • Security system
  • Cordless telephones
  • Other remote-control systems

Physical Attributes

  • Length * Width * Height (mm): 19 x 8 x 7
  • Weight (gm) : 1

Documentation

Package Includes

  • 1 x HT12E Encoder IC DIP18
