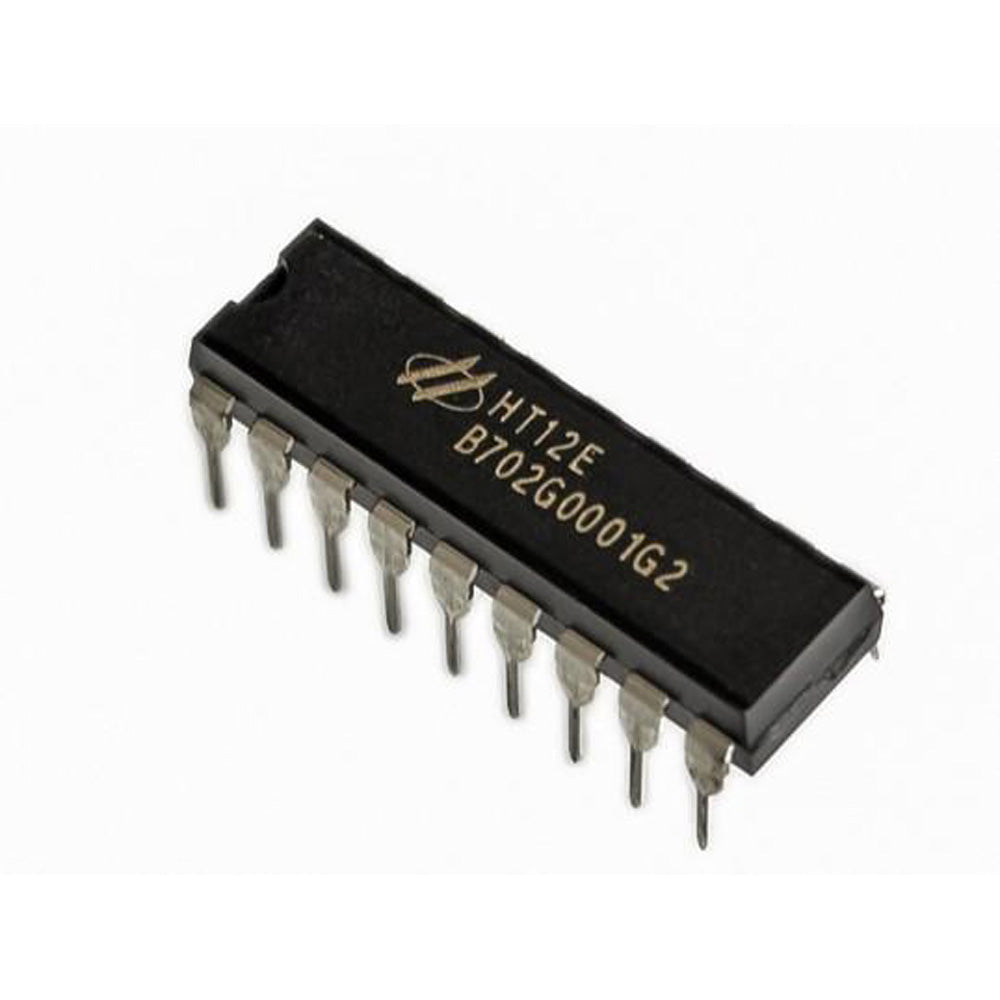

HT12E 12-Bit Encoder IC (HT12E IC) DIP-18 Package
HT12E 12-Bit Encoder IC (HT12E IC) DIP-18 Package
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
HT12E is a CMOS technology-based 12-bit Encoder. It is generally used with RF communication system applications. 12-bit Encoders can encode up to 2^12 two-state data which is transmitted via RF transmitter to receiver. This encoded data consists of 8 address bits and 4 data bits. For proper communication, HT12E is should be used with HT12D in the same address and data formate. This device consists of one data output pin that transmits the encoded data from the RF transmitter channel. Two oscillators pin (OSC1, OSC2) can decide the oscillation frequency of the Encoder by using an oscillator resistor. Active Low Trigger Enable pin (TE’) can trigger the transmission or vice versa.
The HT12E ICs have an operating range of VCC from 2.4 V to 12 V. Maximum current consumption is 0.3 mA through Icc and output sink and source current is 1.6 mA. The recommended operating voltage is 5 V.
Pin Configuration
| Address Pin (A[0:7]) | 1, 2, 3, 4, 5, 6, 7, 8 |
| Data Pin (A[8:11]) | 10, 11, 12, 13 |
| Oscillator I/O Pin (OSC1, OSC2) | 16, 15 |
| Valid Transmission Pin (TE') | 14 |
| Data Input Pin (DOUT) | 17 |
| Power Supply (VDD) | 18 |
| Ground (VSS) | 9 |
Features
- Operating voltage 2.4V~12V.
- Low power and high noise immunity CMOS technology.
- Low standby current: 0.1A (Typ.) at VDD=5V.
- Data code has a positive polarity.
- HT12A with a 38kHz carrier for the infrared transmission medium.
- Minimum transmission word Four words for the HT12E.
- The built-in oscillator needs only a 5% resistor.
- Minimal external components.
- 12-bit Encoder IC to be used with HT12D
- Encoded data has 4 Data bits and 8 Address bits
- Commonly used for RF and IR wireless transmission
- Wide supply voltage ranges from 2.4V to 12V, typically 5V is used
- Low standby current of 0.1uA at Vcc=5V
- Available in 16-pin DIP, 20-pin SOP
Applications
- Burglar alarm system.
- Smoke and fire alarm system.
- Garage door controllers.
- Car door controllers.
- Car alarm system.
- Security system.
- Cordless telephones.
- Other remote-control systems.
Specification
| Operating Voltage Range | 2.4 V to 12 V |
| Technology | CMOS |
| Package | DIP−18 |
| Output Current | 1.6 mA |
| Powering Current | 0.3 mA |
| Temperature Range | -50 °C - 125 °C |
Pin Description
| Pin 1 - 8 | These are the 8-bit address bits, which are used to protect your data. We should set the bits in the same pattern on Encoder and Decoder IC to pair them |
| Pin 9 | Connected to the Ground of the circuit |
| Pin 10 - 13 | These four pins are used to send data, the data encoded here will be decoded on HT12D IC sharing the same address bits |
| Pin 14 | This pin has to be connected to the ground (0V) to enable the Transmission |
| Pin 15 & 16 | The IC has a built-in oscillator. This oscillator can be used by connecting these two pins through a 1 M Resistor |
| Pin 17 | The Encoded 12-bit output data can be obtained from this pin |
| Pin 18 | This pin powers the IC, typically +5 V is used. Can range from 2.4 V to 12 V |
| Country of Origin | China |
