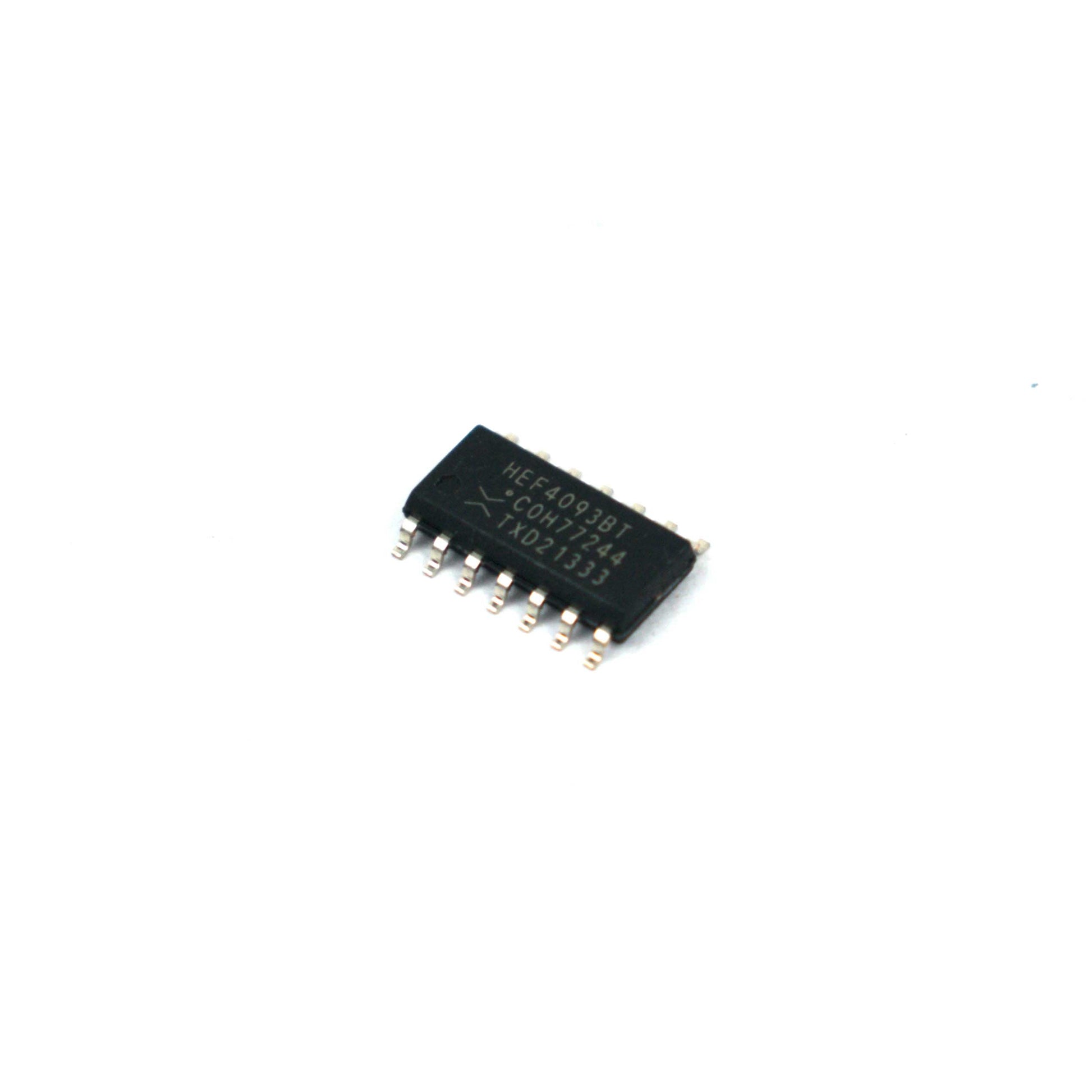

HEF4093BT NEXPERIA Quad 2-Input NAND Gate SO14

HEF4093BT NEXPERIA Quad 2-Input NAND Gate SO14

First Come First Serve Offer (T&C Apply )

15.68
0.00 15.68
Sale Sold out
Shipping calculated at checkout.

HEF4093BT NEXPERIA is a quad 2-input NAND gate with Schmitt trigger input. It is a surface mount(SMD) active component with plastic small outline package; 14 leads; body width 3.9mm SO14. Clamp diodes are used as inputs. This allows for the use of current-limiting resistors to interface inputs to voltages greater than VDD. Schmitt trigger inputs convert jitter-free, slowly changing input signals into sharply defined output signals.

Datasheet

Features
  • Schmitt trigger input discrimination
  • Fully static operation
  • Wide supply voltage range from 3.0 to 15.0 V
  • CMOS low power dissipation
  • High noise immunity
  • Standardized symmetrical output characteristics
  • Complies with JEDEC standard JESD 13-B

Applications

  • Wave and pulse shapers
  • Astable Multivibrators
  • Monostable Multivibrators
Specifications
 Model HEF4093BT
 Brand NEXPERIA
 Mounting Type SMD
 No. of Pin 14
 Supply Voltage (VCC) 3-15V
 Ambient Temperature Range -40~125°C
 Package SO14
 Input clamping current ±10mA
Country of Origin China
