HC-06 4 Pin Bluetooth Module Master and Slave No Button Compatible Economical Version

HC-06 4 Pin Bluetooth Module Master and Slave No Button Compatible Economical Version

First Come First Serve Offer (T&C Apply )

299.00
399.00 299.00
Sale Sold out
Shipping calculated at checkout.

HC-06 4 Pin Bluetooth Module

HC-06 is the popular Bluetooth module. This HC06 module is slave mode only. It’s very easy to add wireless serial connectivity for your device with this module. Examples for Arduino and other boards are available. Once you pair with other Bluetooth devices you work like with normal UART to exchange data.

This module has built-in 3.3V voltage regulator and helps to break out the important pins (Vcc, Gnd, Txd, Rxd). Based on CSR BC4 chip, Bluetooth V2.0 + EDR. You can set the baud rate, name and pair password by AT commands when there is no Bluetooth connection. This module is a slave- it can be paired with Computer- Bluetooth master- mobile phone- PDA- PSP and so on.

Specifications

  • Item Type: HC Series Module
  • Voltage Rating (VDC): 3.3
  • Switch/Button: No
  • Model: HC-06 (Master and Slave)

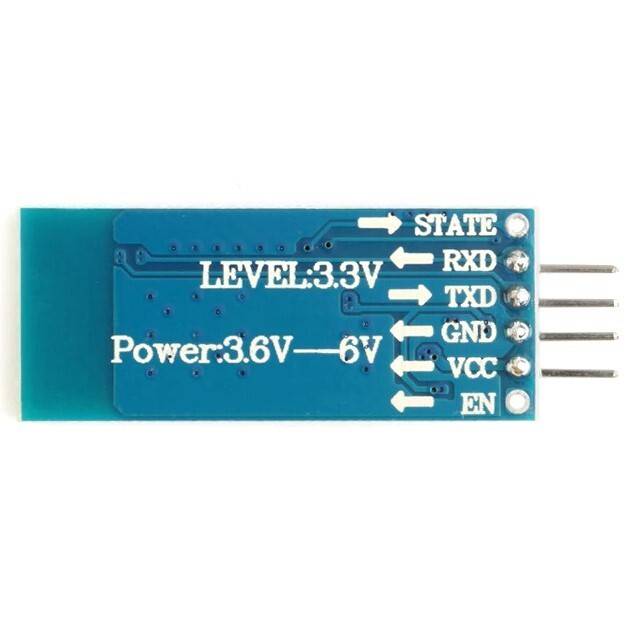

  • Interface: VCC - GND - TXD - RXD
  • Nominal Operating Voltage: 3.3V DC
  • Input Voltage Range: 3.6V to 6V (Never over 7V)
  • Input current: 30mA (unpaired), 10mA (paired)
  • Effective Distance: 10M (open area)
  • Communication Mode: 8 data bits / 1 stop bit / without parity

Features

  • Bases at CSR BC04 Bluetooth technology
  • With built-in 2.4GHz PCB antenna
  • Bluetooth class: 2 power level
  • Range test: 10 meters
  • Operating voltage: 3.3V to 6V DC
  • Operating current in pairing: 30~40mA
  • Operating current in communication: 8mA
  • Interface via UART, default baud rate: 9600 bps
  • Operating temperature range: -25°C – +75°C
  • Dimensions: 39mm × 16mm × 6mm

Applications :

  • Wireless Data Transmission: Send sensor data from microcontroller to mobile devices.

  • Exchange data between Bluetooth-enabled devices: (e.g., Arduino to smartphone).

  • Home Automation: Control home appliances (e.g., lights, fans) wirelessly via smartphone.

  • Bluetooth Robots: Control a robot wirelessly using a mobile app.

  • Wireless Control Systems: Remotely control devices like motors and sensors using Bluetooth.

  • PC to Microcontroller Communication: Use the HC-06 to wirelessly communicate between a PC and an Arduino.

  • Sensor Monitoring: Send sensor data (e.g., temperature, humidity) to a mobile app for monitoring.

Integration with Arduino

TTL HC06 Bluetooth Module

Sample Code



Integration with Raspberry Pi

TTL HC06 Bluetooth Module



Sample Code

Physical Attributes

  • L * W * H in mm : 40 * 16.5 * 7
  • Weight in gm: 5

Package Includes

  • 1 x HC-06 4 Pin Bluetooth Module Master and Slave No Button Compatible Economical Version
