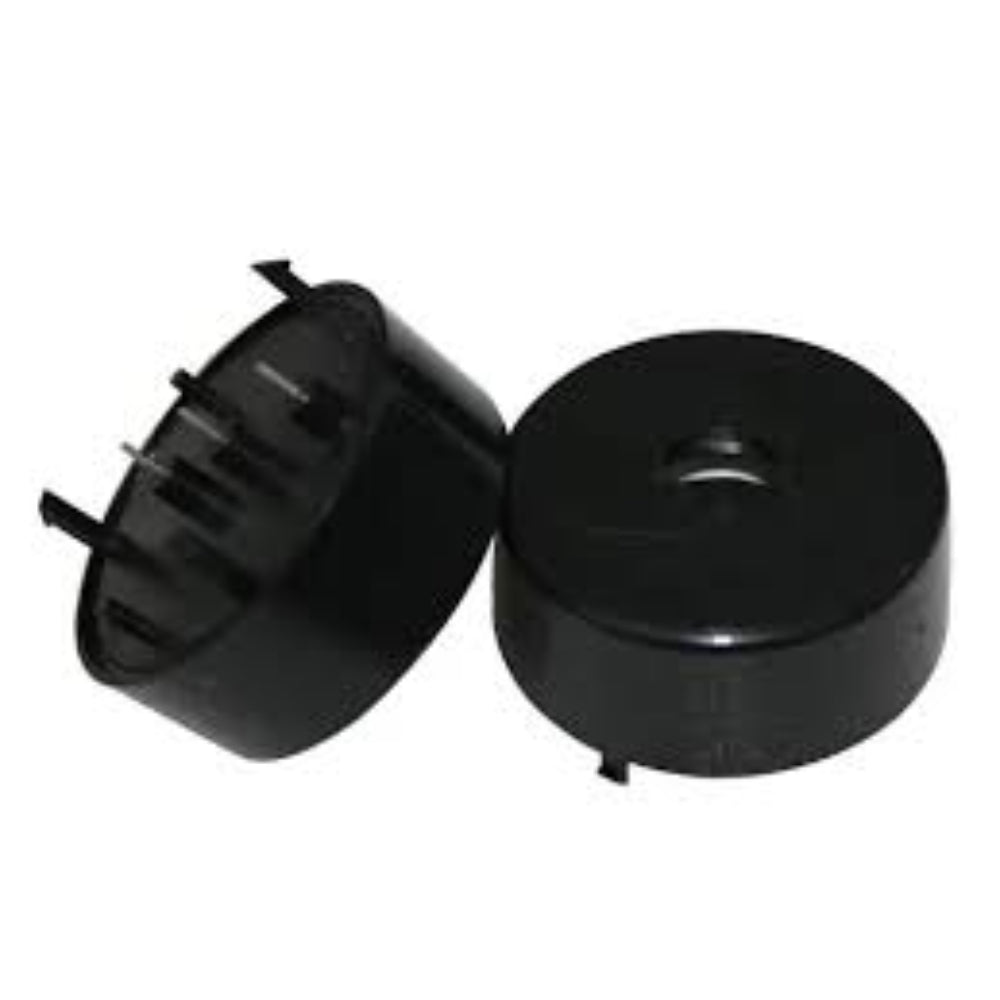

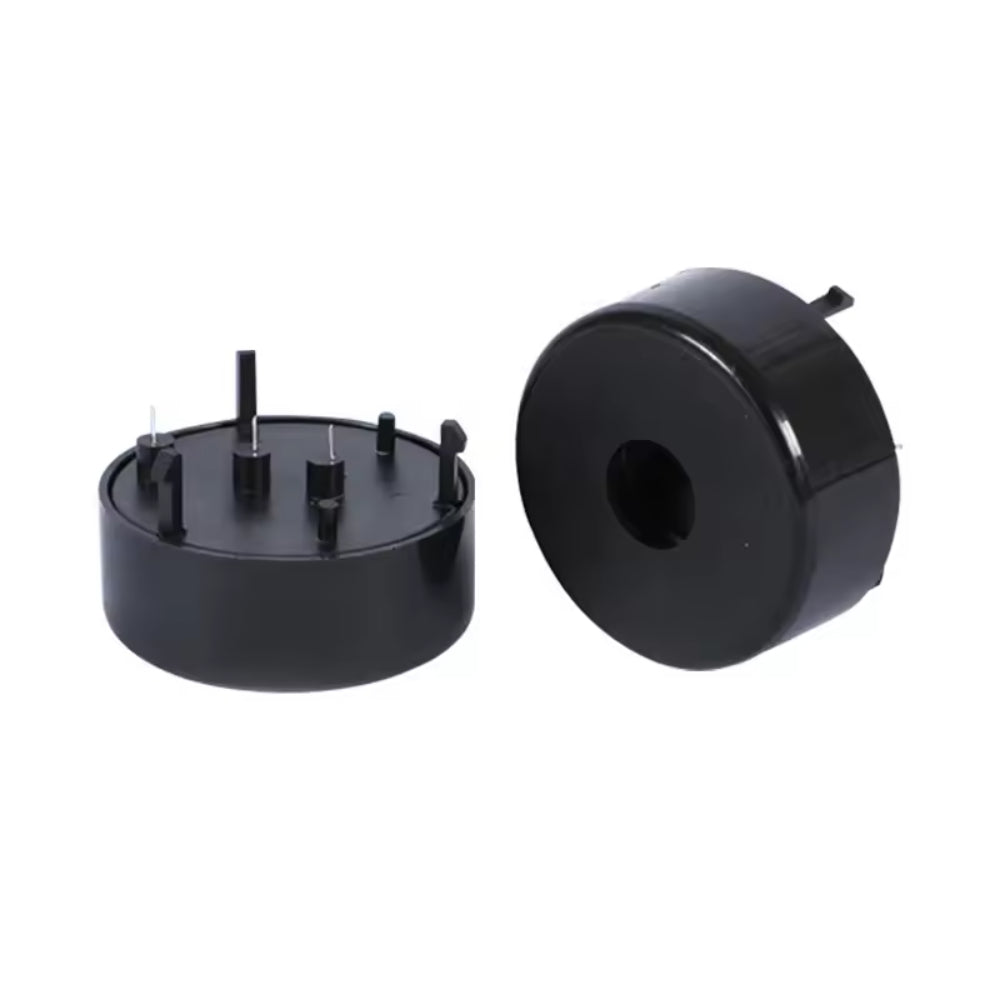

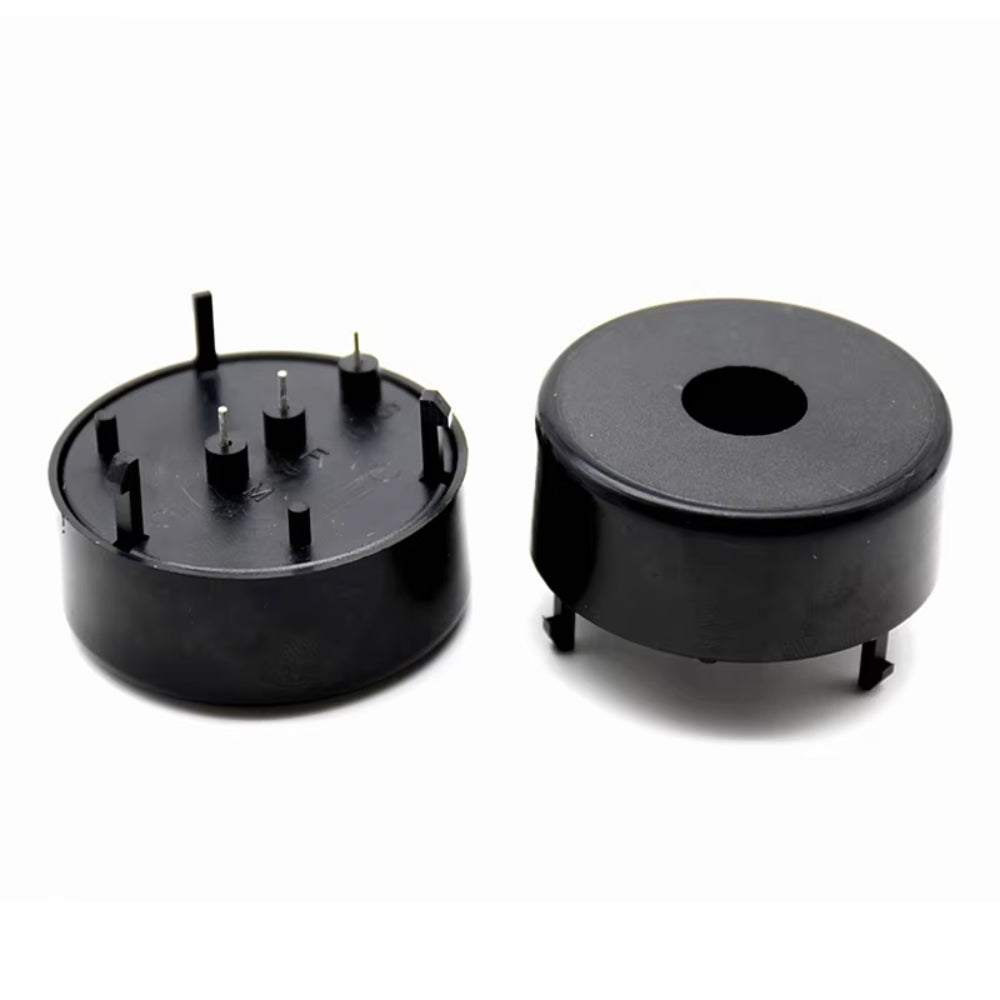

External Driven Passive Mini Piezo Smoke Alarm Buzzer 3 Pin 9V Piezo Ceramic Buzzer 40mm Dia

External Driven Passive Mini Piezo Smoke Alarm Buzzer 3 Pin 9V Piezo Ceramic Buzzer 40mm Dia

First Come First Serve Offer (T&C Apply )

33.32
39.00 33.32
Sale Sold out
Shipping calculated at checkout.

External Driven Passive Mini Piezo Smoke Alarm Buzzer

The External Driven Passive Mini Piezo Smoke Alarm Buzzer is a versatile and efficient sound-producing component designed for smoke alarms and similar applications. With a compact 40mm diameter, this 3-pin buzzer is lightweight yet robust, making it an ideal choice for space-constrained designs.

Operating on a 9V power supply, this piezo ceramic buzzer delivers a loud, clear sound output, ensuring reliable audio alerts in critical situations. As a passive component, it requires an external driving circuit for operation, giving developers the flexibility to customize sound patterns and frequencies according to their application needs.

Crafted from high-quality materials, the buzzer ensures durability and consistent performance over time. Its ease of integration makes it suitable for a wide range of projects, including smoke detectors, security systems, and DIY electronics. This buzzer combines compact design, reliability, and high sound output, making it a trusted choice for safety and alert systems.

Technical Details

  • Rated Voltage: 9VDC
  • Operating Voltage Range: 6–15VDC
  • Max Rated Current: 60mA at 9VDC
  • Sound Pressure Level: 94dB at 9VDC (measured at 30cm)
  • Resonant Frequency: 3.2 ± 0.5kHz
  • Operating Temperature: -20°C to 80°C
  • Weight: 13g

Features

  • Wide operating voltage range: 6–15VDC
  • High sound pressure level: 94dB at 9VDC
  • Compact and lightweight design (13g)
  • Stable resonant frequency: 3.2 ± 0.5kHz
  • Durable construction for a wide operating temperature range (-20°C to 80°C)
  • Low power consumption with a maximum current of 60mA

Applications :

  • Smoke Detectors: Used in smoke alarms to provide audible alerts in case of smoke detection.
  • Security Systems: Ideal for use in security alarms to signal unauthorized access or events.
  • Emergency Warning Systems: Incorporated in emergency alarms to alert individuals to hazardous situations.
  • Home Automation: Can be used in home automation systems to trigger alarms or notifications based on specific conditions.
  • Industrial Applications: Used in industrial control systems for hazard detection or to indicate operational issues.
  • Automotive Warning Systems: Applied in vehicles for signaling warning messages or malfunction alerts.

Drawing

External Driven Passive Mini Piezo Smoke Alarm Buzzer 3 Pin 9V Piezo Ceramic Buzzer 40mm Dia

Package Includes

  • 1 x External Driven Passive Mini Piezo Smoke Alarm Buzzer 3 Pin 9V Piezo Ceramic Buzzer 40mm Dia
