ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch

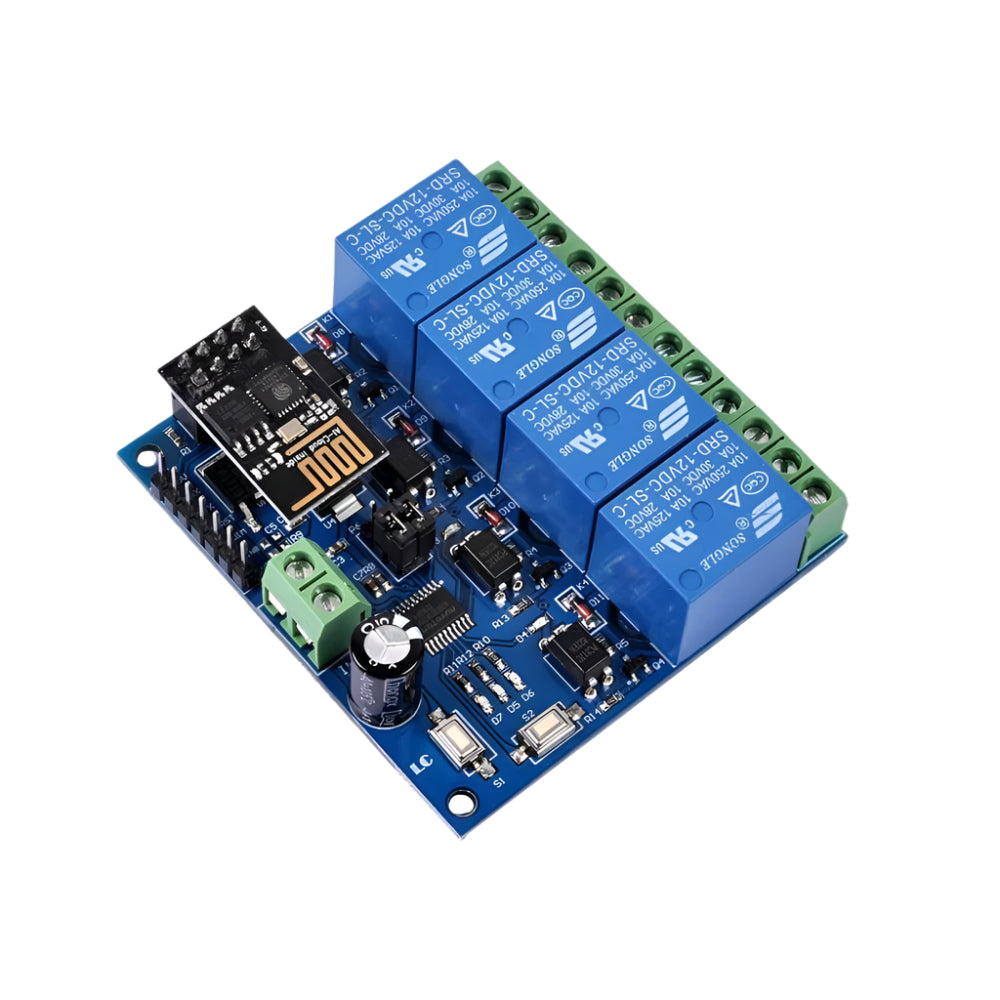

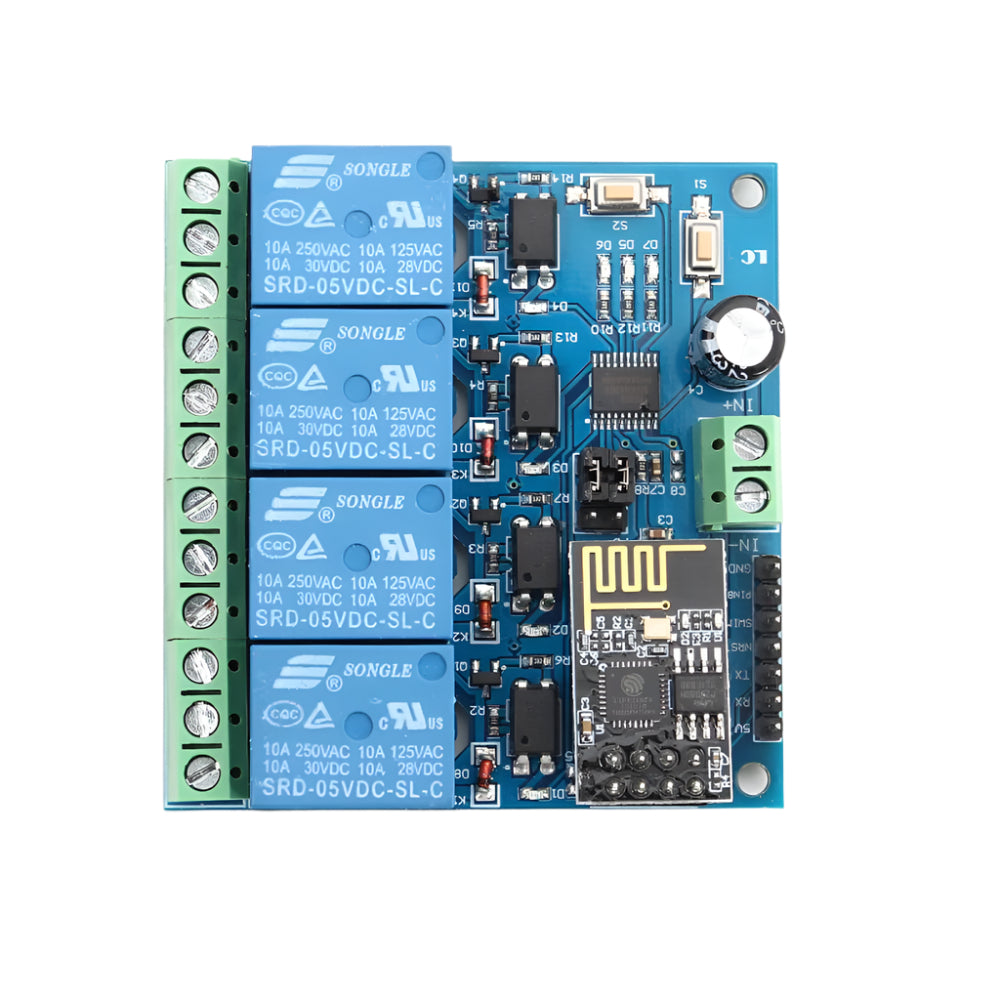

ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch is 4 channel WIFI relay module carrying an ESP8266 WIFI module and mature 8 bit MCU, with a Professional switching power supply circuit.It could control the relay by Android phone APP within the local area network (LAN). It is easy to set up.Specifications
- Model Type: WiFi Relay Module
- No. of Channels: 4
- Operating Voltage (VDC): 5
- Operating Temperature (°C): 40℃~85℃
- Operating Humidity (%): 0%~95%
- Length (mm): 60
- Width (mm): 63
- Height (mm): 20
- Weight (g): 19
Features
- Integrated design
- APP remote control
- DC 5V work power supply
- Onboard high-quality MCU and ESP8266 WIFI module
- Supports Two Work Modes:
- Mode 1: Cellphone connects directly to the WiFi module
- Mode 2: Cellphone and WiFi module connect to a router
- Additional feature: USB Relay Module (Without ESP8266)
- Transmission distance:
- Open environment: Up to 100 meters
- Router connection: Distance depends on router signal
- Uses Smartconfig for WiFi setup with memory retention
- Optocoupler isolated output for safety and reliability
- Onboard Songle relay: 10A/250V AC, 10A/30V DC
- Diode protection and fast response time
- PCB complies with RoHS standards
- Onboard relay LED, mode option, and status indicators
- Reserved UART debug interface and MCU download port
Applications :
- IoT Projects: Integrate with cloud services for remote monitoring and automation.
- Industrial Automation: Use for wireless control of machines, motors, and other electrical equipment.
- Smart Lighting Systems: Automate lights and other electrical fixtures based on schedules or sensor inputs.
- Remote Switching: Control devices such as fans, pumps, or air conditioners from anywhere.
- Security Systems: Integrate with alarms, door locks, and surveillance systems for enhanced security.

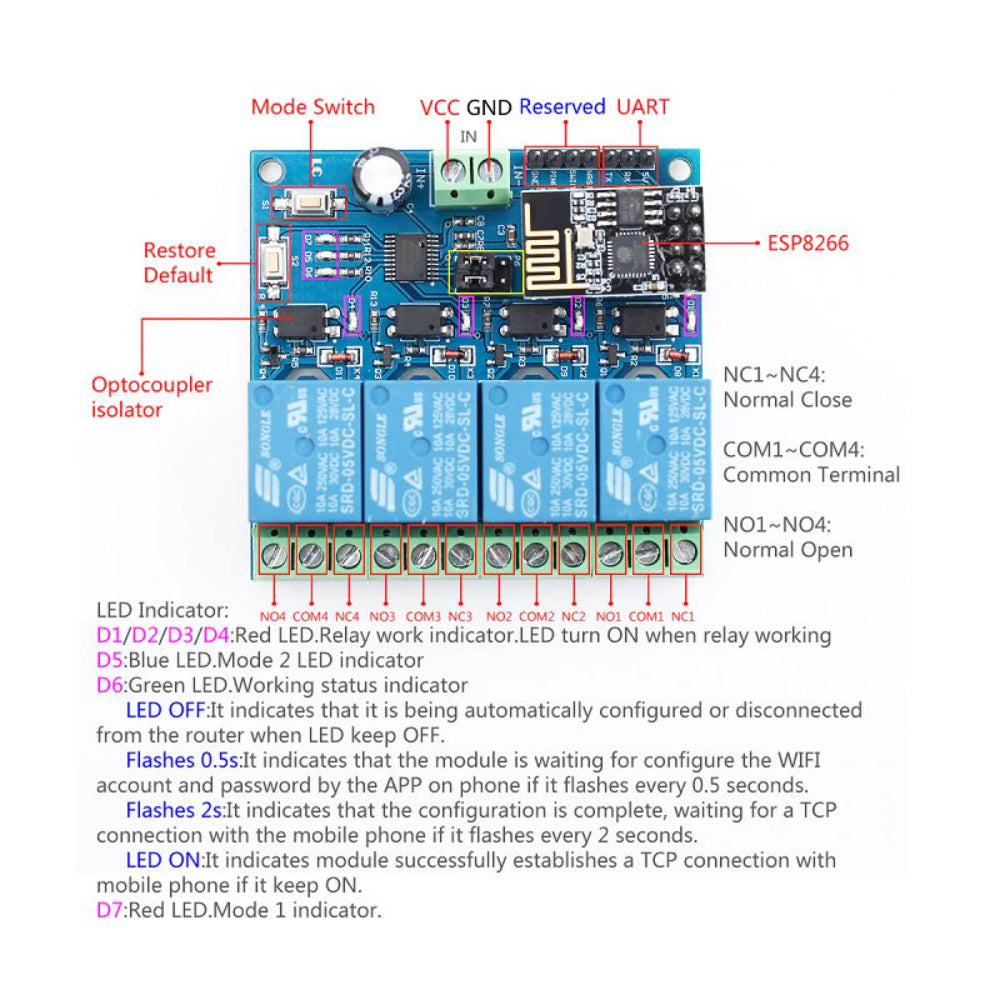

Wiring Diagram
Physical Attributes

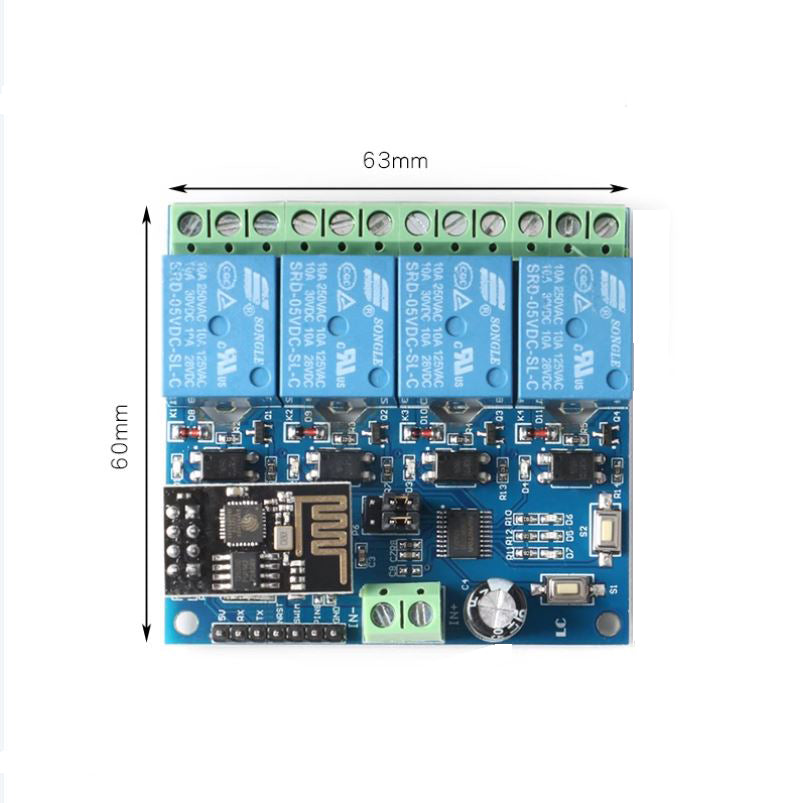

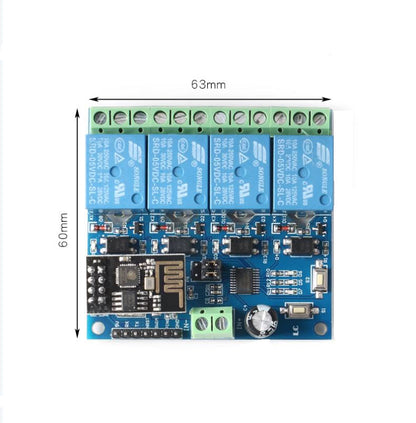

- Dimensions(mm): 60 x 63 x 20
- Weight: 19 g
Package Includes
- 1 x ESP8266 ESP-01 5V 4-Channels WiFi Relay Module for Home Remote Control Switch
